Hardware

Selected Hardware Compatible with Max

Lemur (JazzMutant)

Eobody (Eowave)

Eobody Wireless (Eowave)

OEM Universal Board (Eowave)

MidiTron (Eroktronix)

Ms. Pinky (Baby Talk FX)

Make Controller Kit (MakingThings)

Sensors (Electrotap)

Lemur	Multitouch controller for live performance applications from JazzMutant
Sale Price! + 2nd day shipping and $10 handling (insurance) fee	A controller for live performance applications which combines distinctive industrial design, a brilliant modular graphic interface concept, and a proprietary touchscreen technology that can track multiple fingers simultaneously. As a performance interface, the Lemur is immediately appealing. You touch colorful rounded interface objects on the 12″ LCD display to control your computer in any way you can imagine. The Lemur’s elegant simplicity is made possible by its sophisticated graphics processor and proprietary touchscreen interface that tracks multiple fingers simultaneously. Jazzmutant released a free software package for the Lemur called ‘Mu’ in March 2010. Thanks to Max for Live, Mu offers the tightest integration between a controller and Ableton Live yet seen. Mu also features fully automatic configuration and allows dynamic updating of Lemur templates through Max. Get complete details on JazzMutant’s Lemur Product Page. Find articles and posts related to the Lemur.
Important Notes: Read the warranty and return policies before ordering. Only available to US and Canadian customers.
Eobody	Eobody2 is an analog-to-MIDI device from Eowave
Price: Click Here To Learn About Free Shipping!	Plug & play USB interface which is plugged directly into your computer, so you can use sensors with your software sequencer. The new version can also be used without a computer via the MIDI output. High-speed USB significantly reduces the latency. And 12-bit resolution avoids ‘scale effects’ which allows a nearly linear conversion curve. Sensorboxes can be plugged directly into your computer or into a USB hub (if you want more than one). It is a versatile solution for musicians and performers. You can trigger and modulate sounds and videos, and create new sensor-based instruments with no computer programming background. The Eobody2 sensor system is not only limited to musicians and performers. Other applications include healthcare apps, car simulators, fireworks triggering, robotics and step motors control. With the Eobody2 sensor system, all these application types will be directly accessible with the appropriate module. Get complete details on Eowave’s Eobody Product Page. Find articles and posts related to the Eobody.
Important Notes: The Eobody is USB bus-powered. It does not come with a power supply. Only available to US and Canadian customers.
Eobody Wireless	Eobody2 HF is a wireless sensor interface from Eowave
Price: Click Here To Learn About Free Shipping!	HF stands for “high frequencies”. This interface is composed of 1 transmitter and 1 receiver. The transmitter enables you to connect 16 sensors which can easily be placed on dancers or inside objects or instruments. The receiver is directly connected to the computer via USB. The architecture of the system is 1 transmitter for 1 receiver. It is possible to connect 16 receivers in the same area for a total of 16×16 sensor inputs. The distance range between the transmitter and the receiver is 30 meters indoor to more than 100 meters outdoor. If you only have jack sensors, you will need to adapt your sensors with a jack to 3-pin adapter. Most of the Eowave sensors are also available with 3-pin connectors. However, the Electrotap sensors (sold by Cycling ‘74) need to be altered. If you are skilled in altering sensors, you can use a products like these to make a 3-pin connector for the sensors you already have. @CONNECTOR,PIN,FEM,POST TIN CONN,HOUSING,3 POS,.100,SINGLE Good source for a variety of supplies Get complete details on Eowave’s Eobody Wireless Product Page. Find articles and posts related to the Eobody.
Important Notes: Soft pouch not included. Includes one rechargeable battery. Sensors use 3-pin connectors (0.100″ rectangular connector).
OEM Universal Board	Pre-programmed analog/digital USB converter with 16 digital I/O and 13 analog inputs from Eowave
Price: Click Here To Learn About Free Shipping!	The board is a pre-programmed analog/digital USB converter with 16 digital I/O and 13 analog inputs. It does not require any programming skills to be used. This feature makes it a unique product on the market. It has been programmed to be as versatile as possible, but if you need other specifications, it can easily be reprogrammed. The board enables you to connect sensors directly to a computer via hispeed USB, with no programming or soldering required. Recognized by your OS as a USB MIDI device, it is easily configurable and compatible with any MIDI software. The versatile firmware makes the Eobody2 Universal Board a powerful and cost effective converter, which can be used for diverse applications such as music, video, robotics, and industry. If the default program does not fit your needs, it is fully customizable with the free, easy-to-use MAC/PC compatible software editor. Get complete details on Eowave’s OEM Universal Board Product Page. Find articles and posts related to the the OEM Board.
Important Notes: Free software editor available from eowave’s website.
MidiTron	MIDI Analog/Digital I/O Interface from Eroktronix
Price: Click Here To Learn About Free Shipping!	An economical way to simplify the process of creating sensor and robotics based electronic art projects. It is easily user configurable and provides 20 terminals of digital and analog inputs and outputs in any combination. MidiTron can be used as music controllers, VJ controllers, MIDI instruments, dance triggers and body suits, interactive installations, driving LEDs, motor and robotic controllers, and much more. It is compact (2.5″ x 3″ x 1.5″), and can be embedded in your project. Powered from a 9-volt battery, MidiTron can be used without an attached computer. Its inputs and outputs can be easily configured from a menu-driven software program. No special drivers are required for MIDI input and output. You can have up to 20 digital inputs/digital outputs/analog (PWM) outputs, and up to 10 analog (ADC) inputs. Input devices include switches, pots, sensors and more. Outputs include LEDs, motors, relays, solenoids and more. And there is a high-resolution mode (10 bits) for analog inputs. Get complete details on Eroktronix’s MidiTron Product Page. Find articles and posts related to the MidiTron.
Important Notes: Only available to US and Canadian customers.
Ms. Pinky	A system that let’s you scratch anything from Baby Talk FX

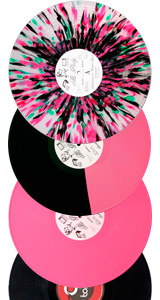

	With Ms. Pinky’s Interdimensional Wrecked System and Max/MSP/Jitter, you can use a turntable to scratch anything. The system consists of special records (1 black, 1 pink, 1 pink/black combo, and 1 splatter) in conjunction with software. You connect one or more turntables through a phono pre-amp to your computer’s audio input or audio interface. The downloadable Ms. Pinky’s Maxi-Patch software lets you scratch audio files and QuickTime movies. If you want to go further and develop your own scratching performance system, you can use Ms. Pinky’s Max/MSP objects that analyze the audio from the turntables playing her records and produce “control signals” that can be applied to any aspect of an interactive audio or video application: file or movie playback, synthesis, DSP effects, spatialization, or 3-D animation. Or all of these, all at the same time. You can even sample the scratching signal, record it to disk, loop it, or retrigger it. Get complete details on Ms. Pinky’s Product Page. Find articles and posts related to Ms. Pinky.
Price: Click Here To Learn About Free Shipping!	Special Price (only if you also buy Max/MSP now): Sorry, it is not available with the student 9-month authorization.

Make Controller Kit	Programmable controller from MakingThings
Price: Click Here To Learn About Free Shipping!	A full-featured input/output controller that is simple and robust enough for beginners, and powerful enough for experienced developers. The kit includes the Controller Board, and the Application Board. (A USB cable can be purchased from MakingThings separately.) This is sufficient to power, program and communicate with the kit. Created for artists, educators, hobbyists, engineers and design professionals, MakingThings’ products are designed to support both beginner and expert users. First time users of electronics can achieve instant gratification, and people with more technical experience find this off-the-shelf functionality instrumental in decreasing development time for their projects. Get complete details on MakingThings’ Make Controller Kit Product Page. Find articles and posts related to the Make Controller Kit.

Sensors	Sensors for the Eobody and other sensor systems from Electrotap
	Light sensor for Eobody Made by Electrotap.(Not compatible with Eobody Wireless unless modified.) Senses the brightness of an environment. It outputs a fully conditioned signal in the industry standard voltage range of 0.25-4.75 Volts. Price: Click Here To Learn About Free Shipping!
	Dual Axis Accelerometer for Eobody Made by Electrotap.(Not compatible with Eobody Wireless unless modified.) This sensor measures gestural energy in two directions. Fully conditioned and scaled the output signal to the industry standard voltage range of 0.25-4.75 Volts. Price: Click Here To Learn About Free Shipping!
	Round Pressure sensor for Eobody Made by Electrotap.(Not compatible with Eobody Wireless unless modified.) This sensor measures pressure/force in a variety of contexts. This includes building touch sensitive tiles for dance floors, electronic ‘drum’ surfaces, etc. It outputs a fully conditioned signal in the industry standard voltage range of 0.25-4.75 Volts. Price: Click Here To Learn About Free Shipping!
	Flex sensor for Eobody Made by Electrotap.(Not compatible with Eobody Wireless unless modified.) Sensor responds to a physical range between straight and a 90 degree bend. This sensor uses the same technology as many of the glove controllers used for video consoles or computer games. It outputs a conditioned signal in the industry standard voltage range of 0.25-4.75 Volts. Price: Price: Click Here To Learn About Free Shipping!
	Gyroscope sensor for Eobody Made by Electrotap.(Not compatible with Eobody Wireless unless modified.) Measures its angular rotation up to 300 degrees/second. Its output it not affected by gravity, unlike the accelerometer. There is also a temperature output. Applications include mounting on instruments, mechanical installations, and other surfaces that may be in some form of motion. Industry standard voltage range of 0.25-4.75 Volts. Price: Click Here To Learn About Free Shipping!
