Patch Query

    Paul
    Apr 02 2015 | 5:40 pm
    hi

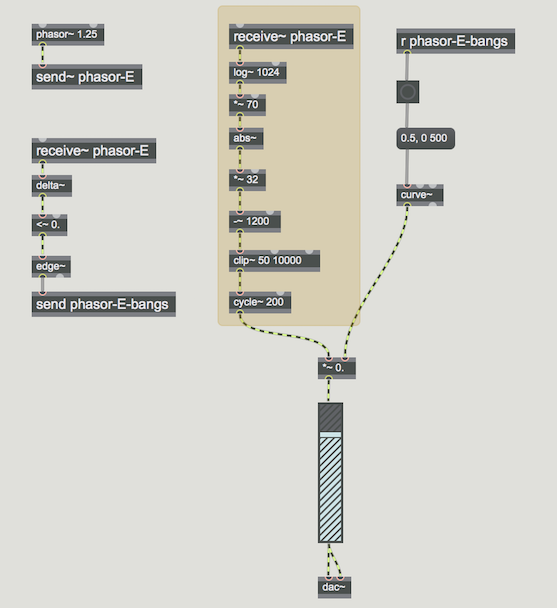

    am new to learning max/msp, slowing been going through the tutorials and found a patch online i really like, the IMG below is a small extract from that patch that outputs a bass sound via a phasor~
    Q: in the highlighted section of the IMG what are the arguments relating to in the objects?
    • Paul
      Apr 04 2015 | 10:07 am
      what are these doing to the phasor~ output?
      log~ 1024
      *~ 70
    • mzed
      Apr 04 2015 | 3:29 pm
      log~ 1024 is changing the wave from a sawtooth to a log function. Paste this into a patch to see the difference:
      *~ 70 is making the amplitude of the wave bigger.
      Note, this is all being used to drive the frequency of a cycle~. It seems like a very oblique way of getting a very fast frequency sweep 1.25 time a second.
    • Paul
      Apr 04 2015 | 4:16 pm
      many thanks MZED, where do we get the sum of 1024 from?
    • Paul
      Apr 07 2015 | 12:09 am
      hi,
      are there calculations to make from the phasor~1.25 to reach the 1024 argument in the log object?
      I've kinda solved whats happening below the abs~ object
      apologies for going round in circles, trying to learn quickly
      :)
