How do you add / modify the labels of [crosspatch]?
Hi folks!
I looked and looked and I cannot figure out how I can modify the labels that [crosspatch] has.

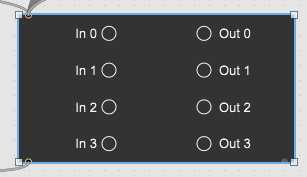

For example how do I add In 4 to this?
Thank you so much!

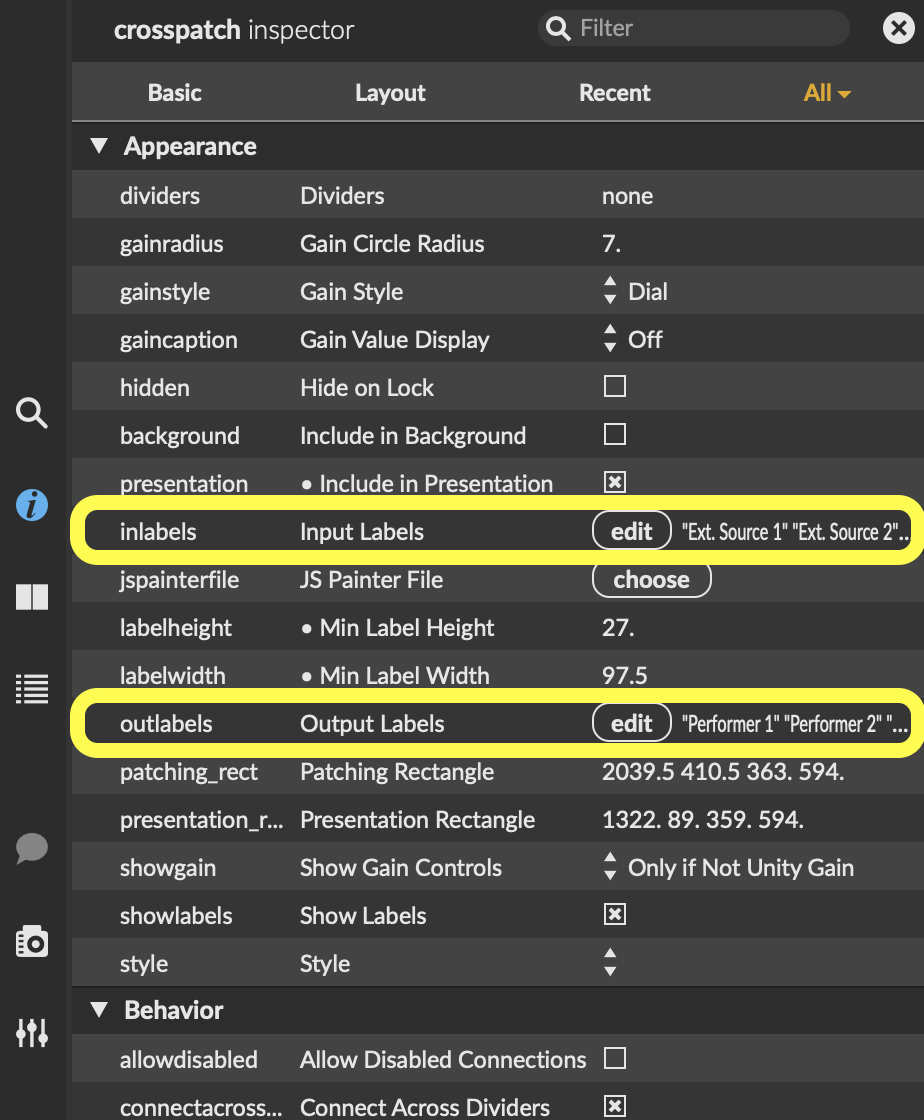

In the attributes inspector, look for "Input Labels" and "Output Labels", all the way up, in the Appearance section:
To set these attributes you can also send the inlabels and outlabels messages, followed by the list of your input or output labels. Each item must be separated by a space, not a comma like in [umenu]
Ah! I saw those ones, but for the example I set above, the list was empty so I figured that was not it.
Thank you so much!
PS: I am curious how come the initial example object I for from the Examples does not have any inputs and outputs in the list yet it has the actual labels
Now something else weird is happening
I input 0 1 2 3 4, but I cannot see 4 as label
Any suggestions?
Thank you!!!!
LE: I got it. I see there are options for that as well
LE2: Now I see that it adapts based on the [matrix] object that it connects to.
I agree it is a bit confusing at first, and not explicited in the help file
The "In 0", "In 1", etc. labels are here by default if the inlabels attribute is empty (same for outs).
If you want no label, then you can disable the "Show Labels" attribute.
And if you want no label only for a few ins or outs, then you can use " " (quote-space-quote) as a name.
Thank you for great explanations! Makes sense now.
