The innovations in Max 7 fall into the six main areas below.

    Arque Inc's projection mapping system, created for the 65th Sapporo Snow Festival, uses Max for playback and adjustment. Software developed by Masato Tsutsui.

    Workflow

    Integrate your tools seamlessly

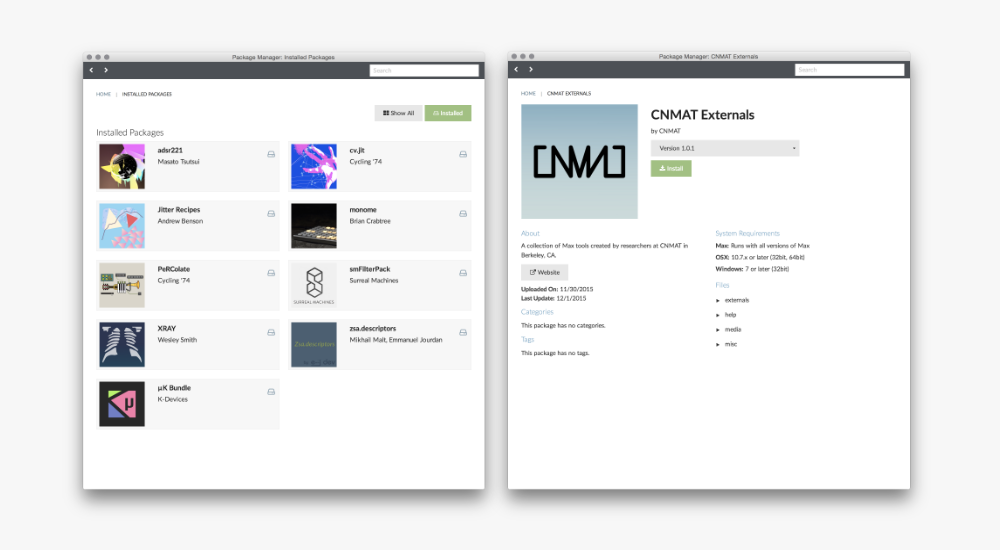

    Package Manager

    Get instant access to Max object libraries and system enhancements using the new Package Manager. Found in the File menu, this simple interface provides access to new content while allowing you to manage your existing installed packages.\nThe available content will be continuously updated with curated contributions from Cycling ’74 and the community.

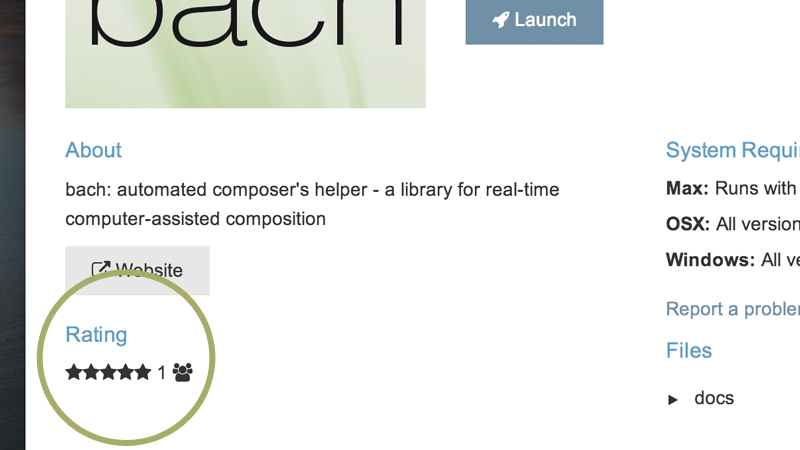

    Rate Packages and Report Bugs

    The Package Manager (PM) now allows you to rate packages and report issues directly to Cycling ’74 tech support. We're looking forward to hearing about what you think of the content in the Package Manager, and we hope you'll be inspired to make some content as well.

    Manage your patching with the File Browser

    Collections

    A collection is Max's version of a playlist and can be made up of files that fit a certain criteria (for example, all audio files from 2011, back when audio files sounded better) or a simple list of things you want to organize.\nOne powerful feature of collections is that unlike previous versions, files in a collection can live anywhere on your computer, and you don't have to understand or manage search paths. Just drag a file or folder into the file browser and it's available for use in your patches.

    Add files to collections in the file browser

    Tags and Searches

    Use the File Browsers to find all patchers you’ve tagged with keywords. For more sophisticated queries, the File Browser has an easy to use search syntax.\n Want to see all Max for Live devices created in 2014? That’s "kind:maxforlive after:2014-01-01". Searches you’ve made recently are available for easy recall, and if you’ll be looking for certain items regularly you can bookmark a search.

    Drag files out of collections into the patcher
    Snippets: A New Approach to Reusability

    Snippets

    A snippet is a piece of a patch you can save for later reuse. It’s designed to be fast and easy: just select the objects you want to save and give it a name. When you want to use a snippet, you can browse by name or use a visual catalog. Once you find what you’re looking for, simply drag the snippet into your patcher.

    1
    Select some objects you want to use again later
    2
    Assign a name to the snippet, right inside the patcher toolbar
    3

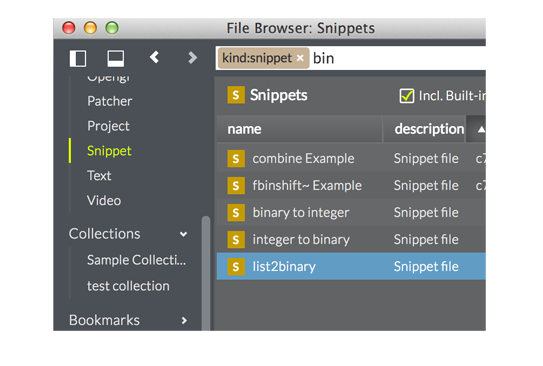

    Use the file browser to locate the snippet by name or the visual snippet browser in the patcher toolbar

    Example Snippets

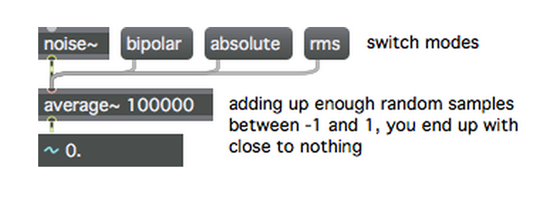

    The Max reference documentation has always included examples of the use of objects. Until now these examples were just pictures, but in Max 7, each example is actually a snippet you can copy into your patch.

    Drag files out of collections into the patcher
    Customize Your Environment

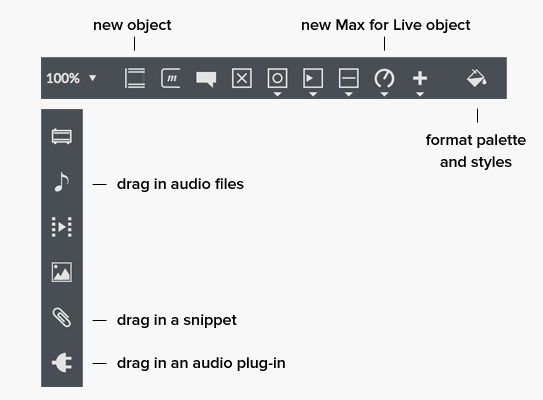

    Toolbars

    The toolbars form a frame around the patcher window. The top toolbar modernizes the old Max object palette along with the powerful new format palette that features font, color, and style controls. The left toolbar provides immediate access to audio files, videos, plug-ins, and other assets you use in your patching. The bottom toolbar controls how you view and edit your work. And the right toolbar provides access to the inspector, Max console window, and quick reference.\nYou can manually or automatically hide the toolbars to see your patcher out of the frame.

    Styles

    User interface objects in Max 7 have been redesigned for simplicity and easy customization based on a consistent color scheme. You can create a library of styles that apply color and font combinations across all standard objects.

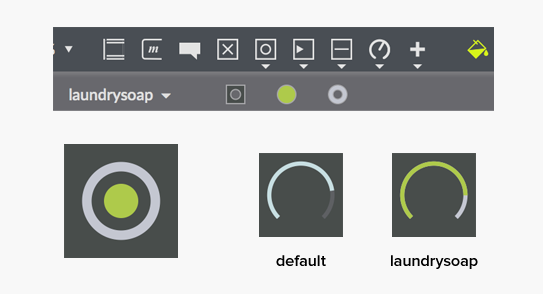

    The laundrysoap style of this button can be applied to a dial

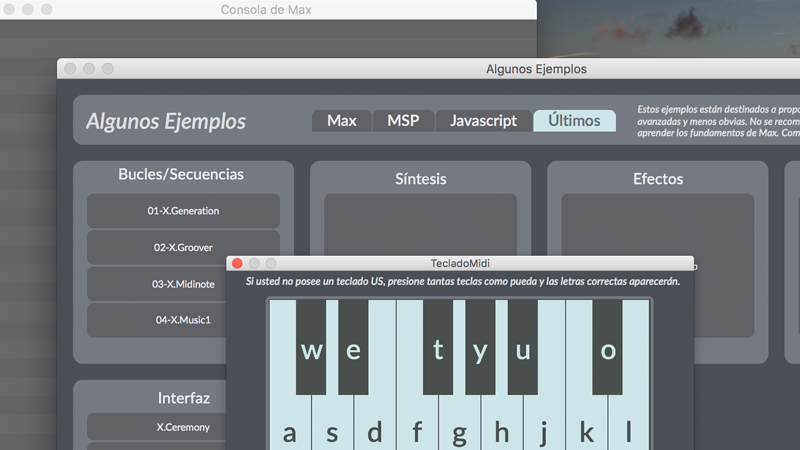

    Max 7 in Spanish

    Spanish installers of Max now include translations of installation, authorization, purchase, application menus, tours, and extras.

    Never Miss A Beat

    Workspaces

    Max 7 lets you keep working just where you left off with a new workspace feature that intelligently re-opens all the documents you were using when you last quit.

    1

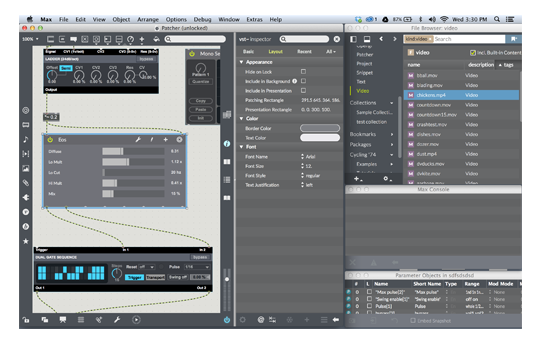

    If you quit with these windows open...
    2
    ... they'll all come back when you relaunch Max

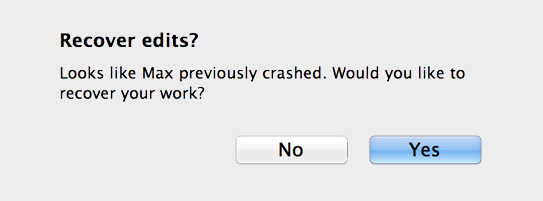

    Crash Recovery

    And, in the unlikely event Max 7 crashes, you won’t lose work. Our new crash recovery feature saves edits you make to a patcher. When you restart, Max will replay them onto the last saved state of your documents.

    Audio

    Customize Your Environment

    Objects

    Real-time audio elasticity has been added to all your favorite Max objects that play audio including sfplay~ and groove~. High-quality non-real-time pitch and time manipulation is available via the new stretch~ object.

    Tempo Sync

    Your audio can now follow the tempo of Global Transport. You can even lock and manipulate the phase of your audio loops. This allows you to think about your audio in tempo-relative units.

    Use a dictionary to specify warp points in a loop for playback with groove~

    Included Devices

    Drag one of the new pitch-and-time manipulating Max for Live devices into Max 7 or Ableton Live and you’ll be matching and mangling beats in no time.

    PitchTime Player: One of a dozen new Max for Live devices that now ships with Max 7
    Real-time intonation correction

    retune~

    The retune~ object gives you the ability to add intonation correction and intelligent harmonization to any project. In addition to standard auto-correct functionality, retune~ allows you to play any incoming monophonic audio signal at any pitch in real time. retune~ supports microtonal pitch correction and loads Scala-format tuning tables.\nRetuning can be added anywhere in the audio signal path and controlled at audio rate. In Max 7, retuning isn’t just a way to fix mistakes; it’s a creative tool with amazing possibilities.

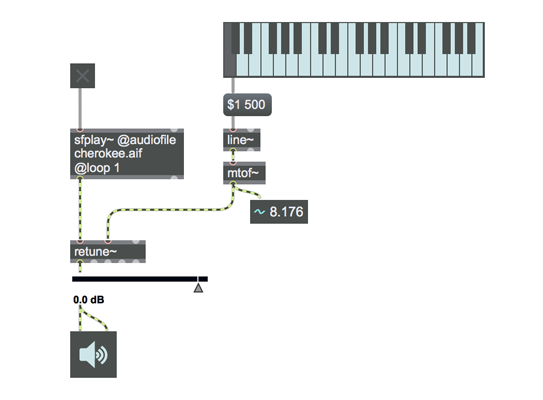

    The retune~ object controlled with MIDI notes transformed into a frequency as an audio signal

    Included Intonation Correction Device

    Don’t feel like building your own intonation correction plug-in? Max 7 ships with a Max 7-exclusive Max for Live device that you can use in Max or Ableton Live.

    Plug-in Integration

    Workflow

    Access all your VST and AU plug-ins from the patcher frame. Max for Live (AMXD) devices can be used directly in your Max patcher. Ships with dozens of effects, including many exclusive to Max 7. A new inline plug-in view allows you to configure a custom view of parameters you care about – and hide the rest. Easily automate plug-in parameters with Max messages.

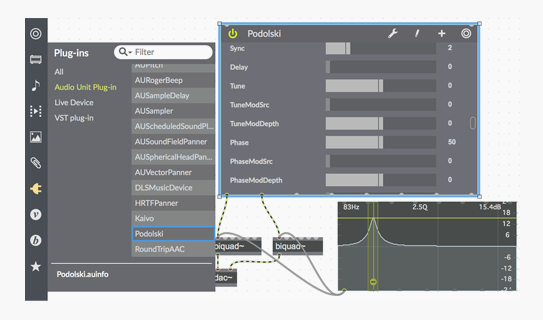

    Dragging a plug-in from the left toolbar into a patcher shows a new in-line view of your favorite parameters

    Snapshots Extended

    An updated Snapshot system now allows you to save the state of the entire patcher, not just hosted plugins. You can now instantly create, recall, rename and edit your snapshots using the new Snapshot pane on the right toolbar.

    Save a snapshot of your entire patcher

    Modular

    Drag and Drop Integrated Media Players

    Readymade

    Dropping a media file into your patch gives you a ready-to-use player complete with looping, clip selection, and ability to group clips into playlists. Clips can be triggered and adjusted using simple Max messages.

    Use the media browsers on the toolbar to drag in sounds, images, and videos

    Persistent

    Player state is saved with the patcher file, so there’s no need to load media files when you open your patch or store clip selections. Sometimes a great project starts with good source material, and now you can build your patch around it without fear of losing work.

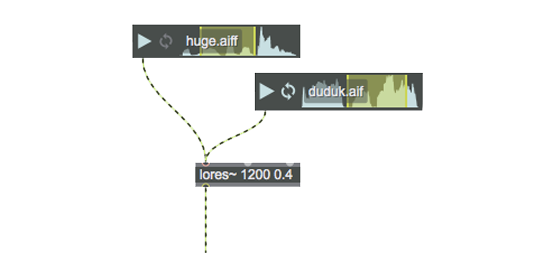

    Use playlist~ objects to integrate quickly with your patch for instant audio

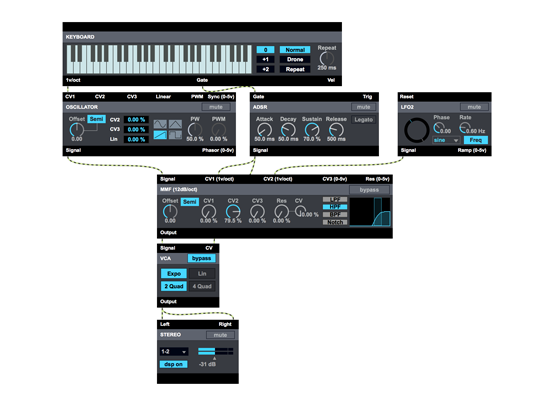

    BEAP

    Compatible Modular Patching

    BEAP modules emulate the 1v/octave signal standard used by most analog modulars. This means that the output of any BEAP signal is compatible with the the input of any BEAP signal. You don’t have to worry about unit conversion or signal scaling.\nYou also don’t have to worry about resolution or stair stepping because every BEAP signal is a full resolution, audio rate signal. You can even send a BEAP signal to the output of DC-coupled audio interface to control a hardware modular.

    Rapid prototyping

    BEAP frees you from having to build interfaces. All the knobs, sliders and switches are built-in so you can focus on your ideas.\nUnderneath, BEAP modules are regular Max patchers that you can modify and expand.

    Vizzie

    New Looks

    Our full-featured collection of modules for live video gets a new look in Max 7, along with new several new modules. The new BEAPCONVERTR module let you control Vizzie modules with BEAP's 1v/octave audio signal.

    The biggest change with Vizzie is dramatically improved accessibility with the new Vizzie browser in the patcher toolbar. Browse modules by category, read module descriptions, and drag them into a patcher.

    The Vizzie browser gives you instant access to all the modules

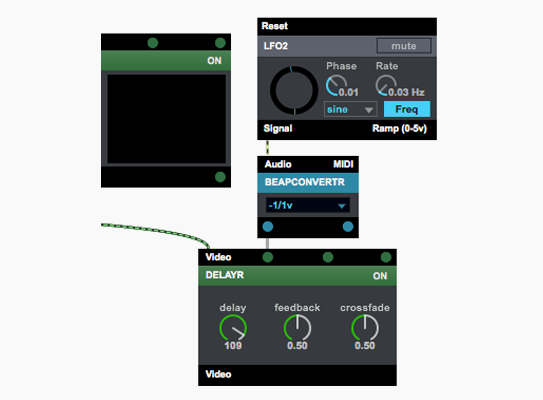

    Use BEAP signals to control Vizzie modules
    Max for Live Devices

    Share your work

    Since Max 7 can both host and author Max for Live MIDI and audio devices without Live, this format is ideal for making patches into shareable modules, accessible for both Max and Live users.

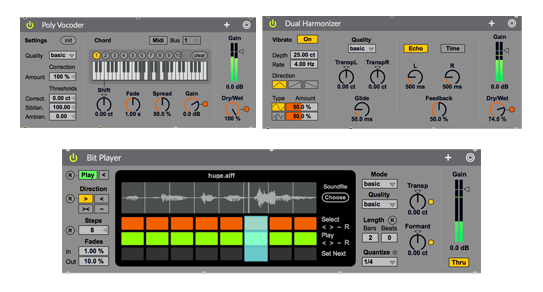

    Included devices

    We’ve included a number of Max for Live devices including the Pluggo for Live collection and over a dozen new devices exclusive to Max 7, including:

    • Pitch/time sample playback devices (Classic Player, PitchTime Player, Pitch Correct Player, Synced Player Bit Player)
    • Pitch Shifting Effects (Pitch & Vibrato, Pitch & Echo)
    • Pitch and Time Instrument (More Simpler)
    • Pitch Analysis (Pitch Tracker)
    • Harmonization (Dual Harmonizer, Multi Harmonizer)
    • Vocoding (Mono Vocoder, Multi Vocoder)
    • Intonation correction (Autotuna, Microtuna)

    Visuals

    jit.world: Jitter in an Instant

    Complete

    By adding one object to your patch you get a window for display, an OpenGL rendering context, integrated physics setup, direct display for jit.matrix or textures, and even raster output of the scene for recording or use elsewhere.

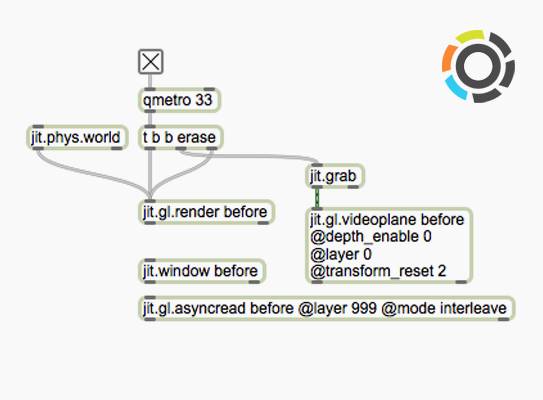

    It used to take a lot of work just to get started in Jitter
    A single jit.world object provides all the features shown in the previous Max 6 patcher on the left

    Sync

    Any jit.movie or jit.grab objects in the patch will be automatically driven by jit.world. No metros needed. There’s also an outlet that sends triggers when a frame is rendered for everything else.

    Improved Video Performance

    Direct to Hardware

    Movie playback and jit.grab can now read directly to OpenGL texture, avoiding the bottleneck of converting to jit.matrix. Connect video to jit.gl.slab and jit.gl.pix for processing or connect directly to jit.world for display.

    Max 6 attempting to play a 2K H.264 video

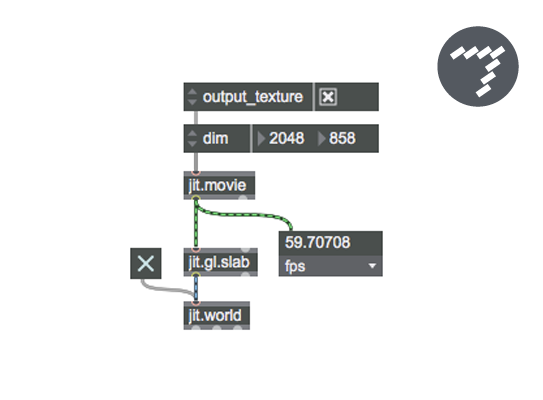

    The same video in Max 7 using the AVF engine and texture output

    Live HD

    Lean on your graphics card to decode H.264 and other supported codecs.

    Features are currently Mac-only. Windows equivalent playback features are forthcoming in a future Max 7 update.

    VIDDLL Video Engine

    Max 7 now comes installed with the VIDDLL video engine. Based on FFmpeg, it is also set as the default video engine in Windows Max 7, both 32- and 64-bit versions. We have enhanced VIDDLL to be compatible with a wide range of modern video formats.

    Add Real-Time Effects to 3D Graphics

    Eye Candy

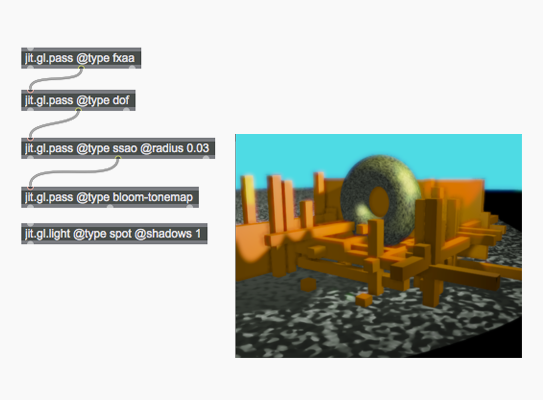

    Simply enable the shadows attribute of jit.gl.light to add realtime shadow rendering. Multipass rendering allows you to easily add post-render effects like shallow depth-of-field and ambient <occlusion class=""></occlusion>

    Customize

    It’s easy to create your own multipass effects combining JXS (Jitter shader files) and Jitter Gen files using the new JXP file format.

    Example JXP file showing a sequence of several rendering passes
    New Ways to Learn

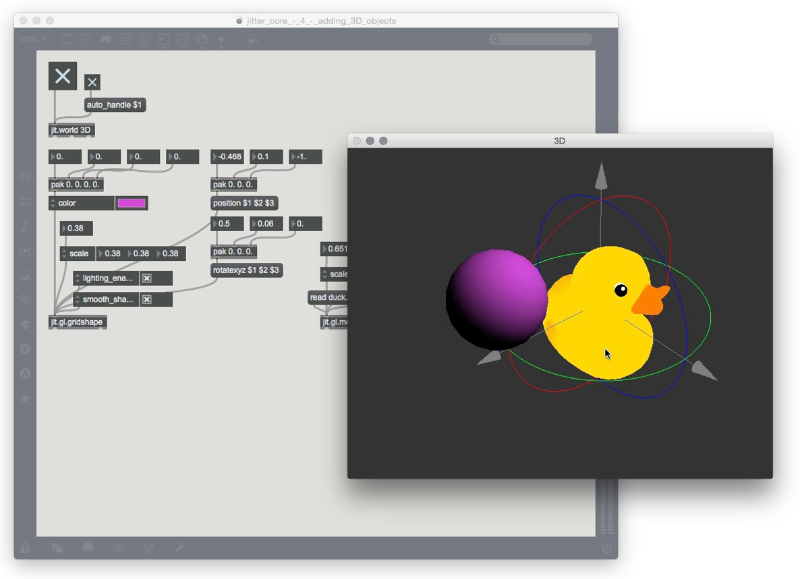

    Updated Beginner Tutorials

    A new set of beginner tutorials for programming video and graphics in Max. Up to date techniques and examples, and a section of current Jitter best practices based on user feedback.

    Gen

    Gen: Fully Integrated into Max 7

    Gen is an advanced environment for creating highly efficient code from visual graphs and textual expressions. In short: the same interface you’re used to in Max, but with results than run much, much faster. In Max 6, you could use Gen modules but not edit new ones without buying Gen as an add-on feature. In Max 7, we’ve included Gen editing for everyone.

    If Max is for people who’ve hit the limits of conventional prefabricated software, Gen is in many ways for people who’ve hit the limits of Max. In both audio and image processing, Gen permits you to create highly optimized low-level modules; it essentially gives you the ability to create new Max objects, but without the need to use C++ or shader languages.

    With Max 7 and Gen, you can feel confident you have an environment without limits.

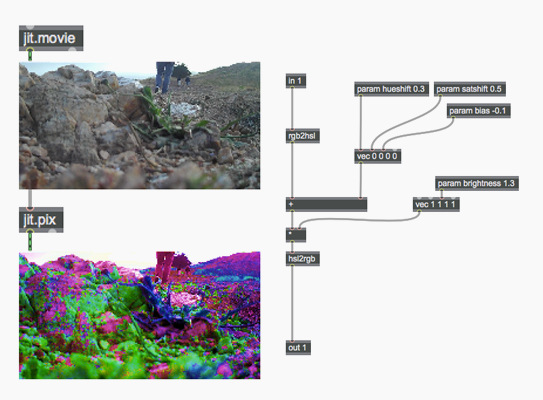

    Visual processing in Gen: the patch on the right performs fast color processing on video frames
    Gen Performance and Workflow Improvements

    Faster Loading

    Since Gen code is efficient, you often want to use multiple instances of a Gen patcher in the same project. In Max 7, we only compile these once, dramatically reducing the time it takes to load a complex patcher.

    Improved Access to Resources

    The same philosophy of immediate access in Max patchers applies to Gen patchers. You can save Snippets of reusable Gen code, gain immediate access to any Gen module files, and create any Gen operator from the new left toolbar.

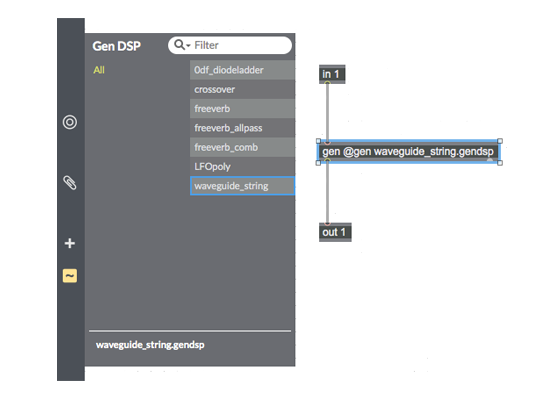

    Gen modules you’ve created are accessible for dragging into a Gen or Max patcher

    25 More Reasons Why You'll Love Working with Max 7

    1

    We’ve updated the web browser object based on the cross-platform Chromium Embedded Framework (CEF). The file and documentation browsers are beautiful examples created with a combination of integrated web technology and Max infrastructure.\n\nYou’ll be able to create amazing new projects with the powerful combination of Max, web technology, and internet access using the MaxURL object.

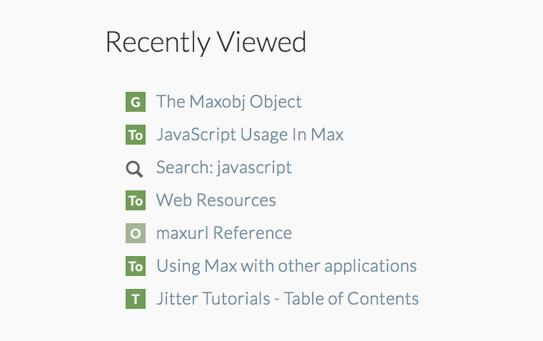

    Max’s new documentation browser was created with an integrated web browser in a patcher window

    2

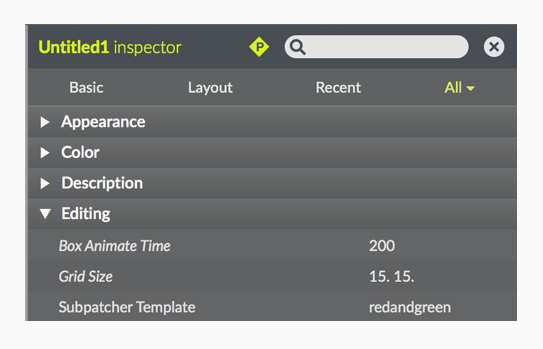

    The Patcher Inspector is now available in the sidebar or in a separate standalone inspector window. Access attributes for the patcher as a whole whenever the inspector is open and no objects are selected.

    Convenient access to patcher settings in the sidebar

    3

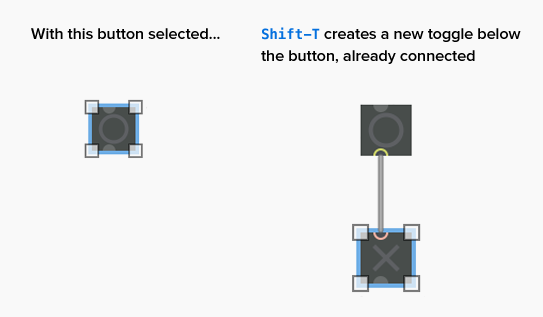

    Max 7 includes a new set of high-level keyboard-based gestures we call Patching Mechanics. These commands combine creating and connecting objects in common patterns into a single step.

    4

    Transforms are easily accessible commands that turn one kind of Max object into another. For example, turn a patcher into a bpatcher in a single step. Or copy all the changed attributes of an object into arguments in the object’s box.

    5

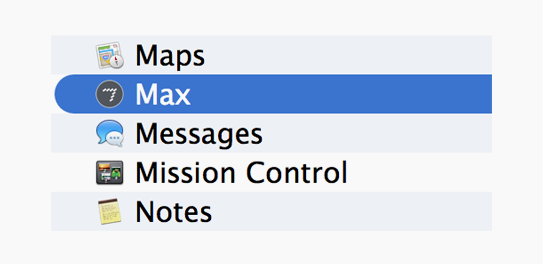

    As you see by the Applications folder screen shot, we’ve eliminated the need for a separate Max runtime. You can use the regular version of Max after the demo period to open and even edit patchers; you just can’t save. And developers of Max externals will appreciate that you are no longer required to use the runtime version to debug external objects.

    6

    The toolbar Calendar lets you access files you used in the past: earlier today, a months ago, or even years ago.

    Looks like this user doesn’t like to patch on Sundays (assuming she’s in the US — the calendar adapts to the proper day of the week based on your computer)

    7

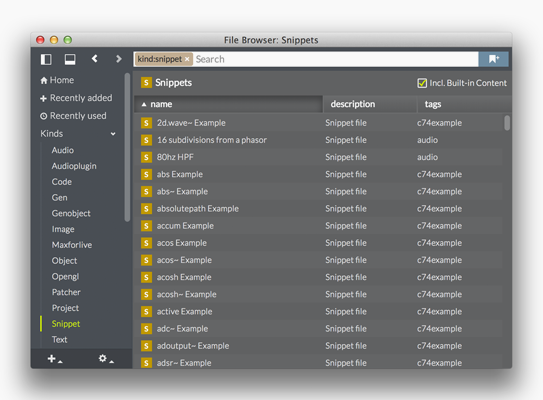

    We’ve dramatically improved the quality of documentation search results. And you can search the documentation right in the toolbar of the patcher.

    Convenient access to patcher settings in the sidebar

    8

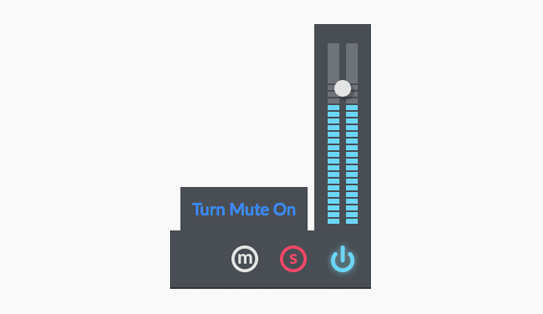

    The toolbar includes an audio on/off button, an overall level meter, a master fader, and optional solo and mute buttons.

    No need to patch just to turn the audio on and off or control the master level

    9

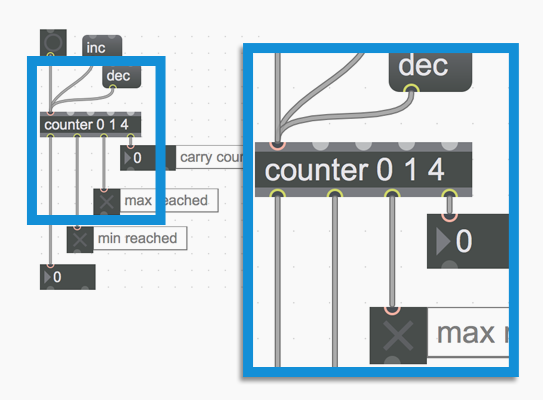

    Pressing the Z key zooms the patcher in around the cursor. Teachers presenting Max in the classroom will love this feature and anyone who likes to make dense patches will find it essential. Presenters will also appreciate H — it highlights the object under the cursor.

    10

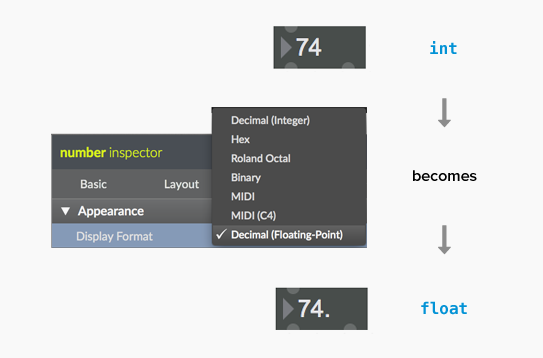

    You can transform an integer number box into a floating-point number box by choosing Floating-Point mode in the inspector. Previously, you had to delete the integer number box and make a new floating-point number box.

    OpenGL

    11

    Jitter OpenGL rendering now supports retina displays with the @high_res 1 attribute

    12

    Improved 2-D and 3-D text rendering in jit.gl.text

    13

    jit.gl.node now supports full-screen anti-aliasing (FSAA)

    14

    The jit.gl.slab and jit.gl.pix objects can now output multiple textures

    15

    You can double-click on a jit.gl.slab or jit.gl.shader object to edit shader code

    Audio

    16

    The sfplay~ object supports playback of MP3, M4A and FLAC files

    17

    Fast approximation operators (sin, cos, tan, pow, exp) have been added to gen~

    Javascript

    18

    Use jspainter to customize the display of standard UI objects while permitting data to still flow through them in the scheduler thread. This was not possible with previous JS-based user interfaces.

    19

    Javascript now supports require (filename) and include (filename) for referencing and including other JS files

    20

    You can access buffer~ objects directly from Javascript code.

    21

    We’ve improved support for dictionaries in Javascript, including arrays of dictionaries and the ability to use strings without creating symbols.

    Performance

    22

    The Max 7 scheduler uses almost no CPU when at idle as compared to Max 6. (For one thing, this means longer battery life for your laptop.)

    23

    Improved user interface responsiveness.

    Control

    24

    Use MPE enabled controllers—like ROLI Seaboard RISE, Madrona Labs Soundplane and the Linnstrument—with new objects that manage incoming MPE MIDI data.

    Access MIDI and MPE data directly inside a poly~ using the new polymidiin object, and control poly~ voice allocation using MPE voice information.

    25

    We've revived the Pluggo classic PGS-1. Three versions are available via the Package Manager: The original monophonic and a polyphonic that are Max for Live ready, and the full MPE-compatible version that you can run as a project in Max.
