tomoya matsuura

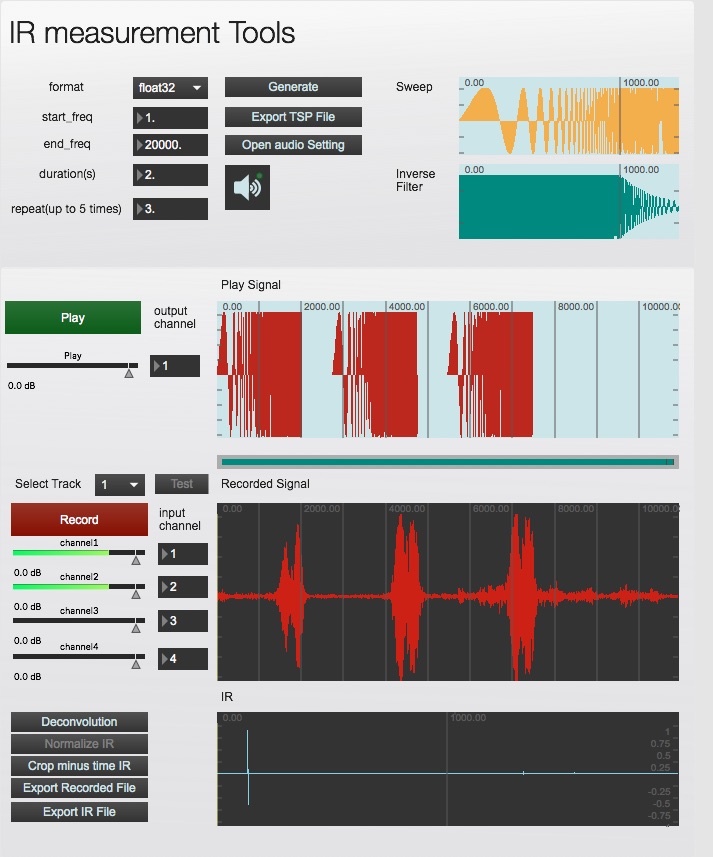

Impulse response measurement tool made with purely Max/MSP/Jitter/Gen.

You can generate a test signal (exponential swept sine), record signals from audio interfaces and convert recorded signal into impulse responses (currently up to 4 tracks).

Impulse response measurement tool made with purely Max/MSP/Jitter/Gen.
There's no required external libraries.

Impulse response measurement tool made with purely Max/MSP/Jitter/Gen.
There's no required external libraries.
You can generate a test signa

ir-measurement-toolbox

tried your patch, but get an error when I do "Export TSP File" in Max Window:

buffer~: could not create file: Untitled.wav

@ Tomoya,
tried your patch, but get an error when I do "Export TSP File" in Max Window:
buffer~: could not create file: Untitled.wav

I guess it's because test signal is not generated yet.

Do you see any waveform on "Play Signal"?

I quickly fixed the initialization process, now it generates default test signal on startup and I confirmed the tsp signal can be exported correctly.

If you changed setting like duration, repetition and sampling rate, you have to click "generate" button again.

@KLANGSCHMIED
Thanks for reporting!
I guess it's because test signal is not generated yet.
Do you see any waveform on "Play Signal"?

I quickly fixed the initialization process, now it generates default test signal on startup and I confirmed the tsp signal can be exported correctly.

If you changed setting like duration, repetition and sampling rate, you have to click "generate" button again.
Plz check the github repo.

with the last version I did not see any waveform in "Play Signal".

@ Tomoya
with the last version I did not see any waveform in "Play Signal".
Now with the new version it is ok.
Thanks!

IR Measurement Toolbox

2017

Japan
