Isabel Kaspriskie

Hello forums! I've just finished up an initial release of a side project I've been working on for a few months -- a package of 150+ audio effect externals all ported directly from the open source

VSTs. There are compressors, delays, reverbs, bitcrushers, filters... All sorts of good stuff. Big thanks to Chris Johnson for making Airwindows open source!

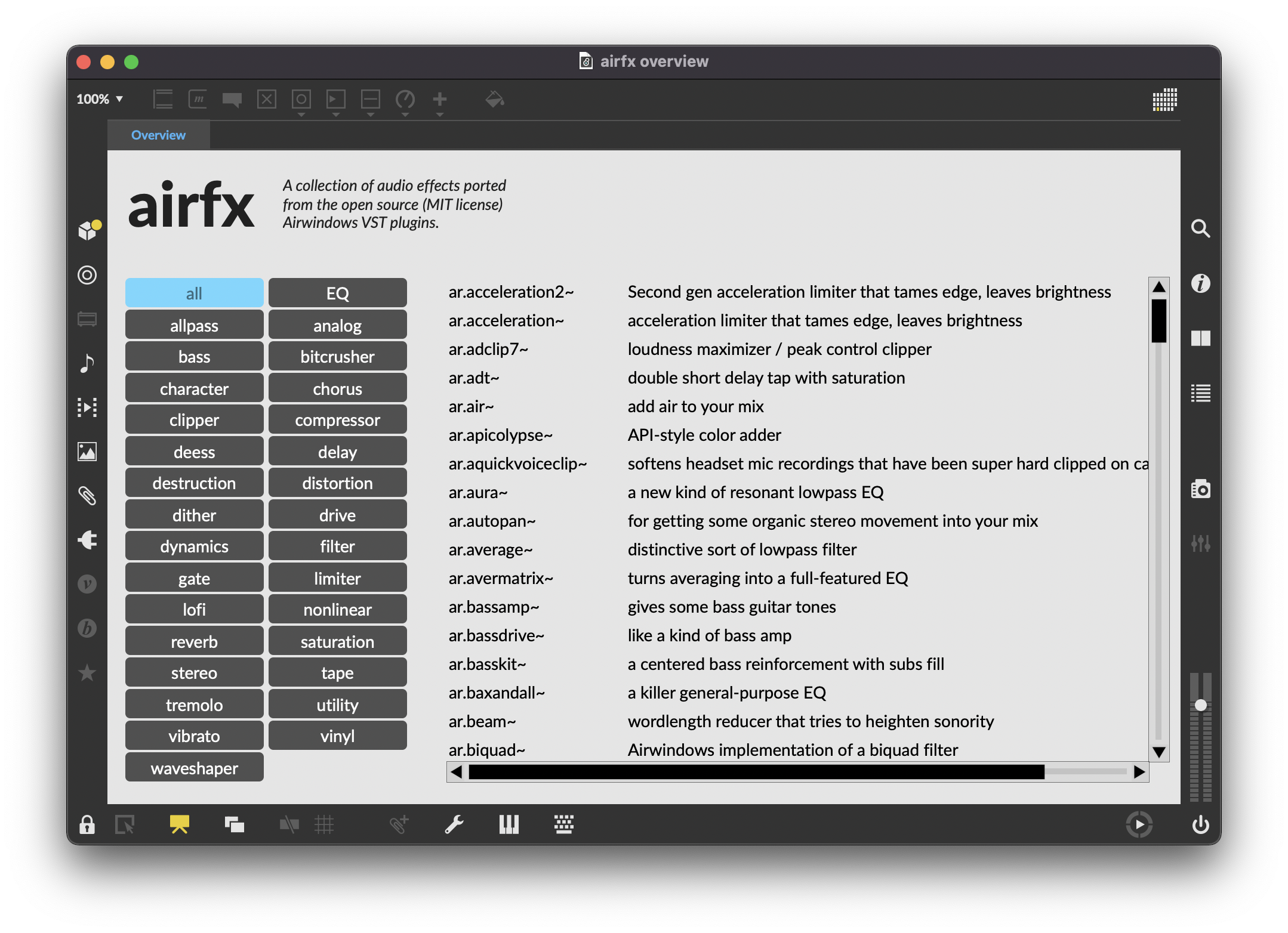

Screen Shot 2021-12-27 at 10.11.15 AM.png

 v1.0.0 (you can find the downloads on the release page).

https://github.com/isabelgk/airfx/releases/tag/v1.0.0

You may ask: why not just use the vst~ object? Well, the real answer is that I wanted an excuse to see if I could automate generating min-based externals! The Airwindows plugins' source code is pretty standardized and easy to parse as text, so I decided to give it a go. But also it's nice to know that you can bundle up the external in, for example, a M4L device and not require the user to have the plugin installed.

Anyway. Hope you enjoy! If you run into anything that seems broken, feel free to leave a GitHub issue. :)

Hello forums! I've just finished up an initial release of a side project I've been working on for a few months -- a package of 150+ audio effect externals all ported directly from the open source airwindows VSTs. There are compressors, delays, reverbs, bitcrushers, filters... All sorts of good stuff. Big thanks to Chris Johnson for making Airwindows open source!

Here is airfx v1.0.0 (you can find the downloads on the release page). https://github.com/isabelgk/airfx/releases/tag/v1.0.0

You may ask: why not just use the vst~ object? Well, the real answer is that I wanted an excuse to see if I could automate generating min-based externals! The Airwindows plugins' source code is pretty standardized and easy to parse as text, so I decided to give it a go. But also it's nice to know that you can bundle up the external in, for example, a M4L device and not require the user to have the plugin installed.

Hello forums! I've just finished up an initial release of a side project I've been working on for a few months -- a package of 150+ audio ef

airfx-package

This is awesome Isabel! These will be hugely helpful as min examples. I will definitely be playing with this, and will also share it with my professor friends at UVic for potential course materials!

This is awesome Isabel! These will be hugely helpful  as min examples. I will definitely be playing with this, and will also share it with my professor friends at UVic for potential course materials!

I'm probably being dim here, but I downloaded the zip and put the airfx folder in my Packages folder, but when I launch any of the help files , the ar. objects all get the message "no such object". What am I missing? Ta.

Are the .mxo and .mxe64 files in the externals folder?

Also, are you on Windows? (If so, there could have been an issue with the GitHub actions build and I can recompile and test again soon when I’m near my Windows machine again.)

I’m on Mac, and there isn’t an externals folder at all! Have I downloaded the wrong thing? (“Download ZIP” in the Code drop-down. (I’ve never really gotten my head around GitHub)

yup. the /source folder is emtpy, too (unzipped under win here)

Ah, to clarify you should download from the releases page here:

Ah, to clarify you should download from the releases page here: https://github.com/isabelgk/airfx/releases/tag/v1.0.0 (the first item, not the source code)

Lots of useful objects… but loading any of the ones I tried (in the help files) bumped processor load up to around 35%. That seems a bit hungry for a single object to me!

Some of the reverb algorithms might be higher performance hits, but I wouldn't expect that for a lot of the lighter weight ones.

For example, ar.pocketverbs~ is around 10-15% load on my machine whereas ar.adt~ is around 2% load.

Some of the reverb algorithms might be higher performance hits, but I wouldn't expect that for a lot of the lighter weight ones.

I _was a bit surprised when I saw that. So I’ll check them again tomorrow. This will be on an M1 and max 8.2 without Rosetta.

Hmm. I tried several of the objects, and with Max8.2/Rosetta they were using from 15-30% cpu, but with Rosetta off, the load was 0-1% . Pocketverbs used a steady 5%. Would you would expect that much difference with/without Rosetta?

Hmm. I tried several of the objects, and with Max8.2/Rosetta they were using  from 15-30% cpu, but with Rosetta off, the load was 0-1% . Pocketverbs used a steady 5%. Would you would expect that much difference with/without Rosetta?

Thanks for making these! I'm noticing an issue where the external's attributes reset when the dsp chain resets. i.e. if I make a new msp object somewhere, the attributes will reset to the their default value. I can get around this by setting them in a numbox and resending them each time.

I am not too surprised to hear there's a pretty different level with/without Rosetta. It's hard to say, unfortunately.

Thanks for this catch! I know why it's happening, but it may take a little while to fix all the objects. ;)

Would you would expect that much difference with/without Rosetta?

 if I make a new msp object somewhere, the attributes will reset to the their default value.

no rush! I appreciate the effort that went into this. thanks again

I've just released v1.0.1 which should hopefully fix the issue mentioned above!

https://github.com/isabelgk/airfx/releases/tag/v1.0.1

 by downloading the airfx-*-release.zip and unzipping it into your ~/Documents/Max 8/Packages directory.

I've just released v1.0.1 which should hopefully fix the issue mentioned above!

You can grab it at https://github.com/isabelgk/airfx/releases/tag/v1.0.1 by downloading the airfx-*-release.zip and unzipping it into your ~/Documents/Max 8/Packages directory.
