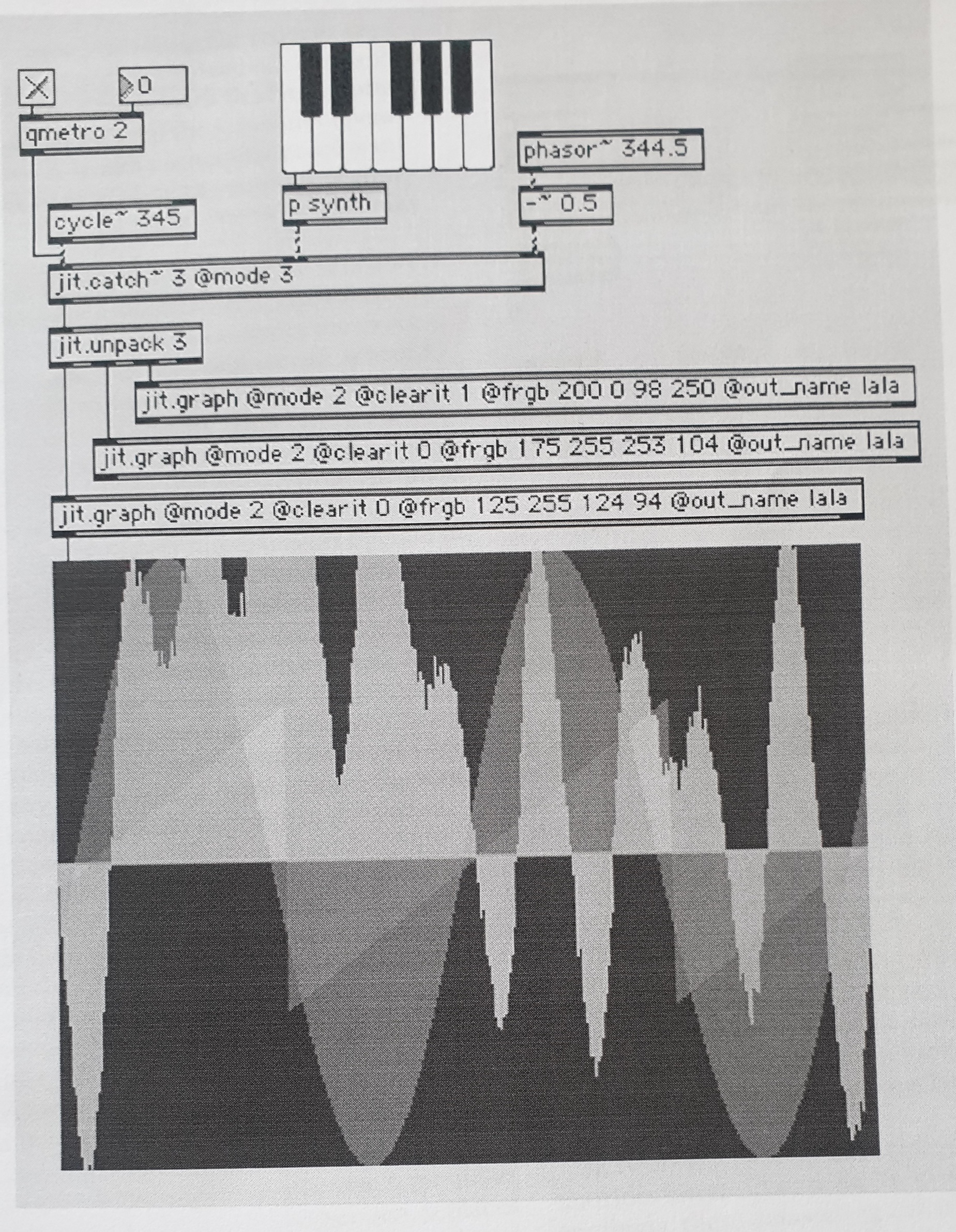

I am trying to transcribe this old patch with no success. I see that the result of three jit.graph is drawn on the same jit.pwindow . In my version, only the result of the connected jit.graph to the jit.window is drawn. What am I missing here?

The @out_name value specifies the "output matrix". 5 I don't understand very good this attribute and I did not find more examples about how to use it.

Note : a similar technique is being used on the help file of jit.plot

jit.pwindow

ezdac~

jit.graph

number

toggle

qmetro

jit.unpack

bpatcher

demosound

jit.catch~


I am trying to transcribe this old patch with no success. I see that the result of three jit.graph  is drawn on the same jit.pwindow . In my version, only the result of the connected jit.graph to the jit.window is drawn. What am I missing here?
The @out_name value specifies the "output matrix".  5 I don't understand very good this attribute and I did not find more examples about how to use it.

Hello,
I am trying to transcribe this old patch with no success. I see that the result of three jit.graph  is drawn on the same jit.pwindow

drawing-on-the-same-jit-pwindow-using-the-same-out_name-value

only the topmost jit.graph has @clearit enabled in the image, your patch has it enabled for all 3 so only the bottom graph is being displayed.

Oh, thanks Rob , I need new glasses, or vacation
