Jitter FX / Slab router

billyanok's icon

Hello,

I'm looking to build the most efficient way to dynamically route FX chains?

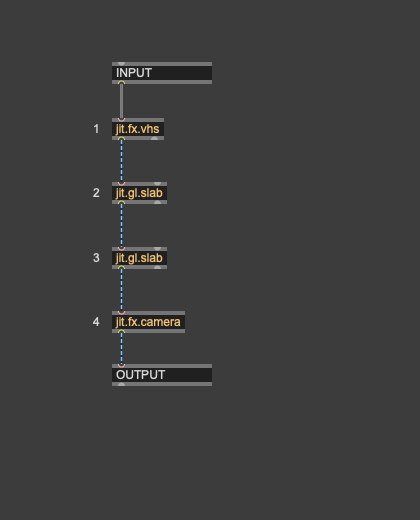

FX1 - FX2 - FX3 - FX4 to FX4 - FX3 - FX1 - FX2 to etc..

Thx!

B


Rob Ramirez's icon

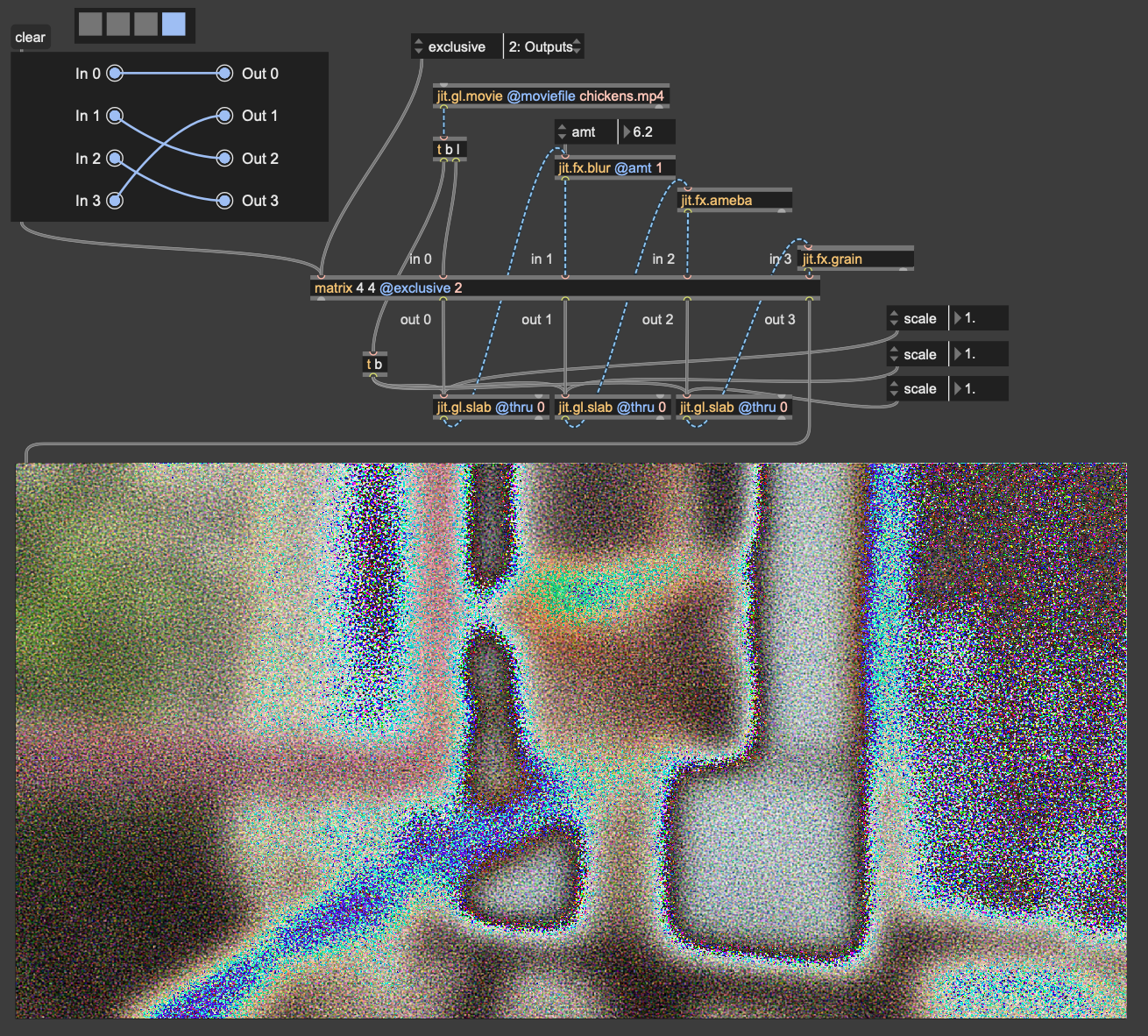

one fairly simple way to set this up is with matrix and crosspatch in exculsive output mode.

simple to setup, but I find it tricky to wrap your hear around operation.

fx-routing.maxpat
Max Patch


billyanok's icon

Hey Rob, thx for the reply!

I'll have a look and get my head around it

B

billyanok's icon

Rob, I've done some testing.. Nice.

What sort of GPU overhead is there using the Matrix / Crosspatch?

Thx, B

Roman Thilenius's icon

matrix/gate/switch do nothing else but changing a connection from A to B to C, the only thing what needs CPU for this is the inlet/outlet, those objects do not even do a type check. :)

Rob Ramirez's icon

as roman says, near zero overhead compared to patching them directly

billyanok's icon

Great, thank you.

B
