Hey Guys,

I'd like to create a plain black border around several different objects using a JS Painter file. Could any body help me with the code or point me in the right direction? I tried entering someone's suggestion i found online but it did not work correctly.

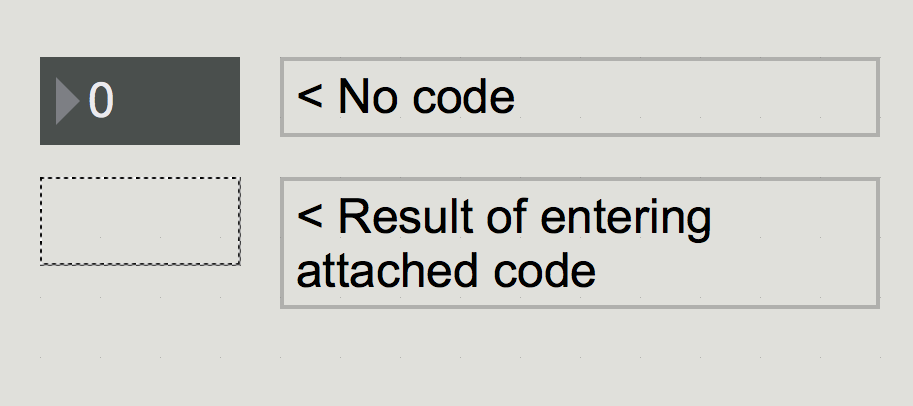

Below is the example JavaScript code I used and an attached picture of the result.

Here is an example of drawing a toggle object in JS:

function paint()
{
    var val = box.getvalueof()[0]; // this is an array of size 1
    var viewsize = mgraphics.size;
    var valrange = box.getattr("size");
    var width = viewsize[0];
    var height = viewsize[1];
    var start;

    mgraphics.set_source_rgba(box.getattr("bgcolor"));
    mgraphics.rectangle(0, 0, width, height);
    mgraphics.fill();

    if (val) {
        mgraphics.set_source_rgba(box.getattr("color"));
    } else {
        mgraphics.set_source_rgba(box.getattr("elementcolor"));
    }

    mgraphics.set_line_width((2./12.)*box.getattr("thickness")*0.01* width);
    mgraphics.set_line_cap("square");

    start = (7./24.) * width;

    mgraphics.move_to(start, start);
    mgraphics.line_to(width - start, height - start);
    mgraphics.stroke();

    mgraphics.move_to(width - start, start);
    mgraphics.line_to(start, height - start);
    mgraphics.stroke();

}
JSPAINTER-EXAMPLE-UI7-20140916.ZIP
