Live.dial Bipolar exponential HELP

Steve Rummage's icon

Hi friends, I'd love some help with the patch below...

Ive set up a stereo frequency shifter where turning the bipolar live.dial one way pitches the channels in opposite directions, and vice versa.

But I need a very soft exponential curve on the dial - which I think isn't possible without some extra objects and code... Can anyone help?

Max Patch
Copy patch and select New From Clipboard in Max.

Source Audio's icon

replace that expr with * -1.

check scale object with exponential curves.

Steve Rummage's icon

Thanks, I cant get scale to work in this situation though. Seems to make a mess of the output numbers

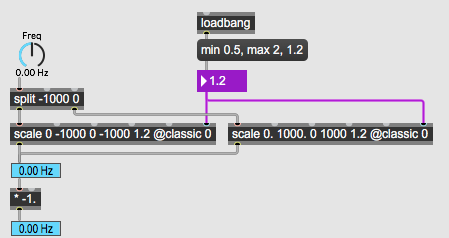

Source Audio's icon
Steve Rummage's icon

Excellent mate, thanks. Didnt need the split, as both channels needed to go -/+ 1000hz but in opposite directions.

Cheers!

Source Audio's icon

split is there in case you need curve in one or the other direction

from the middle point.

Roman Thilenius's icon

when i am not mistaken you now have wrong Hz values displayed in the GUI.

classic live objects problem. ;)

Steve Rummage's icon

Correct. I assumed that was as close as it gets, so just disabled the numerical display on live.dial
