MXJ Class Loader problem with OpenCV Native Library


    Sep 16 2017 | 1:26 pm
    I'm using OpenCV with MXJ but I encounters an annoying problem. Let me explains

    Instructions for OpenCV with mxj

    (Windows 7 , Max 7 64 bit) 1. I downloaded the OpenCV archive, this is a 7-zip self extractor. 2. I obtain a folder called opencv which contains a build folder which contains java. 3. This java folder contains the native library of OpenCV and the JNI Jar I need to add to my Eclipse project
    4. Then I create a Eclipse project, in the properties of this project I set up my Buildpath to use the OpenCV JNI and all an mxj externals needs :

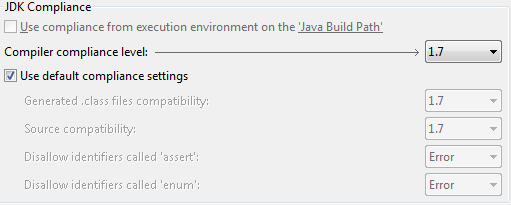

    5. The OpenCV Native Library dll is placed in one of my PATH folder, "c:\windows\system32" in my case by the way, I use the 1.7 JRE and it seems to work properly like that :

    Code

    import com.cycling74.max.*; import org.opencv.core.Core; import org.opencv.core.CvType; import org.opencv.core.Mat; import org.opencv.core.Scalar; public class TestOpenCV extends MaxObject { static { System.loadLibrary(Core.NATIVE_LIBRARY_NAME); } public TestOpenCV(Atom[] args) { declareInlets(new int[]{DataTypes.ALL}); declareOutlets(new int[]{DataTypes.ALL}); } public void bang() { Mat m = new Mat(5, 9, CvType.CV_8UC4, new Scalar(0)); Mat mr1 = m.row(1); mr1.setTo(new Scalar(1)); Mat mc5 = m.col(3); mc5.setTo(new Scalar(5)); post("OpenCV Mat data:\n" + m.dump()); } }

    Problem

    OpenCV seems correctly implemented, for exemple, I can instantiate a Mat object and post its content to Max console. Sending a bang I get the content of the Mat Object : OpenCV Mat data: [ 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 5, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0; 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 5, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0; 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 5, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, ... And so on Problems appears when I change the Java code of the mxj object. To update my object, I delete it and recreate it again. Then, the errors appears in Max Console :
    java.lang.UnsatisfiedLinkError: Native Library C:\Windows\System32\opencv_java300.dll already loaded in another classloader at java.lang.ClassLoader.loadLibrary1(Unknown Source) at java.lang.ClassLoader.loadLibrary0(Unknown Source) at java.lang.ClassLoader.loadLibrary(Unknown Source) at java.lang.Runtime.loadLibrary0(Unknown Source) at java.lang.System.loadLibrary(Unknown Source) at OpenCVClassLoad.loadNativeLibrary(OpenCVClassLoad.java:5) at TestOpenCV.(TestOpenCV.java:22) (mxj) unable to alloc instance of TestOpenCV Reading this article : https://cycling74.com/articles/mxj-class-loading , It's clear that when I create a new MXJ with a more recent class file, a new class loader is used, but the Native Library stills loaded and that's what generate this errors. Unfortunatly, that article don't seems to provide any solutions.
    Only things I can do then is close and restart Max/MSP.

    "Solutions" I've found

    I found a lot of questions about this kind of problem on Stack Overflow but nothing helped, most of the time it concerns something called Tomcat that I never used.
    1. Use a custom class loader ? That's a solution I read here but it seems hard to implement. With this solution, I could maybe unload the Native Library inside a notifyDelete() method. 2. Re-use the Native Library already loaded ? Don't know if it's possible.. 3. Doing some research on Github, hoping to find an example using Native Library I find this one : https://github.com/timini/maxSerial (the only one) He don't use "System.loadLibrary" so he has an alternative method, I notice he recommend to place the DLL in java/lib (Max5), probably resources\packages\max-mxj\java-classes\lib Today. Could it be the solution ?
    4. A magical stuff to do in notifyDelete() ?
    5. Someone tell me it was possible to solve this by setting "Native Library Location" in build path's Eclipse project but it doesn't helped, maybe I'm doing it wrong ?
    6. Place the DLL in '.../Max 7/resources/support' ?
    I don't know what to do against this and that's really annoying because I'm really near to have the complete solution to use OpenCV properly with mxj :'(
