Phasor clock
I have noticed that when using the phasor as a clocksource , it needs a negative offset befor going into the compare module and then the edge ~`
The phasor~ goes from 0 to 1 , but for some reason going into >~0 doesn't recognize the zero , which is why I need the offset .

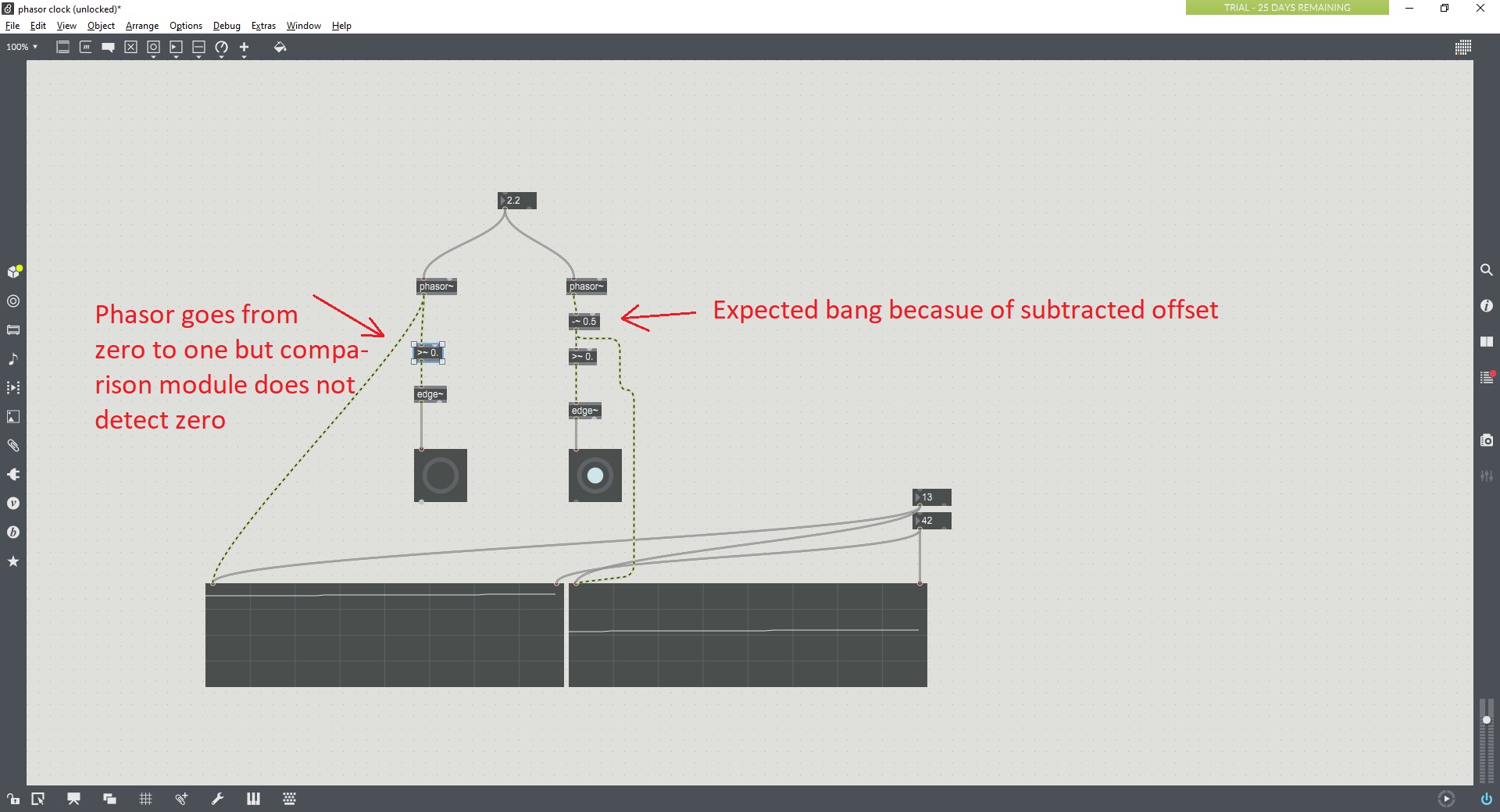

See screnshot and patch
{
"patcher" : {
"fileversion" : 1,
"appversion" : {
"major" : 8,
"minor" : 1,
"revision" : 5,
"architecture" : "x64",
"modernui" : 1
}
,
"classnamespace" : "box",
"rect" : [ 34.0, 77.0, 1852.0, 929.0 ],
"bglocked" : 0,
"openinpresentation" : 0,
"default_fontsize" : 12.0,
"default_fontface" : 0,
"default_fontname" : "Arial",
"gridonopen" : 1,
"gridsize" : [ 15.0, 15.0 ],
"gridsnaponopen" : 1,
"objectsnaponopen" : 1,
"statusbarvisible" : 2,
"toolbarvisible" : 1,
"lefttoolbarpinned" : 0,
"toptoolbarpinned" : 0,
"righttoolbarpinned" : 0,
"bottomtoolbarpinned" : 0,
"toolbars_unpinned_last_save" : 0,
"tallnewobj" : 0,
"boxanimatetime" : 200,
"enablehscroll" : 1,
"enablevscroll" : 1,
"devicewidth" : 0.0,
"description" : "",
"digest" : "",
"tags" : "",
"style" : "",
"subpatcher_template" : "",
"assistshowspatchername" : 0,
"boxes" : [ {
"box" : {
"bufsize" : 42,
"calccount" : 13,
"id" : "obj-19",
"maxclass" : "scope~",
"numinlets" : 2,
"numoutlets" : 0,
"patching_rect" : [ 229.0, 670.0, 459.0, 133.0 ]
}
}
, {
"box" : {
"id" : "obj-18",
"maxclass" : "number",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "", "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 1134.0, 579.0, 50.0, 22.0 ]
}
}
, {
"box" : {
"id" : "obj-17",
"maxclass" : "number",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "", "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 1134.0, 549.0, 50.0, 22.0 ]
}
}
, {
"box" : {
"bufsize" : 42,
"calccount" : 13,
"id" : "obj-14",
"maxclass" : "scope~",
"numinlets" : 2,
"numoutlets" : 0,
"patching_rect" : [ 694.0, 670.0, 459.0, 133.0 ]
}
}
, {
"box" : {
"id" : "obj-13",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 694.0, 324.0, 40.0, 22.0 ],
"text" : "-~ 0.5"
}
}
, {
"box" : {
"id" : "obj-9",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 694.0, 369.0, 36.0, 22.0 ],
"text" : ">~ 0."
}
}
, {
"box" : {
"id" : "obj-10",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "bang", "bang" ],
"patching_rect" : [ 694.0, 438.0, 42.0, 22.0 ],
"text" : "edge~"
}
}
, {
"box" : {
"id" : "obj-12",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 691.0, 279.0, 52.0, 22.0 ],
"text" : "phasor~"
}
}
, {
"box" : {
"id" : "obj-8",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 694.0, 498.0, 68.0, 68.0 ]
}
}
, {
"box" : {
"id" : "obj-7",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 496.0, 498.0, 68.0, 68.0 ]
}
}
, {
"box" : {
"id" : "obj-5",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 496.0, 364.0, 36.0, 22.0 ],
"text" : ">~ 0."
}
}
, {
"box" : {
"id" : "obj-4",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "bang", "bang" ],
"patching_rect" : [ 496.0, 417.0, 42.0, 22.0 ],
"text" : "edge~"
}
}
, {
"box" : {
"format" : 6,
"id" : "obj-3",
"maxclass" : "flonum",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "", "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 603.0, 169.0, 50.0, 22.0 ]
}
}
, {
"box" : {
"id" : "obj-1",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 499.0, 279.0, 52.0, 22.0 ],
"text" : "phasor~"
}
}
],
"lines" : [ {
"patchline" : {
"destination" : [ "obj-19", 0 ],
"order" : 1,
"source" : [ "obj-1", 0 ]
}
}
, {
"patchline" : {
"destination" : [ "obj-5", 0 ],
"order" : 0,
"source" : [ "obj-1", 0 ]
}
}
, {
"patchline" : {
"destination" : [ "obj-8", 0 ],
"source" : [ "obj-10", 0 ]
}
}
, {
"patchline" : {
"dest
{
"patcher" : {
"fileversion" : 1,
"appversion" : {
"major" : 8,
"minor" : 1,
"revision" : 5,
"architecture" : "x64",
"modernui" : 1
}
,
"classnamespace" : "box",
"rect" : [ 34.0, 77.0, 1852.0, 929.0 ],
"bglocked" : 0,
"openinpresentation" : 0,
"default_fontsize" : 12.0,
"default_fontface" : 0,
"default_fontname" : "Arial",
"gridonopen" : 1,
"gridsize" : [ 15.0, 15.0 ],
"gridsnaponopen" : 1,
"objectsnaponopen" : 1,
"statusbarvisible" : 2,
"toolbarvisible" : 1,
"lefttoolbarpinned" : 0,
"toptoolbarpinned" : 0,
"righttoolbarpinned" : 0,
"bottomtoolbarpinned" : 0,
"toolbars_unpinned_last_save" : 0,
"tallnewobj" : 0,
"boxanimatetime" : 200,
"enablehscroll" : 1,
"enablevscroll" : 1,
"devicewidth" : 0.0,
"description" : "",
"digest" : "",
"tags" : "",
"style" : "",
"subpatcher_template" : "",
"assistshowspatchername" : 0,
"boxes" : [ {
"box" : {
"bufsize" : 42,
"calccount" : 13,
"id" : "obj-19",
"maxclass" : "scope~",
"numinlets" : 2,
"numoutlets" : 0,
"patching_rect" : [ 229.0, 670.0, 459.0, 133.0 ]
}
}
, {
"box" : {
"id" : "obj-18",
"maxclass" : "number",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "", "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 1134.0, 579.0, 50.0, 22.0 ]
}
}
, {
"box" : {
"id" : "obj-17",
"maxclass" : "number",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "", "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 1134.0, 549.0, 50.0, 22.0 ]
}
}
, {
"box" : {
"bufsize" : 42,
"calccount" : 13,
"id" : "obj-14",
"maxclass" : "scope~",
"numinlets" : 2,
"numoutlets" : 0,
"patching_rect" : [ 694.0, 670.0, 459.0, 133.0 ]
}
}
, {
"box" : {
"id" : "obj-13",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 694.0, 324.0, 40.0, 22.0 ],
"text" : "-~ 0.5"
}
}
, {
"box" : {
"id" : "obj-9",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 694.0, 369.0, 36.0, 22.0 ],
"text" : ">~ 0."
}
}
, {
"box" : {
"id" : "obj-10",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "bang", "bang" ],
"patching_rect" : [ 694.0, 438.0, 42.0, 22.0 ],
"text" : "edge~"
}
}
, {
"box" : {
"id" : "obj-12",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 691.0, 279.0, 52.0, 22.0 ],
"text" : "phasor~"
}
}
, {
"box" : {
"id" : "obj-8",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 694.0, 498.0, 68.0, 68.0 ]
}
}
, {
"box" : {
"id" : "obj-7",
"maxclass" : "button",
"numinlets" : 1,
"numoutlets" : 1,
"outlettype" : [ "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 496.0, 498.0, 68.0, 68.0 ]
}
}
, {
"box" : {
"id" : "obj-5",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 496.0, 364.0, 36.0, 22.0 ],
"text" : ">~ 0."
}
}
, {
"box" : {
"id" : "obj-4",
"maxclass" : "newobj",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "bang", "bang" ],
"patching_rect" : [ 496.0, 417.0, 42.0, 22.0 ],
"text" : "edge~"
}
}
, {
"box" : {
"format" : 6,
"id" : "obj-3",
"maxclass" : "flonum",
"numinlets" : 1,
"numoutlets" : 2,
"outlettype" : [ "", "bang" ],
"parameter_enable" : 0,
"patching_rect" : [ 603.0, 169.0, 50.0, 22.0 ]
}
}
, {
"box" : {
"id" : "obj-1",
"maxclass" : "newobj",
"numinlets" : 2,
"numoutlets" : 1,
"outlettype" : [ "signal" ],
"patching_rect" : [ 499.0, 279.0, 52.0, 22.0 ],
"text" : "phasor~"
}
}
],
"lines" : [ {
"patchline" : {
"destination" : [ "obj-19", 0 ],
"order" : 1,
"source" : [ "obj-1", 0 ]
}
}
, {
"patchline" : {
"destination" : [ "obj-5", 0 ],
"order" : 0,
"source" : [ "obj-1", 0 ]
}
}
, {
"patchline" : {
"destination" : [ "obj-8", 0 ],
"source" : [ "obj-10", 0 ]
}
}
, {
"patchline" : {
"dest
@ward
Please post compressed patchers. They're easier to open.
https://cycling74.com/forums/how-to-post-patches-to-the-forum/
why this works for click~ but not for phasor~ is one of the biggest mysteries in MSP world.
however, you can reach what you want by using an offset:
[phasor~ 1.]
[+~ 0.1]
[>~ 0.1]
[edge~]
now both(!) outputs of edge report a transition :)
the interesting thing is that using [==~ 0.] or [==~ 1.] also wont work, where [==~ 0.5] does. think about that.
but it is even more strange:
if you connect a click~ to edge~ you can convert a trigger to a bang just as expected.
and if you convert phase to trigger using
[delta~]
[!-~ 0.]
you get a proper click - which works for driving a sah~ in order to control another phasor~, just as with the click~ object.
but if you combine the two and do
[phasor~]
[delta~]
[!-~ 0.]
[edge~]
it still doesnt work.
:)
@roman
Is it so strange? Phasor may not or (likely) won't hit zero or one. Between floating point precision and 1/frequency, it moves from .995 to 0.0012 or something. You thus cannot catch the edge with ==~ 0 or ==~ 1.
Delta~ works.
Or maybe <~ epsilon, epsilon equals something like 1/512, depending what precision tick you need.
that´s right, you could use minor shift for the >, which is small enough not to cause a delay for some 1 ms (scheduler rate, edge isnt more accurate) - and then you dont need the + offset.
or you could use line~ instead of phasor~ :D
oh btw.
"Between floating point precision and 1/frequency, it moves from .995 to 0.0012 or something"
it actually starts at 0. and that is enough to get a signal which allows to detect "nonzero to zero" transitions.
that is why [+~ 0.1] [>~ 0.1] works.
the issue @ward ist seeing is something else: edge~ (and zerox~ for that matter) might output at scheduler rate, but of course poll values from audio only once per vector.
Thank for the answers guys , really helpfull and sorry for the code text pollution .
