v8ui floating windows
Hi,
is it possible to create a floating windows only with a v8ui object.
The idea is to see the v8ui in the m4l device and be able to zoom it in a floating window.
Ideally I don't want to duplicate the object in patcher for cpu consumption.
For now I'm embedding the v8ui object in a bpatcher using [pcontrol] to open a floating windows with the v8ui inside.
As [thispatcher] is not working with bpatcher (which is a big limitation) pcontrol is ok but not ideal.
I can spot two issues from what you say: v8ui works badly if you have multiple views of it at different sizes, and you cannot have a floating bpatcher window.
So what you could do instead is to have
one v8ui instance in the main patch for the "embedded" view
a second v8ui instance in a subpatcher ([p], not [bpatcher]) that you can open as a floating window
possibly disable drawing on the embeded v8ui when the floating window is opened.
If your v8ui not only displays stuff but is also critical for processing data, then you need to make sure that only one of them is processing data, and probably always the same, depending on the logic and amount of data.
A second solution that might actually be simpler to implement is to draw your mgraphics canvas into a jitter matrix that you could then display either in a jit.pwindow (embedded version) or a floating jit.window. See this patch to know how to go from mgraphics to matrix.
You could even use v8 instead of v8ui for this (mgraphics would still work).
ok - your answer confirmed me what I was suspecting.
I have to found the best solution.
Maybe I'll split the device between graphic and data ...
For now it's "ok"
MGraphics is too far from where I am in the development
Does that mean that you'll tackle the UI drawing part later on, or that you are using sketch or something else for now?
Maybe I'll split the device between graphic and data
This might be the best bet in the long term. Doing so will force you to format data in a way that is easily transferable from one Max object to another (probably as a dict or array depending on the nature of your data).
Also, I don't know if it matters in your case, but v8 objects don't run in the scheduler thread like most other Max objects, which means that if timing accuracy is critical, you might want to process your data outside of v8 anyway.
But if timing is not critical, then the simplest method might still be to rely on only one v8 for data processing + drawing, pass the image as a matrix that you'll draw to a [jit.pwindow] or [jit.window]. Main caveat would be if you need interactions. With v8ui you can use the very convenient onidle() , onclick(), onscroll(), ondrag(), etc. But if you rely on jitter objects for drawing, then you'll be left with their right outlet output giving you the mouse position and click state on hover, and work from that.
This might be the best bet in the long term. Doing so will force you to format data in a way that is easily transferable from one Max object to another (probably as a dict or array depending on the nature of your data).
I thought I could do that but the graphic and note generation are intricate.
I don't need a "perfect" timing, not at an audio level.
The v8ui is parsing data and graphics is only the visualisation no interaction.
Does that mean that you'll tackle the UI drawing part later on, or that you are using sketch or something else for now?
sorry I mixed up to things, I'm using Mgraphics for the UI that work perfectly fine for my device !
I only wish that we could resize a floating window, to get a wider view of the graphic elements.
But the limitation at only patcher and not bpatcher is a shame.
Ok, I thought the idea of having an extra floating view of a v8ui was cool, so I gave it a go, starting from the default v8ui template.
How it works:
Define a floating_view attribute, defining if we want to use the extra view in a floating window
Create a
new JitterObject("jit.window")Instead of the default
mgraphicscontext, we draw on a custom one (here calledctx) set to the size of the mgraphics canvas if floating_view disabled, or to twice the jit.window size if floating_view enabled (we double the size to get better results in hidpi screen, although you can disable that in the code)At the end of
paint(), we draw our context into anew Image(), we pass that image to a matrix and send it to the jit.window, and we resize it to draw it in the v8ui as well
This is all you need, although I added a few extra:
Force the jit.window to always be square (just like the default v8ui template, so that both views always have the same aspect ratio, which makes it easier to draw the output in both)
Pass mouse interactions from
jit.window(obtained throughJitterListener) to ondrag(), onclick() to preserve interactions in the floating window.
All my additions to the original code have comments starting with // ***
Feel free to chime in here if you struggle to adapt the logic to your own code!
I only wish that we could resize a floating window, to get a wider view of the graphic elements.
Not sure what you mean here. Unless explicitly constrained, you can definitely resize a floating window.
Maybe a tip about this:
When I open a copy, the floating window starts showing error with jit_matrix
that's an amazing contribution ! thanks you TFL
This all I needed, rescaling / resizing ....
Also. I don't know much about mgraphics- how do I send message to these var?
They not showing up in attributes.
When I open a copy, the floating window starts showing error with jit_matrix
Ah, I forgot to clean some debug code which was outputing the jit_matrix from the outlet. I updated the patch in my previous post.
that's an amazing contribution ! thanks you TFL
This all I needed, rescaling / resizing ....
I'm glad it helped!
I'm glad it helped!
Sooo much !
Also. I don't know much about mgraphics- how do I send message to these var?
They not showing up in attributes.

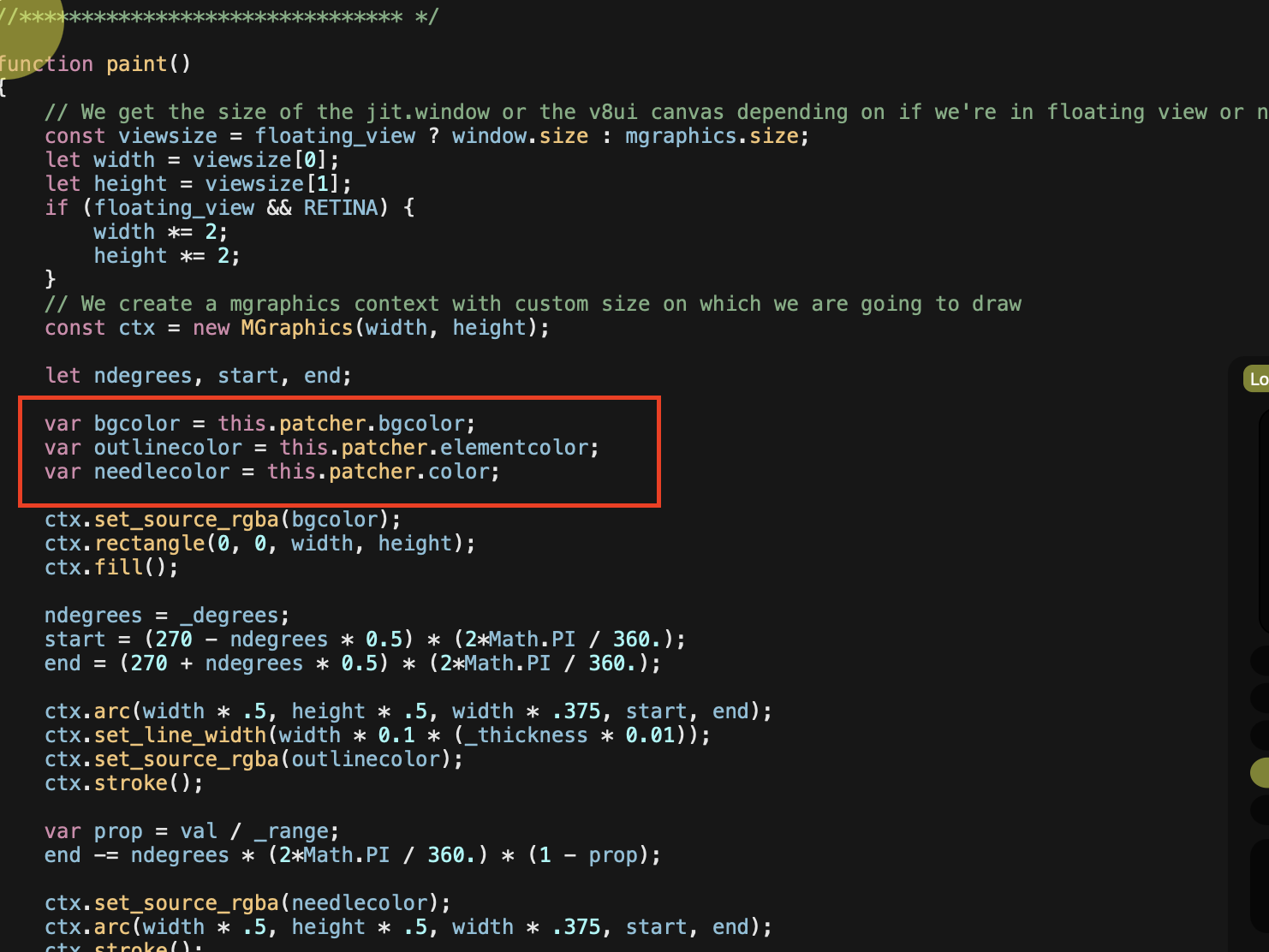

The template code checks the patchers colors, I guess it's a little trick to match the current theme color, but you might indeed prefer to set those colors manually from the patch.
For simple var variables, they need to be declared in the global scope (not just in paint() like it is the case currently), and then you can set them by sending messages like setprop bgcolor 0.2 0.2 0.2 1 , but it won't cause the object to redraw automatically, so not so good for visual-related variables.
If you want to see them in the object inspector or [attrui], then you need to declare them as attributes using declareattribute().
For a color, it could typically look like such (add this in the global scope and remove var bgcolor = this.patcher.bgcolor; from paint()):
var bgcolor = [0.2, 0.2, 0.2, 1];
declareattribute("bgcolor", {embed: 1, style: "rgba", label: "Background Color", category: "Appearance"});The category: "Appearance" part makes the attribute to appear under the "Appearance" section of the object's inspector, at the top.
For a color, it could typically look like such...Indeed. Got it! Thanks!
For those who are chomping at the bit about this (no, only me! chomp chomp)
Here is some 'click logic'
one click under 300ms open floating window
hold longer than 300ms and turn original dial (no popup)
(have to click on original dial to close popup window)
@WIL: you can do all that into the v8ui code directly!
The additions:
const doubleClickDebounce = 300; // in ms
const singleClickTsk = new Task(toggleFloatingView);
function toggleFloatingView(){
setFloating(!floating_view);
}
// ...rest of the code
function onclick() {
singleClickTsk.schedule(doubleClickDebounce);
// ...rest of the code
}
function ondrag() {
if (singleClickTsk.running) singleClickTsk.cancel();
// ...rest of the code
}
function ondbclick() {
if (singleClickTsk.running) singleClickTsk.cancel();
// ...rest of the code
}
function notifydeleted() {
if (singleClickTsk) singleClickTsk.freepeer();
// ...rest of the code
}A few explanation:
When you click on the [v8ui] (or [jit.window], although that's something we might want to prevent from happening), the singleClickTsk Task gets scheduled to run in 300ms (the value of doubleClickDebounce). If a ondrag() or ondoubleclick() event gets triggered in the meantime, we cancel that scheduled singleClickTsk. Otherwise, if nothing happens in the next 300ms (ie. you hold your click without dragging), then it triggers toggleFloatingView() . The behavior is a bit different than in your patch, but I found it a bit more practical (you can perform double clicks to reset the value without toggling the floating view twice).
Regarding the interaction itself, I'm not sure if it's the best idea, there is definitely room for improvement.
EDIT: when you toggle the floating view this way, the [attrui] for floating_view doesn't update itself, it's a known issue. If you lock/unlock the patch it should update.
When you click on the [v8ui] (or [jit.window], although that's something we might want to prevent from happening),I kind of like that you can close and open from both - maybe give an option -
I will be adapting most of my controls to use on screen mirroring when I can afford a new iPad - I don't think all the tiny controls I have jammed into a single device will be big enough for finger (and provided that new Apple OS functions as advertised - and that finger touch click actually works in screen mirroring.)
so I want to try the most comfortable and practical solutions - I can test this with Apple Pencil and start designing sliders and different dial types and sizes and screen placement based on this template. See what feels best.
Thanks!
wow this so cool !
I was able to integrate it to my patch quiet easily !
a limitation that I discovered.
If you select another track, the visualisation stop his animation.
I'm trying to find a solution ...
Ah yes, it's even probably the case as soon as the v8ui isn't visible on the screen.
You can probably tackle that purely in code by storing the computer time of each redraw, and if the delay is too long then the object isn't auto-redrawing anymore and then you can run a Task to do it. If the delay gets too small then the auto redraw is running again and you can stop the task.
With patching you could do something like [active]>[!- 1]>[qmetro 33]>"force_redraw">[v8ui] and force_redraw would be a function that calls mgraphics.redraw() only if floating view is enabled.
I'll try something in a day or two.
Ah yes, it's even probably the case as soon as the v8ui isn't visible on the screen.
exactly, if the device is not visible in the live view, the v8ui stop his animation.
I'll try the force_redraw.
I'll keep you in touch !
