"KeyMidi" extras - how to use ? (Noob question)


    Jun 26 2017 | 8:16 pm
    Hi folks
    Can't understand, how to play through KeyMidi (virtual midi keyboard which built in Max) ?
    For example, I tried select in "MIDI Output Device" list of KeyMidi "Delta AP MIDI" (which active in MIDI Setup as input and output), and run for example PGS-1 max synth, run audio, and select in PGS-1 midiin "Delta AP MIDI". Tried play to virtual keyboard but nothing occur. Also, tested this through "MIDI Tester" - the same, nothing.
    (But for example, if i select in KeyMidi "Microsoft GS Wavetable Synth" i hear GM piano result. Also, i tried plug my hardware USB midi keyboard into max - works properly.)
    So, how to activate MidiKey for max devices (or how it can be activated in MIDI Tester at least) ?
    Win7 64bit

    • Feb 02 2019 | 12:33 pm
      Hello!

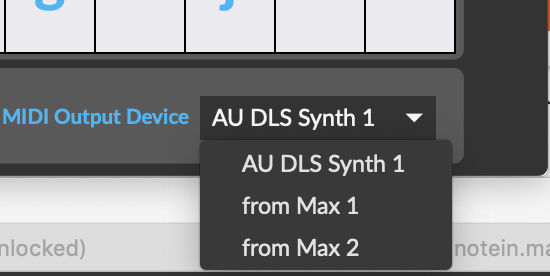

      Looks, like I have exactly the same issue. Here is what I see in KeyMIDI output device list:

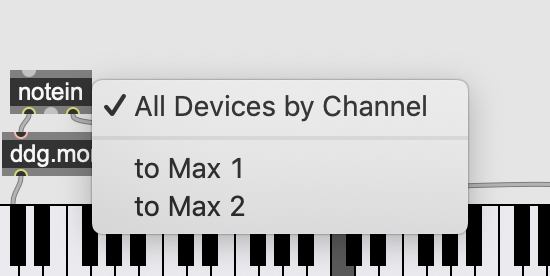

      And here is what I see, when double-clicking notein:

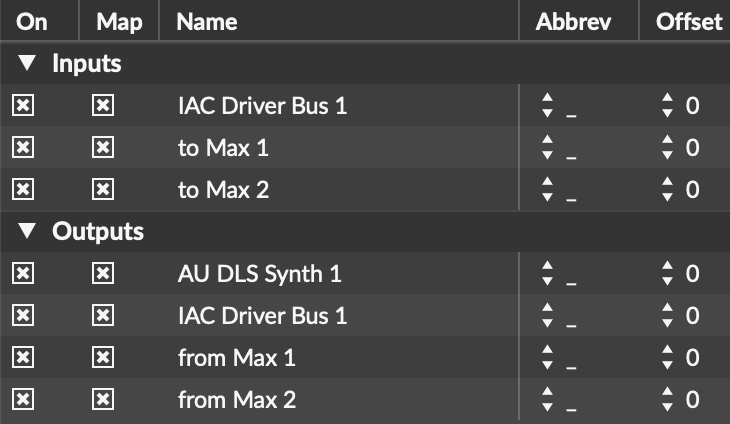

      So, there is no 'to Max' ports in KeyMIDI. Why? Both of them are enabled in Max MIDI setup:
      I was able to connect KeyMIDI by enabling IAC Driver Bus in system preferences, but the question remains: why there are no 'to Max' ports in KeyMIDI? Is this a bug (I'm using Max8/MacOS Mojave)?
    • Feb 09 2019 | 9:35 am
      OK. I was wrong trying to find MIDI inputs in umenu which lists MIDI outputs. So, the easiest way to connect KeyMIDI output to the midiin/notein input is to set IAC Driver Bus output (make KeyMIDI to send MIDI to this output) and IAC Driver Bus input (make midiin/notein to receive MIDI from this input).
