[you may need this] Multichannel output plugin export

Peter Nyboer's icon

I'm posting this because I'm sure someone will search the forum for multichannel out RNBO plugins before they find it in the manual!

It took me a bit to find this, but I did, and met with some success.
I have a RNBO patch with 6 audio outs. I initally tried to export as a VST3, but the outputs did not show up in Bitwig 4.4.8 or in Live 11.2.10.
I then found this bit in the RNBO manual about exporting, where you label the outputs with the "@meta bus <name>" tag. Once I exported with unique bus names on the [out~] objects, the DAWs recognized the plugin as multi-out. Yay!

Here's how you get the individual outs from Live and from Bitwig.

multiple channels output
multiout plugin

Jan M's icon

Thanks for sharing this! I know I eventually will run into that problem as well :)

Peter Nyboer's icon

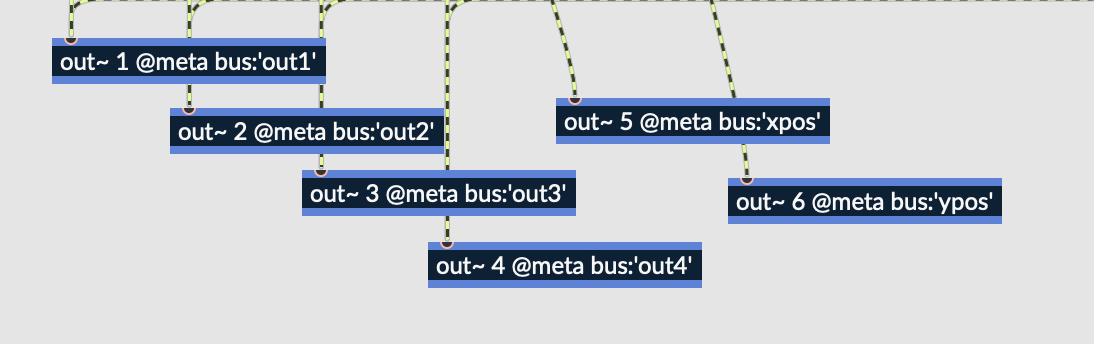

Sure thing. For additional reference, here's what this looks like in a patch:

Joaquin Jimenez's icon

Thank you! Just what I needed!
