Audio clip end to trigger a bang/ event/
hello everyone!! I'm a max newbie here ! I have a doubt with regards my project I want the end of my audioclip to trigger certain events but I cannot seem to figure out how to retrieve a bang/ toggle or even a 0 -1 from an audiofile. I've been struggling with this for the past two days and would appreciate any suggestions. P.S - im using groove~ to play my clip
hi new b DEB DEB!

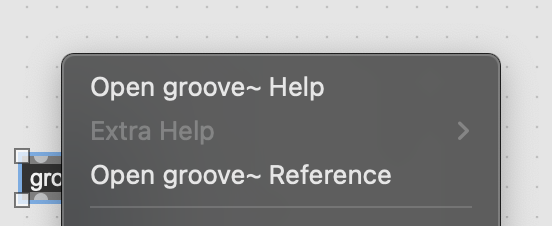

right click on groove~ to open help file.
go to the third tab -> sync
you can find the information you are looking for.
Thank you for your prompt response,
It works Now!!! Thank you so much !!! <3 <3 <3
I changed the value to 1 but the edge still wont bang! :/

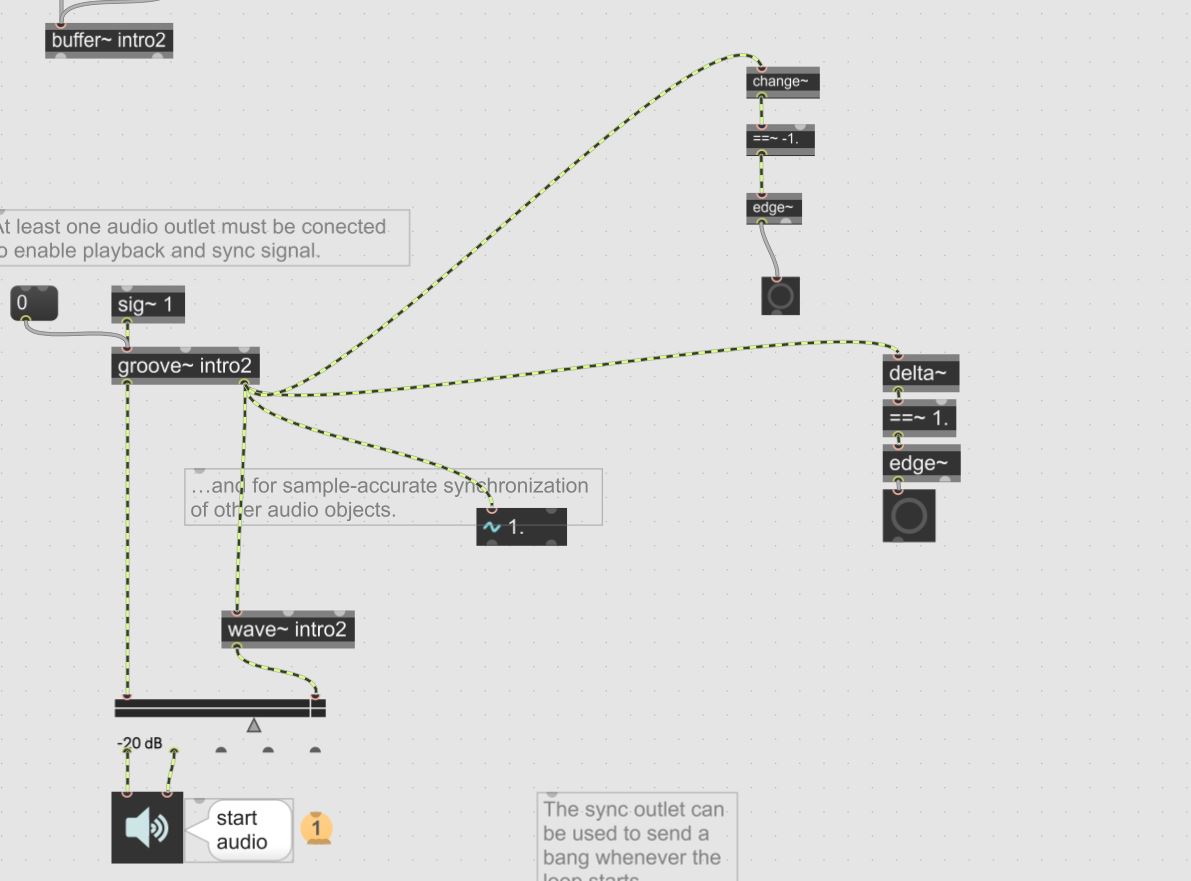

Put some scopes and number~
You can see that delta~ is detecting the amount of change between each signal value as it changes.
So while it is ramping up, the value is near 0. then when it changes from 1 to 0 the value is -1.
with change~ it is detecting change in direction. So if the change is continuously up there is no change. Then when it sees the change in direction, it out puts that there was a change in direction.
Then you can see what happens with the rect~ .
Maybe some more knowledgeable folks will chime in and deeper explain my examples. Because truthfully ive been using edge detection without fully understanding.

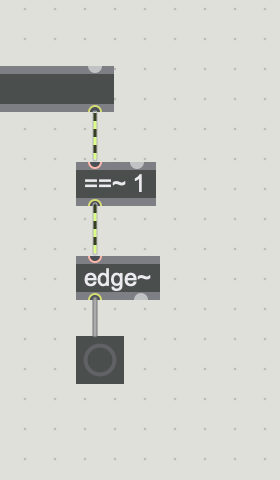

Groove's right output is a phasor that goes from 0 to 1 and reaches 1 at the end of the loop/clip. The edge~ object in the example below sees 0 throughout the clip reading (groove's output signal values are >=0 but strictly < 1), but issues a bang through its left outlet at the very end, when the groove's output signal value suddenly reaches 1 : the ==~ 1 object consequently flips between 0 and 1, which edge~ flags as a 0 to non-zero transition.
Thank you everyone !!! this was very helpful!
Also i was wondering if this could be done with mc.groove~ as well?
Yes it works with mc.groove~ as well.
Example :
