Circular looper overdub with record~ always resets to beginning

Emiliano's icon

Hi everyone,

I'm building a circular looper in Max using buffer~ / groove~ / record~.

Everything works except the overdub behavior: when I activate overdub, record~ always restarts writing from the beginning of the buffer instead of following the current playhead position of groove~.

I understand this is the native behavior of record~ when it receives an int 1 on inlet 0. The toggle driving the overdub is connected directly to record~ inlet 0, which causes the reset.

I've tried:

Removing the toggle record connection and using gate~ to control the audio signal instead

Using poke~ with the sync output of groove~ multiplied by the buffer size in samples

Neither approach worked correctly in my setup.

The gate~ approach still has issues, and the poke~ approach introduced other problems.

The patch is a stereo looper with blend control (sound-on-sound style), tape noise via gen~, and wow/flutter. I'm attaching a screenshot.

The question: what is the correct, reliable way to overdub into a buffer~ following the exact playhead position of groove~, without resetting the write position on activation?

This is the pathc

circularbuf.maxpat
Max Patch

Any working example or approach would be hugely appreciated. Thanks!

Source Audio's icon

take a look at patch I posted Mar 24, 2026, 10:49 AM

you can easilly extend it to stereo

or use groove~ as clock master, with few dissadvantages

compared to count~ poke~ index combo.

Emiliano's icon

Thank you as always, I’ve adapted it into a stereo version:)

Emiliano's icon

It works fairly well in my case, with a 48k sample rate and a vector size of 512, which I adjusted in the latency section. However, I still sometimes notice a kind of micro-delay shift in the sound. I’ve tried different resolutions, but the problem seems to persist.

I made a short video of two tracks layered on Bandcamp, captured from my ADC, and you can notice how the first source seems to have a slightly anomalous playback in terms of timbre.

Source Audio's icon

sorry, but I have no time for watching videos.

upload your patch, I am willing to look at it

Emiliano's icon

Thanks this is the modified pathc

looper.maxpat
Max Patch

Source Audio's icon

What is that dial in samplecount path supposed to do ?

you should leave count~ together with latency compensation exactly as it is

in original patch.

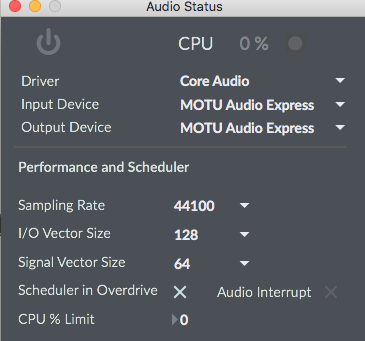

Which vector size are you mentioning ?

latency should be properly measured for given

audio settings.

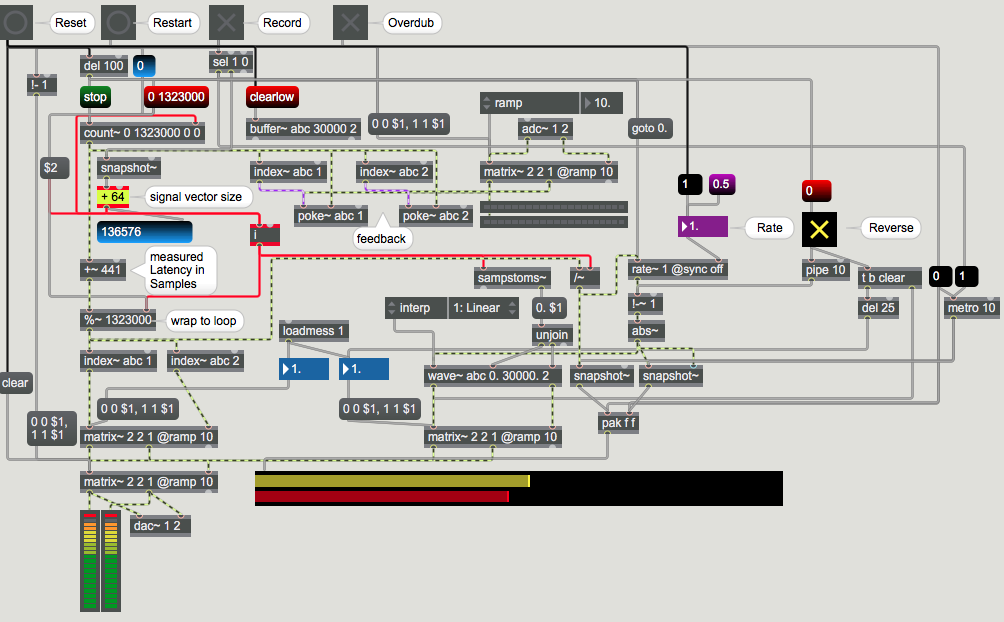

this is clean stereo looper:

Max Patch
Copy patch and select New From Clipboard in Max.

If you want to vary playback speed, then one could use rate~ and wave for example,

but that is another thing.

Emiliano's icon

Thank you, the looper patch makes it clear. I'll remove the samplecount path and rely on latency compensation as in your version. Appreciated.

Source Audio's icon

can you measure real latency ?

Otherwise it does not really help.

there is or was latency tester patch somewherer in max examples or extras,

I don't know as I delete all that tutorials and similar stuff.

Source Audio's icon

here is a variant of what I suggested,

you can blend normal and varispeed as you want maybe in a single 4 2 matrix~

Max Patch
Copy patch and select New From Clipboard in Max.

Emiliano's icon

Thanks for the variant! I can't really explain why, but with this version the micro-delay I was hearing before is gone, and it sounds timbrally much better probably something in the buffer handling makes the difference.

The one thing that doesn't seem to work for me is variable speed in this version it doesn't respond as expected.

thanks

Source Audio's icon

I think you wanted differents speed control,

sync off, and no reverse.

But I will add reverse just in case ...

here is modified patch.

You might want to scale your speed input to rate factor.

I can't add that not knowing the details about range of speed you want.

Max Patch
Copy patch and select New From Clipboard in Max.

now normal playback and varispeed playback have own volume control,

last matrix is there just to mute output where needed.

One could do all that using a single matrix~ as well.

varispeed playback is out of sync with normal one,

I would not know how to deal with that myself, also

in terms of overdubbing, but that's what you wanted,

or at least what I understood from the patch you posted.

Emiliano's icon

Thank you for your time and help. The buffer fills correctly (meters show signal), but playback produces no audio. The index~ reads the buffer but nothing comes out of the final matrix~ to dac~. Any idea what I'm missing?

Source Audio's icon

No idea.

if meters at main matrix~ show signal then you have

not set dac~ outputs correctly.

I added reverse toggle init ...
