filtergraph multiple filters?

Chaz Dean's icon

Hi!

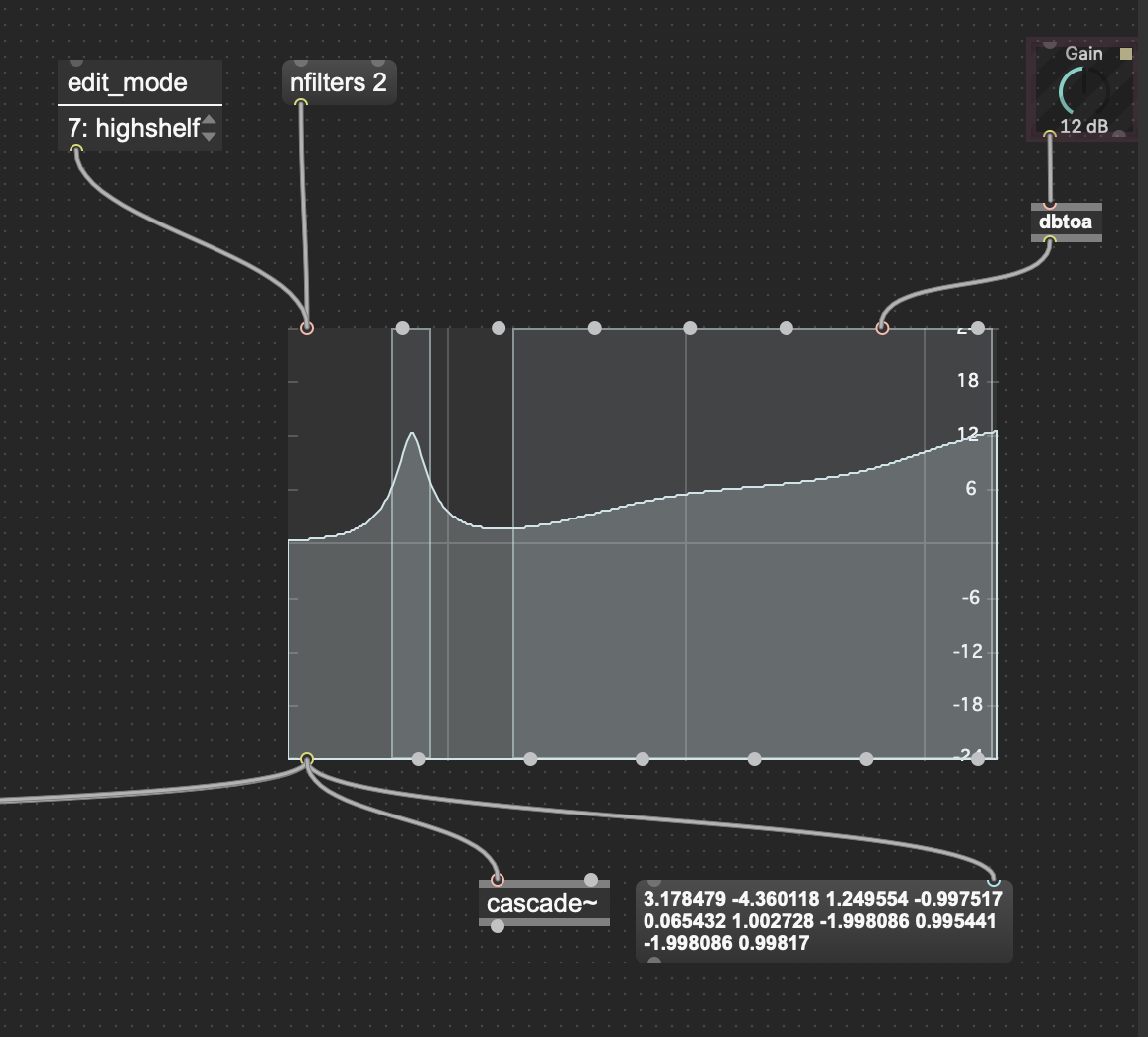

VERY beginner here. I'm trying to use the cascade with filtergraph, and can't figure out how to choose the mode/type of filter for the second filter (see pic). Adding another Attrui doesn't seem to work, nor does attaching it to the cascade. Any help appreciated! (o:
g

Roman Thilenius's icon


you might have to set some default values for filter #2 before you can see and touch the second selector.

Chaz Dean's icon

Hmm, I’ll give that a shot -thanks!

Chaz Dean's icon

I thought it was going to work, but no such luck. The second filter doesn't seem to actually do anything (and the mode is still not editable from the dropdown. Thoughts?

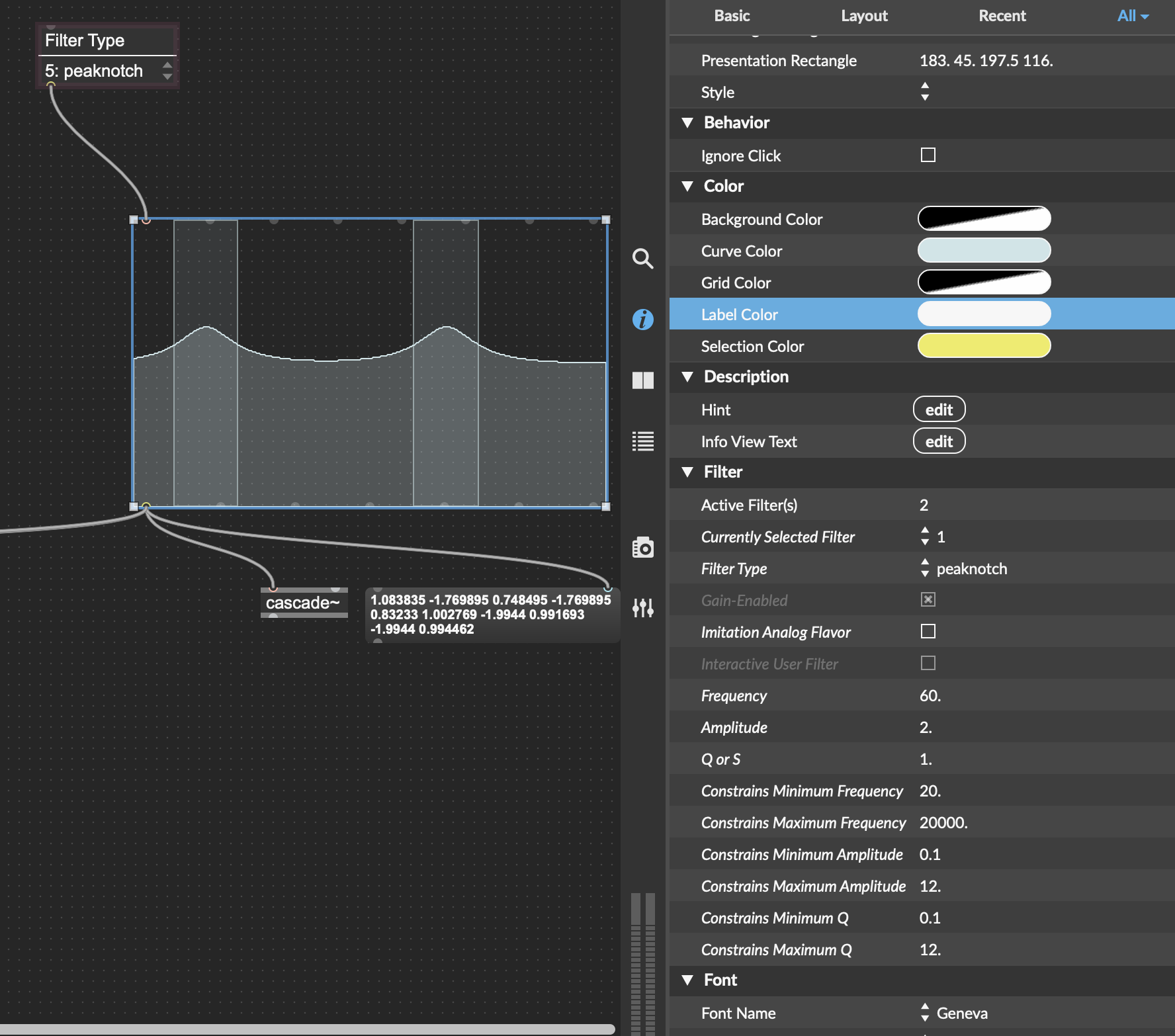

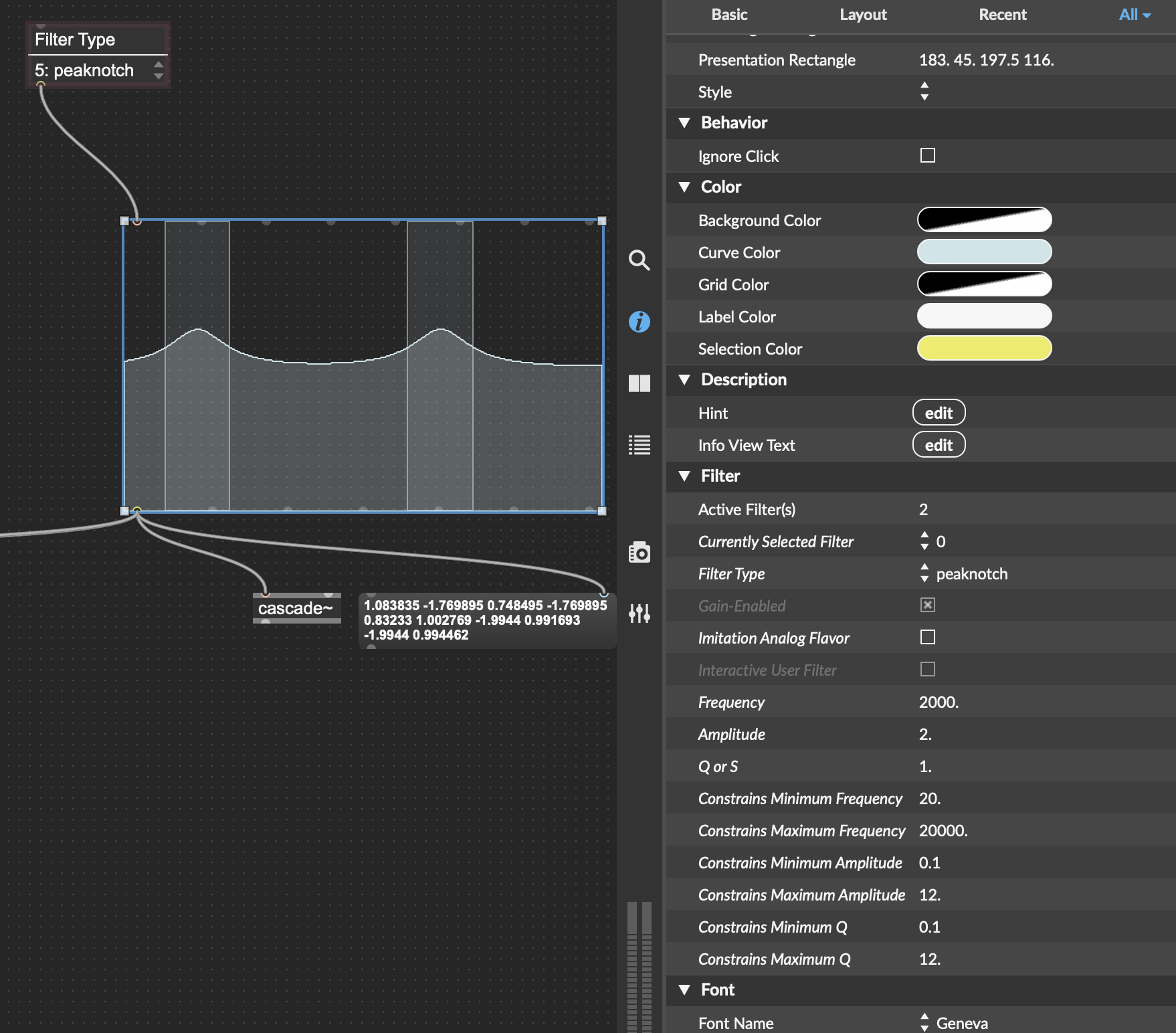

Original filter (0)

second filter ("1")

Thanks a bunch!

volker böhm's icon

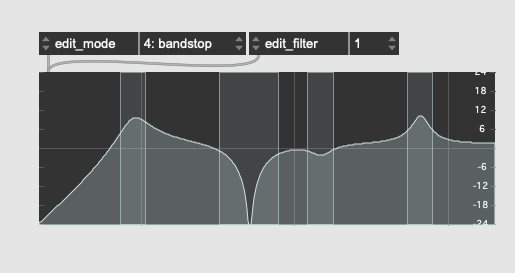

use the 'edit_filter' attrui or message to select a filter index ('currently selected filter' in the inspector).

Chaz Dean's icon

Awesome! I’ll give it a go

Chaz Dean's icon

The edit_filter selector worked to select and change the filter type -thanks! Interestingly, any subsequent filters dont actually affect the sound. Any idea why? Thanks again
