Belquer

Hello! I have a max for live device in a session with a few send/returns. Using the LOM documentation I was able to have the device see the ids of the sends on a track. But I could not find anywhere where you are able to track the values if the the send dials are tweaked.

For example: Live gives me ids 207 208 209 for sends A B C. Now I change the value of the A dial from 100 to 30. Where is that change being tracked? How can I see the value change?

Hello! I have a max for live device in a session with a few send/returns.

how-to-receive-send-values

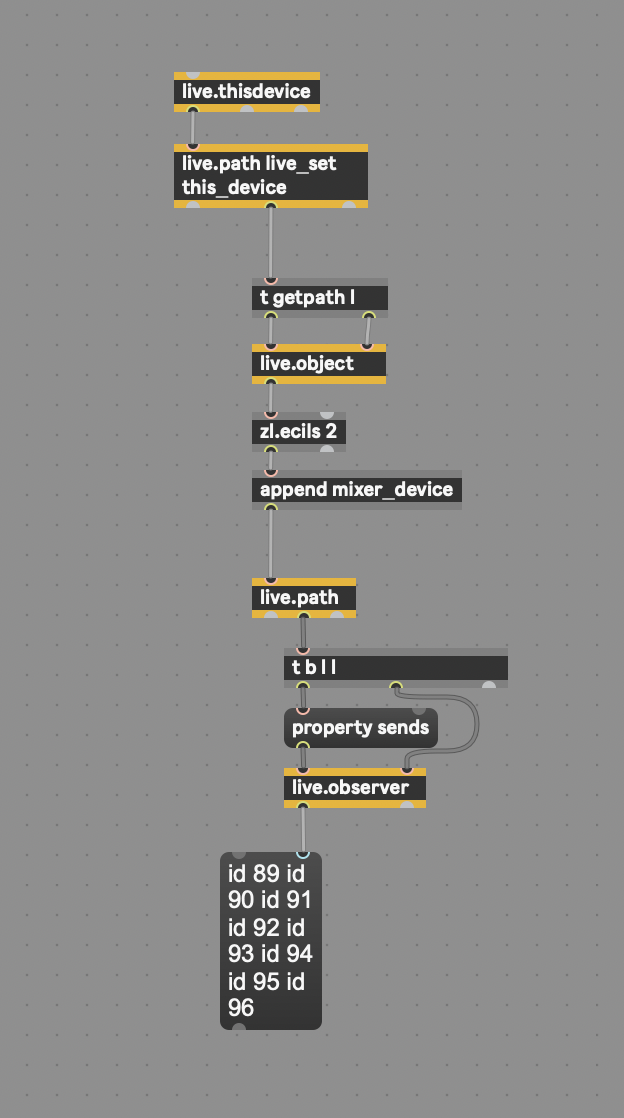

UG, thanks for your reply. I’m already using live.observer (pic attached). But I don’t know how to extract the values from the dials.


Hey DOUBLE_UG, thanks for your reply. I’m already using live.observer (pic attached). But I don’t know how to extract the values from the dials.

Each Send requires its own observer. It needs the id from the path 'live_set tracks X mixer_device sends Y' (where Y=0 for A etc) and the message should be 'property value'. Notice that the output values are float numbers 0..1.

Hey Broc, thank you so much, it totally worked! Lifesaver man!

How to receive send values?
