Mapping "FM-from-B"

Chaz Dean's icon

Chaz Dean

9月 09 2024 | 8:56 午後

Hewwo,

I'm surprised that I haven't been able to find a Serum-like 'FM-from-B' m4l device out there, in which the frequency of an audio signal can be mapped to parameters in Live similarly to the Envelope Follower device. I've fooled around with retune~ and it is providing me with reasonable frequency data, ...

BUT: I can't figure out how to convert that data into useable input for the Abl. MultiMap patcher. The output of the mapping seems binary even after I used the scale object (input 0-20,000; output 0-1.) and regardless of the min / max settings in the device's UI.

Any help appreciated!

"Chaz"

Chaz Dean's icon

Chaz Dean

9月 09 2024 | 9:06 午後

Here's my current attempt:

G - FM-B 3.8.amxd
amxd

Roman Thilenius's icon

Roman Thilenius

9月 10 2024 | 3:15 午前

[clip 80 16000]
[ftom 0.]
[/ 127.]

Chaz Dean's icon

Chaz Dean

9月 10 2024 | 5:25 午前

Thanks for the suggestion, Roman. Like this?

G - FM-B 4.3.amxd
amxd

It still seems to only yield binary modulation, though.

Roman Thilenius's icon

Roman Thilenius

9月 10 2024 | 8:39 午後

i did not look into your patches before.

you already have a slide~ in there which would have been my next recommendation

retune~ has its own "correction" feature so we can skip that stuff, too.

yes, there. scaling and distortion is the last step. the ftom~ object is a bit weird, it requires a float argument to output non-truncated signal values, like the max original does, too.

because of the way midi works (key 1-127 == 8.1-12500 hertz) you can often start such calculations with these factory objects. no idea if you also require to [clip~ 0. 1.] the range to perfection, but i would do.

some more ideas, just ignore me if it does not apply/if i misunderstood.

you seem to only use the center frequency here. it is more common to first in line use the amplitude envelope of B in order to FM A with that.

however, since you can look at traditional 2-sines-FM as having two parameters, the modulation amount and the freqeuency of the modulation oscillator, you could also make use of 2 control signals, the pitch and the amplitude envelope derived of B.

this gives you alltogether 4 different methods how to do B FM A. :)

Chaz Dean's icon

Chaz Dean

9月 10 2024 | 11:26 午後

Thanks, trying it now! (o:

Chaz Dean's icon

Chaz Dean

9月 11 2024 | 6:37 午前

It's alive!

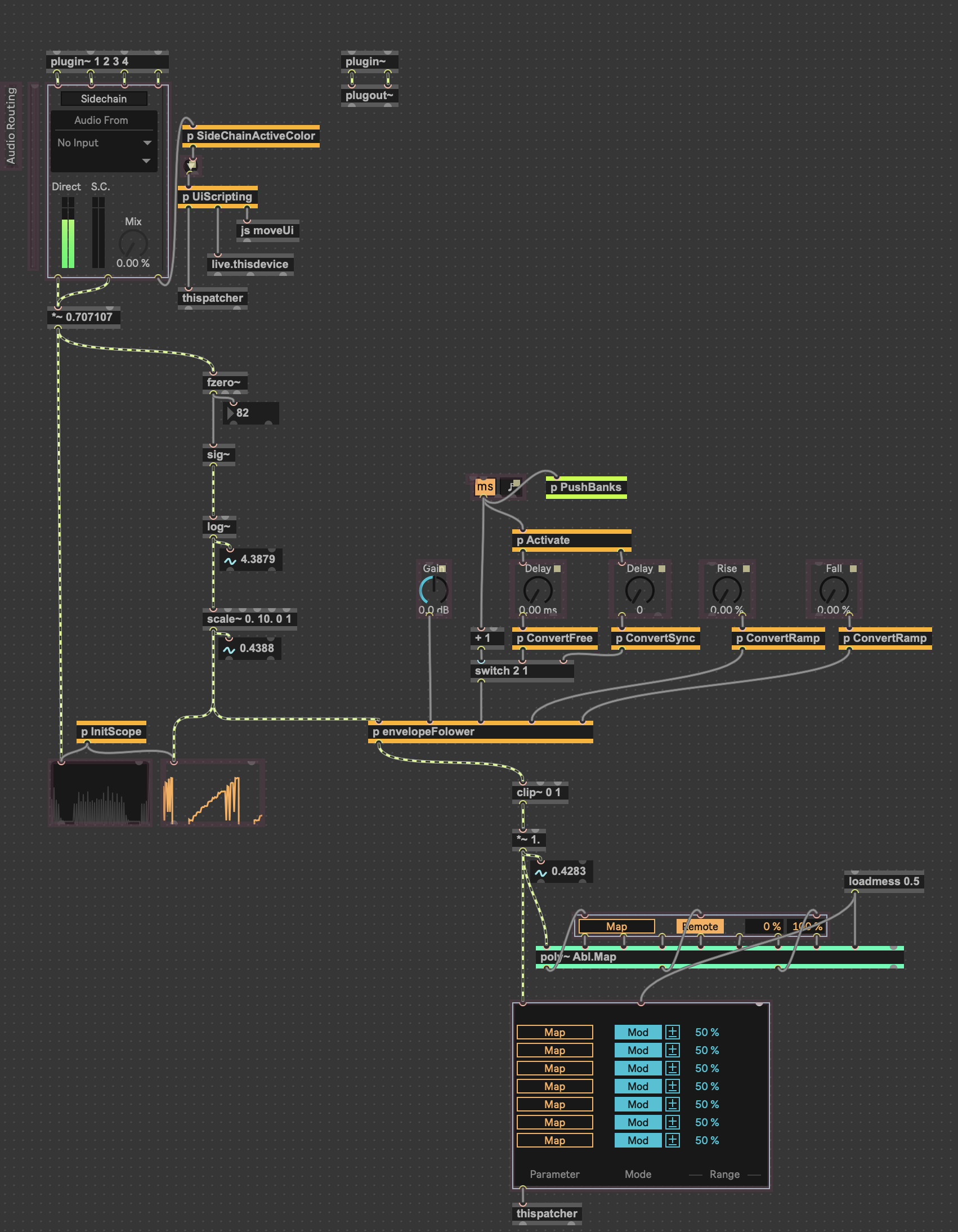

Thanks for feedback. What is working for me at this point is: [fzero] → [sig~] → [log~] → [scale] before running into both the envelopFollower patcher and the live.scope. This gives me continuous frequency monitoring (not constrained to midi notes), giving me all that beautiful artifacty modulation.

FM-b wip.mov

Roman Thilenius's icon

Roman Thilenius

9月 11 2024 | 6:10 午後

yep, and fzero is cheaper.
