Jason Dirkx

I am able to export a simple RNBO patch to my Rpi 3 a+ that has the firmware loaded on the SD card. And I'm also able to choose my connected audio interface (Roland Go:Mixer). But I am not getting any sound from it. Am I forgetting something, or is rpi 3 a+ not compatible?

I checked my Roland Go:mixer with other sources, such as laptop/phone and it does work with those.


Hi,
I am able to export a simple RNBO patch to my Rpi 3 a+ that has the firmware loaded on the SD card. And I'm also able to choose my connected audio interface (Roland Go:Mixer). But I am not getting any sound from it. Am I forgetting something, or is rpi 3 a+ not compatible?

Hi,
I am able to export a simple RNBO patch to my Rpi 3 a+ that has the firmware loaded on the SD card.

no-sound-with-rnbo-export-to-raspberry-pi-3-a

I wonder if that audio interface might have a software mixer and the volume is turned down?

You might try sshing into your Pi and running"alsamixer" to see

https://rnbo.cycling74.com/learn/raspberry-pi-setup#further-configuration-with-ssh

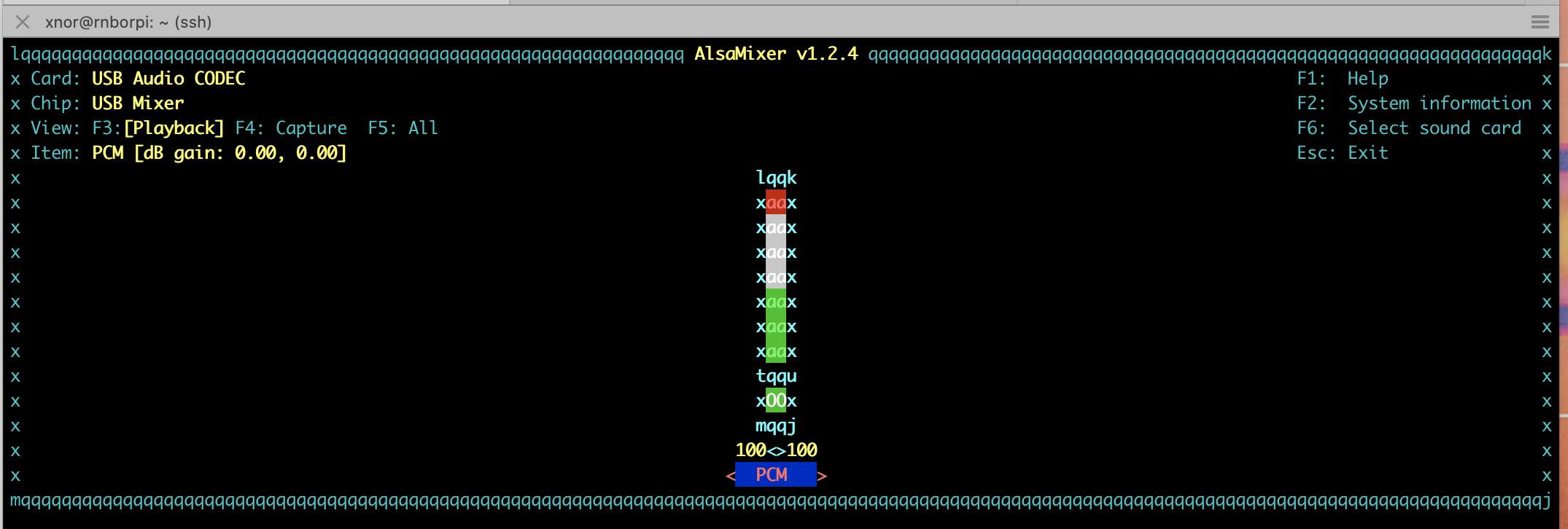

using alsamixer you should be able to select that interface and see what kind of software controls it exposes, maybe there is a volume to turn up. Below is a capture of alsamixer controlling a USB audio interface I'm using, I've turned the PCM up there.

Screen Shot 2022-11-16 at 8.39.52 AM.png

https://rnbo.cycling74.com/learn/raspberry-pi-setup#further-configuration-with-ssh

using alsamixer you should be able to select that interface and see what kind of software controls it exposes, maybe there is a volume to turn up. Below is a capture of alsamixer controlling a USB audio interface I'm using, I've turned the PCM up there.

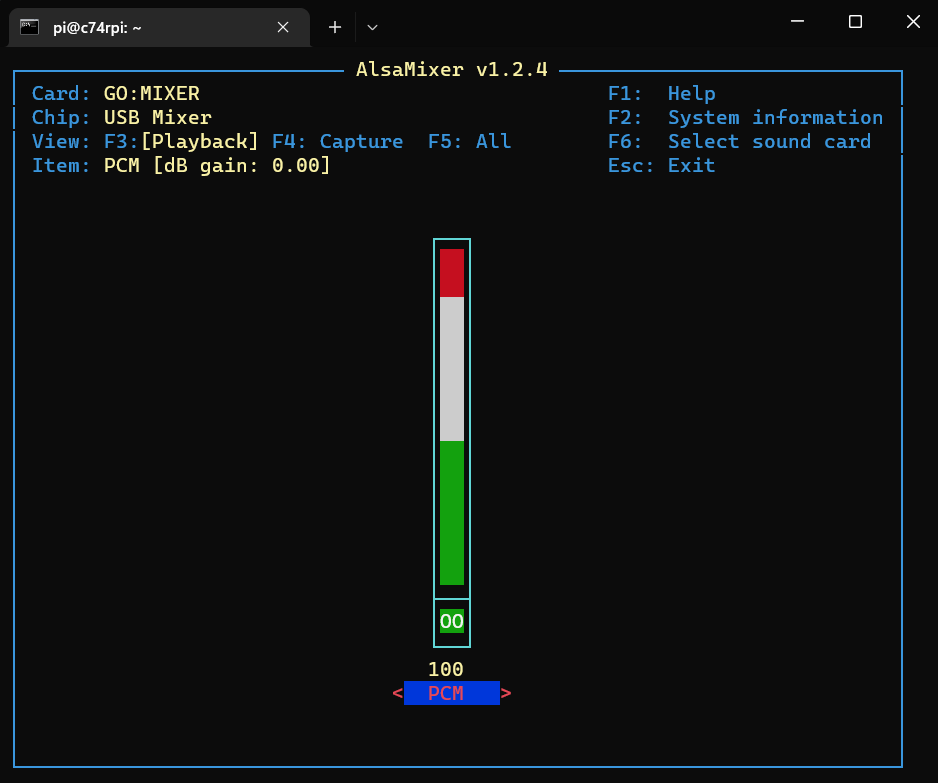

Thx! Didn't think of that. However still no sound after increasing from 46 to 100.

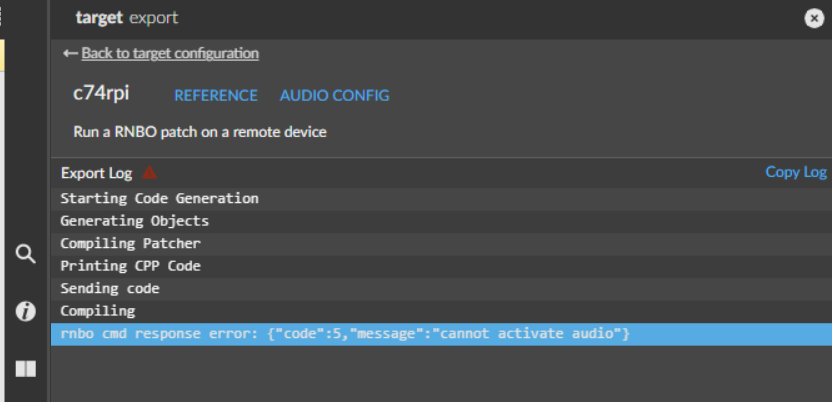

I do get an upload error sometimes. Can we deduce something from this?

I found 2 other usb audio interfaces, and luckily I do get sound with one of them! So It seems that some interfaces just don't work even if they are visible in the audio setup. At least the rpi3A+ is compatible.

No sound with RNBO export to Raspberry Pi 3 a+
