Yoonho Kim

Hi folks, I can't figure this issue out.

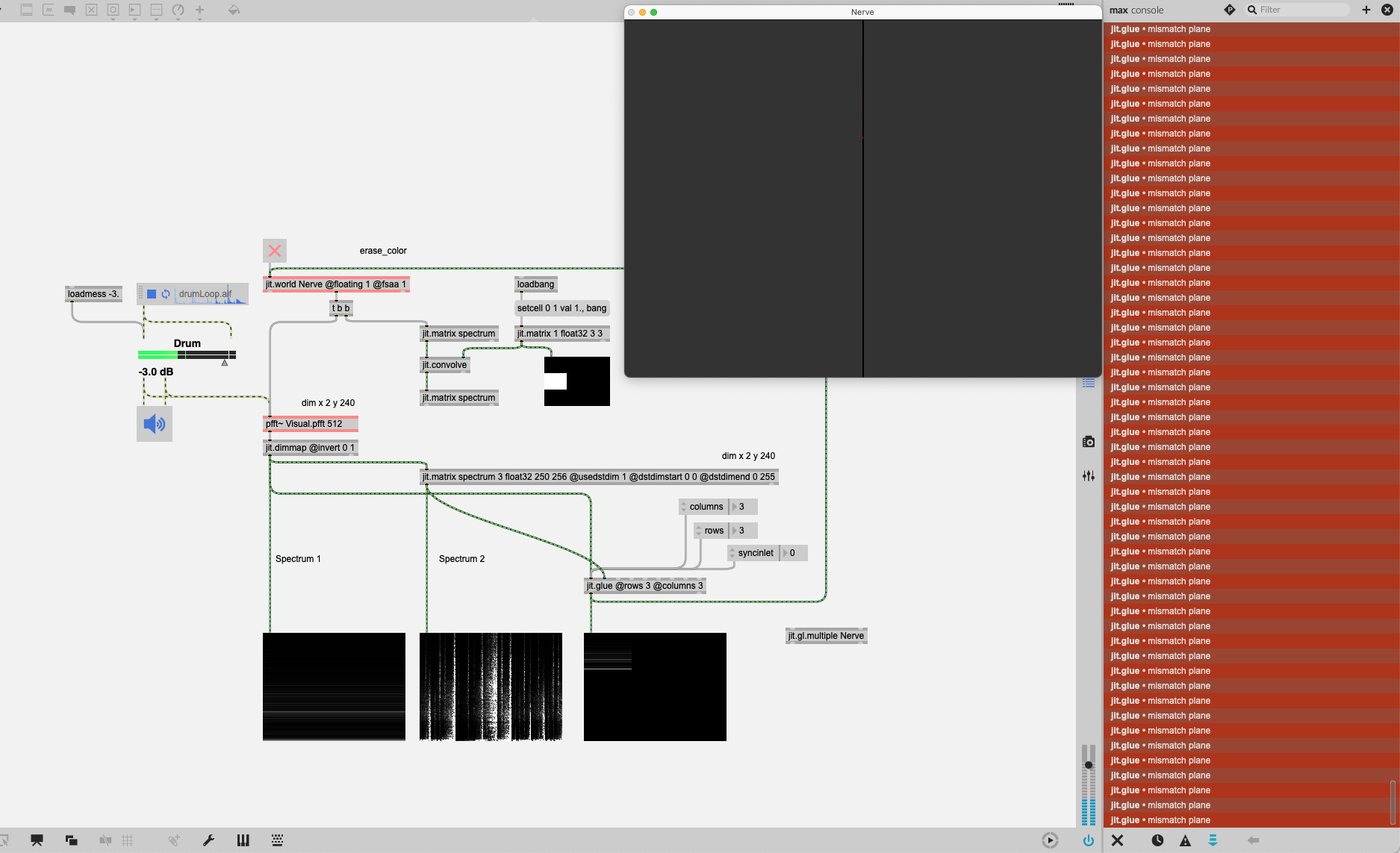

I want spectrum 1 and 2 to show on row 1 and 2.

However, if I connect them to jit.glue, this...

q-different-fft-spectrum-jitmatrix-jitglue-jitworld

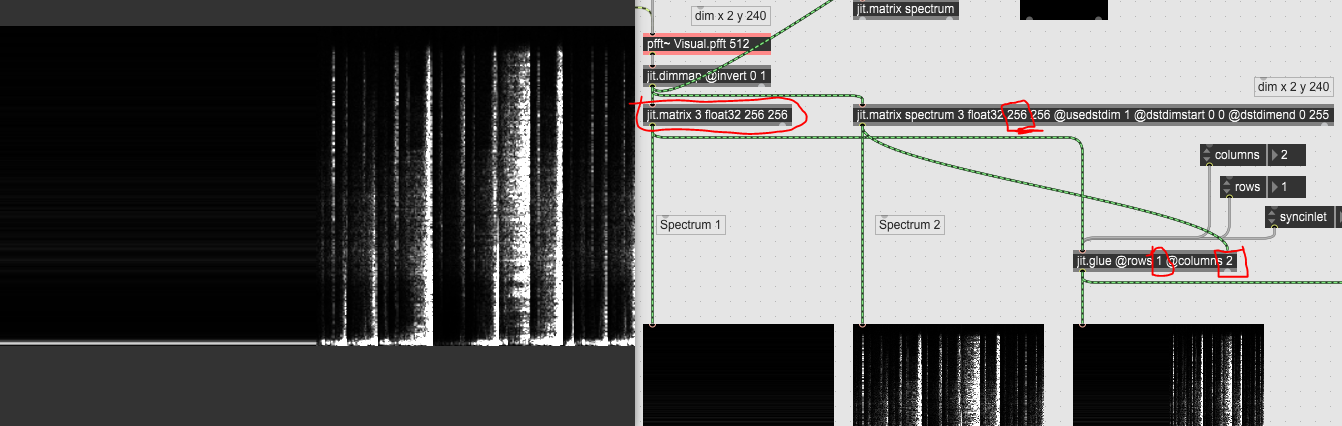

The error message is quite self explanatory, the matrices you send into [jit.glue] don't have the same number of planes, hence the error message. Another problem is that they don't have the same dimension either.

You want them both with 1 or 3 planes and with the same dimension (preferably the largest one in your case).

Oh and you had the wrong number of rows and columns in your [jit.glue]

[jit.fpsgui] is useful to debug such situations.

Q: Different FFT spectrum - jit.matrix, jit.glue, jit.world
