ward de jager

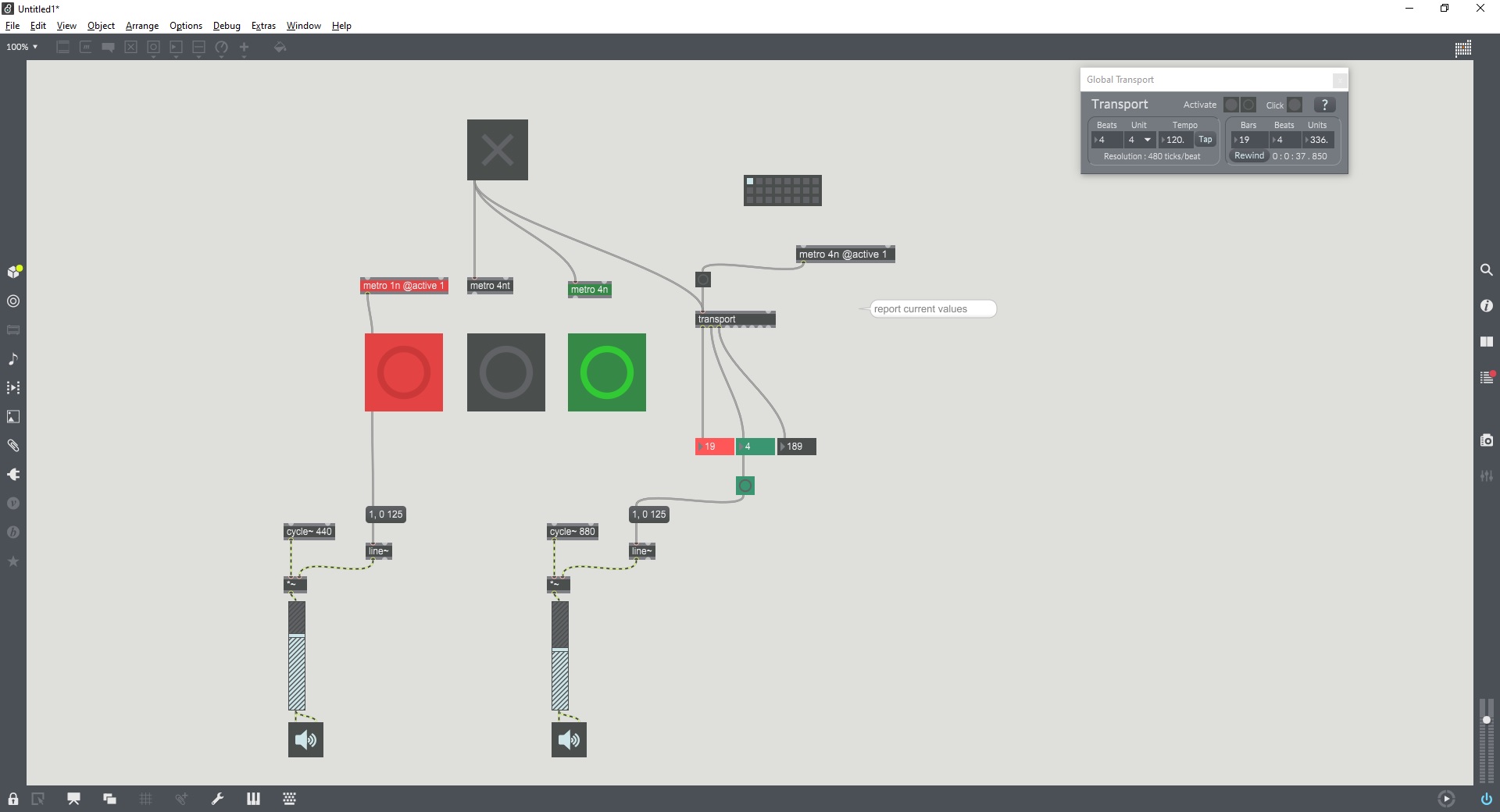

As you can see fro the sreen shot , al is set to follow the transport

Red metro is banging out bars ( cycle~ 440 hz) , green metro bangs out forths , ycle 880 Hz

Now when I start the master toggle it waits for the global transport to be turned on , so far so good , let's show up the master transport and press play

Now when the global transport is playing , stop the toggle in between bars , when re-activating the toggle the number readout of bars (red ) don't line up anymore with the actual sound playing , red metro @ 440hz

What is now correct , the actual readout or the sound playing ?

preset

button

gain~

message

line~

ezdac~

cycle~

number

transport

metro

toggle


As you can see fro the sreen shot , al is set to follow the transport
Red metro is banging out bars ( cycle~ 440 hz)  , green metro bangs out forths , ycle 880 Hz
Now when I start the master toggle it waits for the global transport to be turned on , so far so good , let's show up the master transport and press play

Now when the global transport is playing , stop the toggle in between bars , when re-activating the toggle the number readout of bars (red )  don't line up anymore with the actual sound playing , red metro @ 440hz
What is now  correct ,  the actual readout or the sound playing ?

As you can see fro the sreen shot , al is set to follow the transport
Red metro is banging out bars ( cycle~ 440 hz)  , green metro bangs o

question-about-transport-and-stopping-toggle-while-transport-is-playing

you are currently banging transport and make it report

wouldnt be turning it on and off be what you wanted?

and note the order; tranport is beeing triggered before 2n


you are currently banging transport and make it report its current status.

wouldnt be turning it on and off be what you wanted?

and note the order; tranport is beeing triggered before 2n


I thought banging the transport was the way to make it show bars, beat, units at it's output

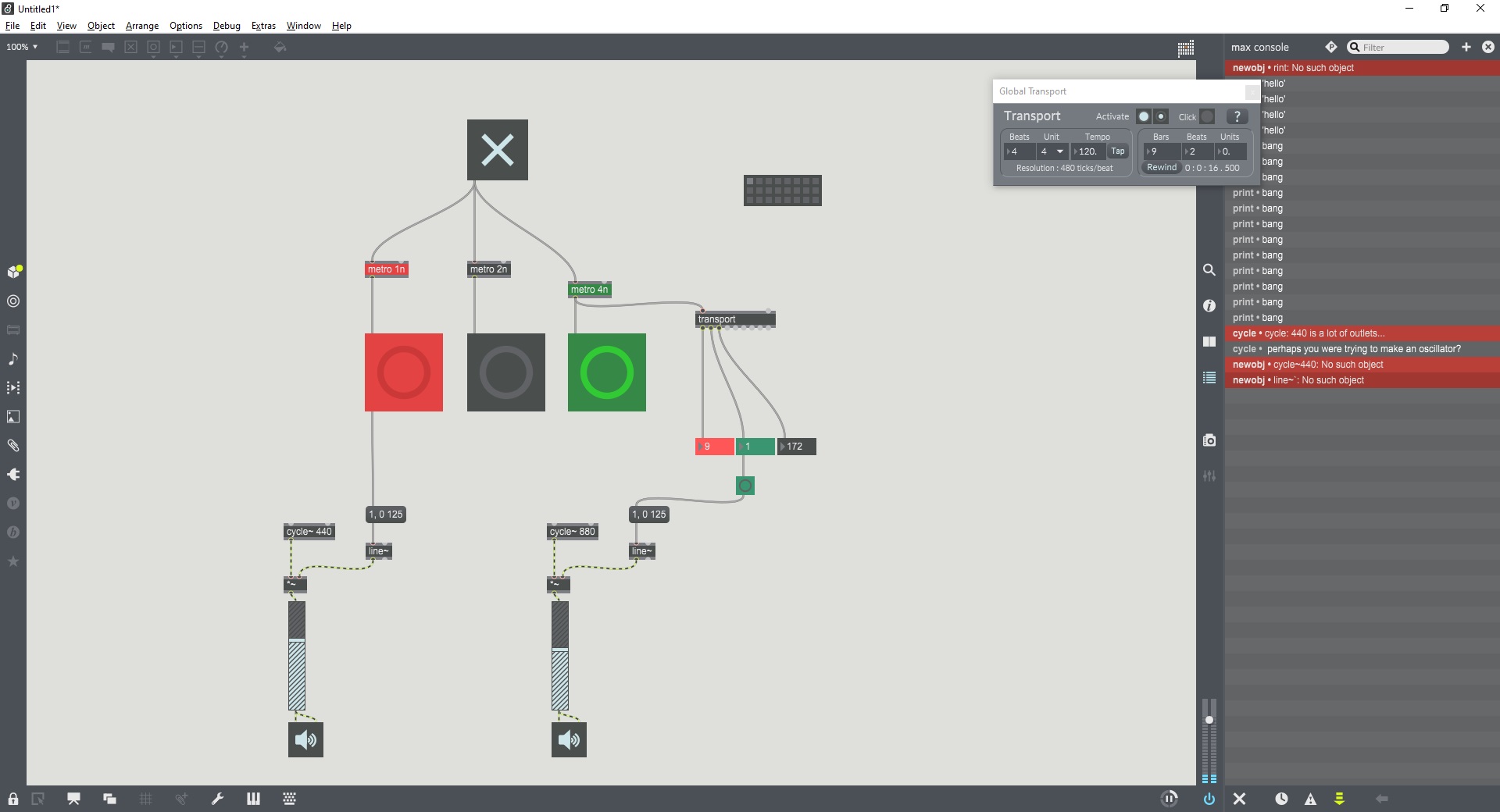

Here 's the same is happening , using metro4n @ active 1 directly to transport , and a metro 1n@active 1(red ) same sync problems .

I thought banging the transport was the  way to make it show bars, beat, units at it's output
Is there another way ?

Here 's the same is happening , using metro4n @ active 1 directly to transport , and a metro 1n@active 1(red ) same sync problems .
This is all getting pretty confusing


Here I got rid of the toggle
Just using @ active argument  , beat and bars are out of sync

I assume the @ active means that the  metro is synced to the master clock , and doesn't need a toggle to start , both are set @active 1 , meaning first transport ?
The manual is not clear about any of this

It would be great if you could alter the patch so it syncs after stopping re-starting the toggle

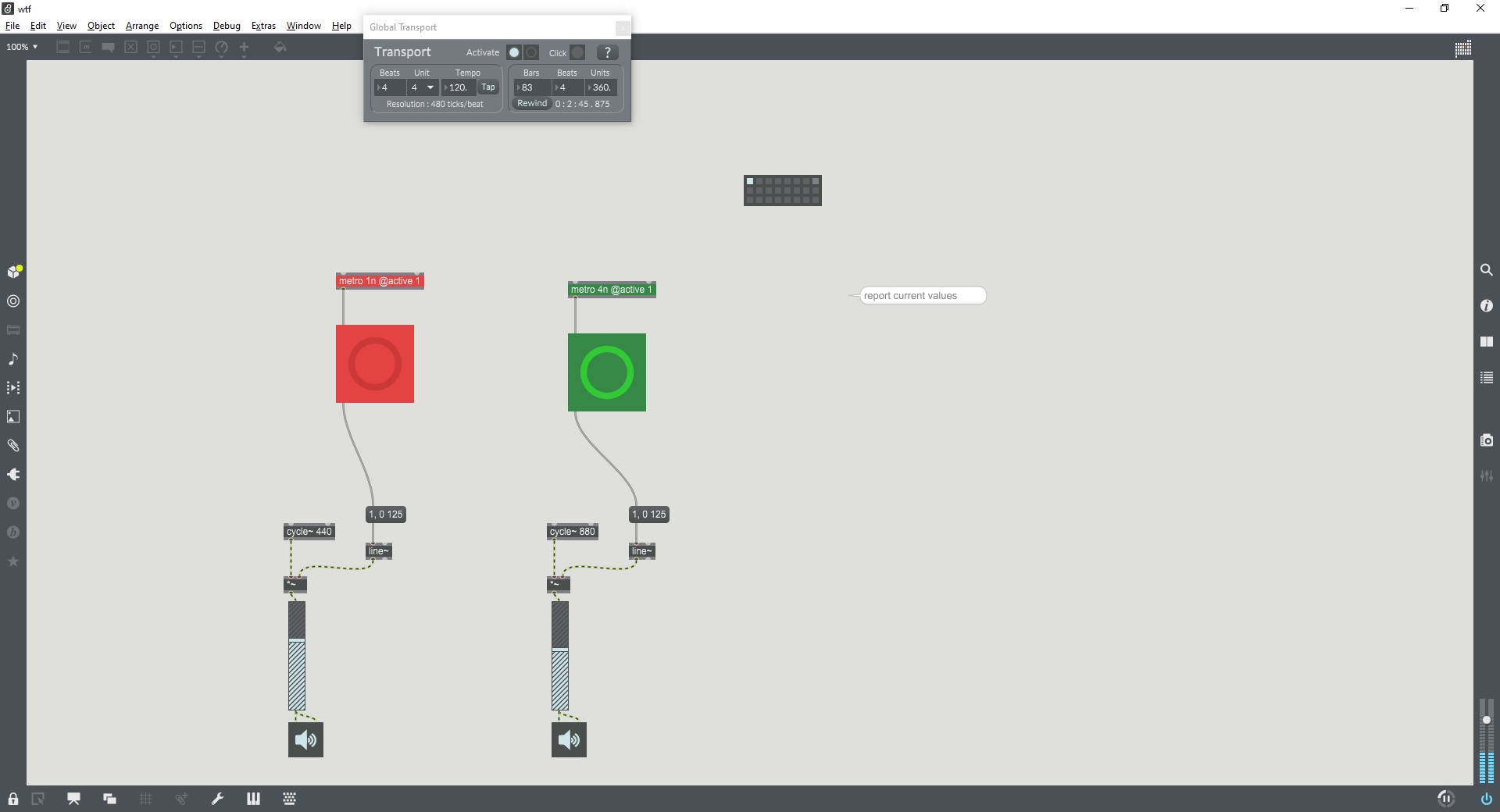

Here both metros set to @active 1 , one is 4n the other 1n

Totally out of sync when transport starts

 Here both metros set to @active 1  , one is 4n the other 1n
Totally out of sync when transport starts



that there is a transport object doesnt mean that you would require that weird thing to do simple stuff. it somehow seems easier to use the metro output to make you own bars and beats display.

the invisible crosslinks between metro and transports are a mystery, i live in a world of milliseconds and counter objects, that seems easier.

back in the days when transport did not exist we had to build it on our own and then it does what you want. :)

i think when you set it to "resetbarcount 1" it should be enough to resend the time signature and it should fully reset to other objects on restart. but i just didnt get it working in m7 either.


that there is a transport object doesnt mean that you would require that weird thing  to do simple stuff. it somehow seems easier to use the metro output to make you own bars and beats display.

the invisible crosslinks between metro and transports are a mystery, i live in a world of milliseconds and counter objects, that seems easier.

back in the days when transport did not exist we had to build it on our own and then it does what you want. :)

i think when you set it to "resetbarcount 1" it should be enough to resend the time signature and it should fully reset to other objects on restart. but i just didnt get it working in m7 either.





the 1n (your last patch) always comes on the "3", it´s wicked.

This is unlocked misterious global transport.

I would not in a dream try to build any tight sequencing around that

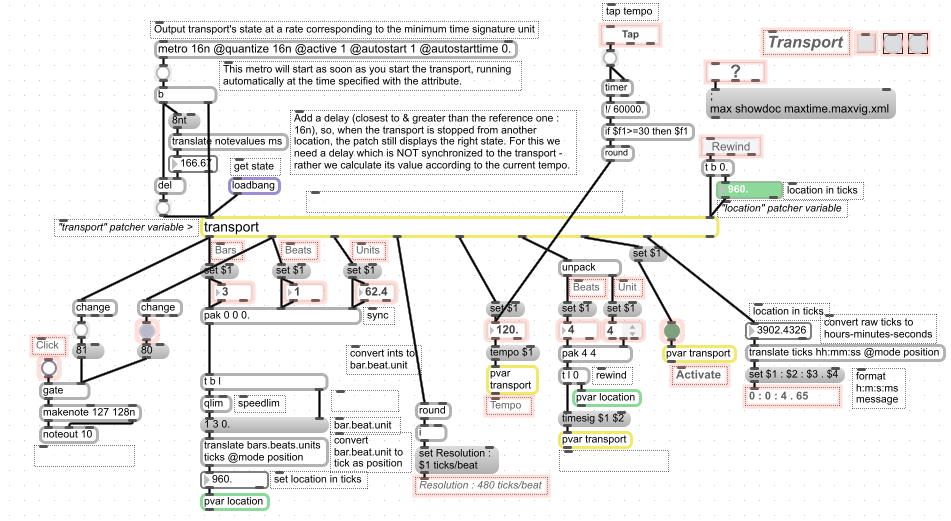

Screen shot 2020-08-14 at 9.25.58 AM.png

This is unlocked misterious global transport.
I would not in a dream try to build any tight sequencing around that


I am not sure wht you guys are trying to say , avoid the transport because it's not tight and use the metro's milliseconds approach ?

That's not a solution at all and merely indicates there is in underlying roblem

For me the metro set to n-values are pretty tight when scheduler overdrive and audio interrupt is on , even when using 32n for rapid hi-hats .

The problem was when stopping and restarting metro's , it loses sync with the main transport .

I wan't to use max for composing and am used to rock solid timing with reaktor ,renoise + architect ( seriously check out loomer's architect , i'ts an amazingmodular midi environment )

If global transport should be avoided and max Millisec. timing is the way to do it I'll probably won't get a subscription ( my demo will run out in a few days )

I am not sure wht you guys are trying to say , avoid the transport because it's not tight and use the metro's milliseconds approach ?
That's not a solution at all and merely indicates there is in underlying roblem
For me the metro set to n-values are pretty tight when scheduler overdrive and audio interrupt is on , even when using 32n for rapid hi-hats .
The problem was when stopping and restarting   metro's  , it loses sync with the main transport .
I wan't to use max for composing and am used to rock solid timing with reaktor ,renoise + architect ( seriously check out loomer's architect , i'ts an amazingmodular midi environment )
If global transport should be avoided and max Millisec. timing is the way to do it I'll probably won't get a subscription ( my demo will run out in a few days )

i know that you are about to check out all objects atm and not build on a concrete project, but transport is one of these objects you usually do not need to make thing work. if can save you a lot of time if you need exactly that - but the more "high level" an object is, the less it contains a general approach useful in many situations.

it is a good all in one solution if you really need to be able to pause and restart a song at any given time position, but everything else seems easier with simple objects.

when i first saw the global transport and

 buttons for "start" "stop" and "resume" like DAWs usually have, i decided to ignore it.

you can see here how fun it can be already only to discuss all the philosophical aspects of bars, beats, crotchets, PPQ, BPM, milliseconds, industry standards and personal needs, the "correct" music theory and best practice programming

https://cycling74.com/forums/tempo-doesnt-respect-time-signature

so it is no wonder that sometimes there are objects not everybody loves or which do not work for you.

like i recently said in a similar thread, if something doesnt work for you, use something different. it doesnt matter if it is a bug or your fault or whatever.

i know that this doesnt answer your original question how to make transport work with metro.

 is fun, that´s a good piece of work. it is very close to what i do with max, but has the better user interface. unfortunately it is very midi focused.


i know that you are about to check out all objects atm and not build on a concrete project, but transport is one of these objects you usually do not need to make thing work. if can save you a lot of time if you need exactly that - but the more "high level" an object is, the less it contains a general approach useful in many situations.

it is a good all in one solution if you really need to be able to pause and restart a song at any given time position, but everything else seems easier with simple objects.

when i first saw the global transport and it didnt even have buttons for "start" "stop" and "resume" like DAWs usually have, i decided to ignore it.

you can see here how fun it can be already only to discuss all the philosophical aspects of bars, beats, crotchets, PPQ, BPM, milliseconds, industry standards and personal needs, the "correct" music theory and best practice programming https://cycling74.com/forums/tempo-doesnt-respect-time-signature

so it is no wonder that sometimes there are objects not everybody loves or which do not work for you.
like i recently said in a similar thread, if something doesnt work for you, use something different. it doesnt matter if it is a bug or your fault or whatever.

i know that this doesnt answer your original question how to make transport work with metro.

oh yeah and architect is fun, that´s a good piece of work. it is very close to what i do with max, but has the better user interface. unfortunately it is very midi focused.


 global transport. as soon as you want to run two tempi side by side, it is already useless. with premade solutions you are bound in chains.


note that transport is the global transport. as soon as you want to run two tempi side by side, it is already useless. with premade solutions you are bound in chains.


I am just trying to see the bigger picture how I could merge the projects together

I have made some nice patches , some for straight 4/4 techie stuff , some more esoteric groove~mangling etc ..all pretty nice .

So the next logical step for me is to tie all these sequences together , I am well aware this wil take effort and time

About architect , yes I am pretty much blown away by it , bought it from day one , and we're almost 2 years in beta stage , amazing knowing it's a one man's creation

THe developer colin as an all round great guy , constantly lisening to user input and updating it , the next update will have gui objects directly accesable from the structure view .

I am just trying to see the bigger picture how I could merge the projects together
I have made some nice patches , some for straight 4/4 techie stuff , some more esoteric groove~mangling etc ..all pretty nice .
So the next logical step for me is to tie all these sequences together , I am well aware  this wil take effort and time
About architect , yes I am pretty much blown away by it , bought it from day one , and we're almost 2 years in beta stage , amazing knowing it's a one man's creation
THe developer colin as an all round great guy , constantly lisening to user input and updating it , the next   update will have gui objects directly accesable from the structure view .


@ roman , you wrote that you use the standard max timing format , may I ask you how you keep things in sync ?

Are you using a master metro clock and simple division, multiplication for other metros ( ake from master metro time 0) ?

@ roman , you wrote that you  use the standard max timing format , may I ask you how you keep things in sync ?
Are you using a master metro clock  and simple division, multiplication for other metros ( ake from master metro time 0) ?

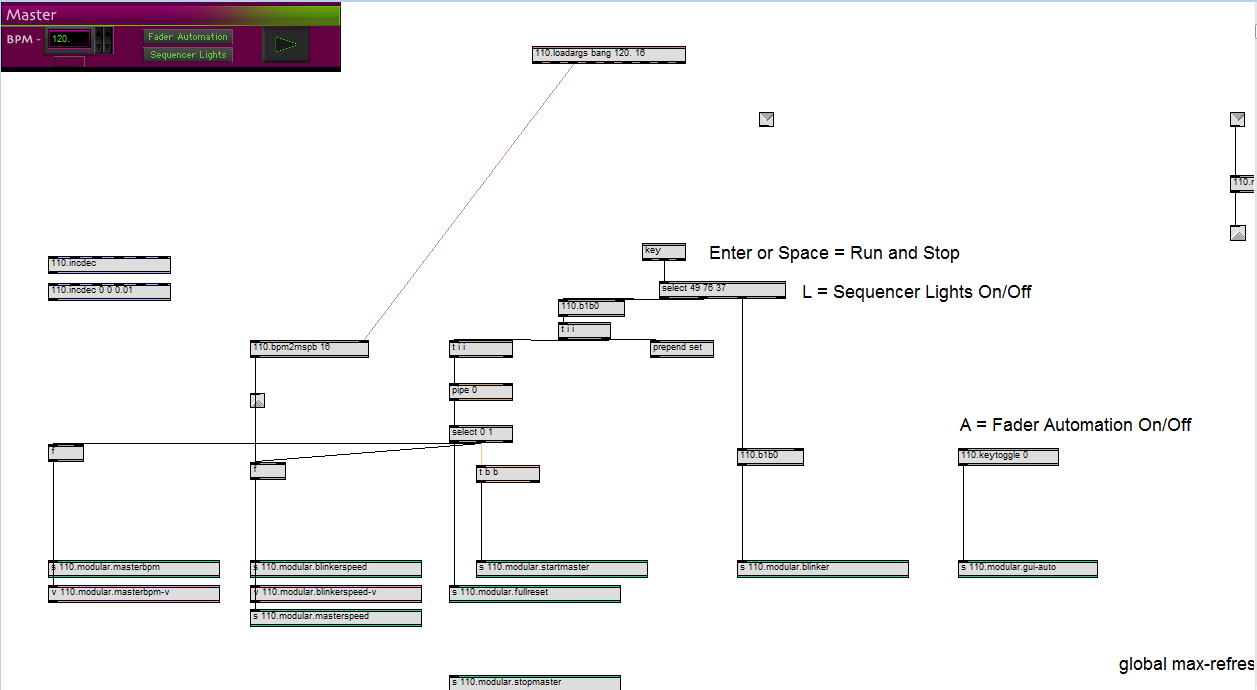

first of all i never mix sequencing at data rate with sequencing at audio rate, it is either...or for me.

and secondly, with one exception, all my "sequencing" releated projects dont offer pause/resume functionality - so to sync two metros they just would both receive a global (or sub-global) 0 and 1.

say i would have to make two clocks, one for beats and one for bars.

there would somewhere be a global BPM setting for the user, and then one metro can be set to "1/8" and the other one to "1/16".

the resulting time values are given to the metro objects in millisecond (fyi: in my old version of max there

 only milliseconds for most objects!) and to start both i would send "1" to both.

further need of "sychronisation" is not needed for such a system (unless you turn the high priority thread off and need to collect the data into lists later or something like that.)

if i want to add "SMPTE time" i would control an independent clock from the global start/stop.

if i need a "bar count" display/number output i would have to use a 1/1 or 1/2 or whatever metro and count bangs since last start.

in an audio rate sequencer (which i believe is the less good solution for complex sequencing) i calculate everything in samples (in float, then round or truncate)

in my first sequencing project i once had a hard time to decide what functions go into a global patch and how to organize it.

in 2008 i have given up on a seperate pause/resume and my "transport" in

 has been limited to the following basic functions:

- a start/stop toggle going to a [send] (which can be used by other objects or ignored)

- a BPM numberbox going to a [send] (which can be used by other objects or ignored)

the BPM value also goes to a global [var] for other parts of the patch to fetch it from there,

the BPM value also has its own outlet in case you need it this way elsewhere in the patch.

most metros and some del and pipe objects across the program now can receive these "master values" (running, not running, leght of 1/16 note in milliseconds)

(need muliple clocks? no problem, when you know how long a 1/16 note at 120 bpm is, you also know how long it would be at 130 BPM. or how long a 5/7 note would be at 33,7% slower than 120 BPM, you get the idea: it is all there by a simple rule of three.)

wherever required, the "stop" 0 from the global "transport" will also lead to reinitialization of everything which has to be initialized. (mostly counters)

so, to sum it up: the position of 0.0 in my "timeline" is the only one which is known everywhere, the rest runs "independent" from each other.

we are at stop/0 - or we run. with the global speed, with something releated to it, or with its own speed.



first of all i never mix sequencing at data rate with sequencing at audio rate, it is either...or for me.

and secondly, with one exception, all my "sequencing" releated projects dont offer pause/resume functionality - so to sync two metros they just would both receive a global (or sub-global) 0 and 1.

say i would have to make two clocks, one for beats and one for bars.

there would somewhere be a global BPM setting for the user, and then one metro can be set to "1/8" and the other one to "1/16".
the resulting time values are given to the metro objects  in millisecond  (fyi: in my old version of max there is only milliseconds for most objects!) and to start both i would send "1" to both.

further need of "sychronisation" is not needed for such a system (unless you turn the high priority thread off and need to collect the data into lists later or something like that.)

if i want to add "SMPTE time" i would control an independent clock from the global start/stop.

if i need a "bar count" display/number output i would have to use a 1/1 or 1/2 or whatever metro and count bangs since last start.

in an audio rate sequencer (which i believe is the less good solution for complex sequencing) i calculate everything in samples (in float, then round or truncate)

in my first sequencing project i once had a hard time to decide what functions go into a global patch and how to organize it.
in 2008 i have given up on a seperate pause/resume and my "transport" in 110.modular has been limited to the following basic functions:

 - a start/stop toggle going to a [send] (which can be used by other objects or ignored)

 - a BPM numberbox going to a [send] (which can be used by other objects or ignored)

the BPM value also goes to a global [var] for other parts of the patch to fetch it from there,

the BPM value also has its own outlet in case you need it this way elsewhere in the patch.

most metros and some del and pipe objects across the program now can receive these "master values" (running, not running, leght of 1/16 note in milliseconds)

(need muliple clocks? no problem, when you know how long a 1/16 note at 120 bpm is, you also know how long it would be at 130 BPM. or how long a 5/7 note would be at 33,7% slower than 120 BPM, you get the idea: it is all there by a simple rule of three.)

wherever required, the "stop" 0 from the global "transport" will also lead to reinitialization of everything which has to be initialized. (mostly counters)

so, to sum it up: the position of 0.0 in my "timeline" is the only one which is known everywhere, the rest runs "independent" from each other.

we are at stop/0 - or we run. with the global speed, with something releated to it, or with its own speed.


Thanks for the answer , are you still on max 4.5 ?

mostly 4.1, 4.6, and sometimes 6 & 7, but i consider everything which is not available for max 4 an "third party object" and ignore it. :)

source audio elaborated on [transport] for polyrythm/polymetrics here

https://cycling74.com/forums/help-with-polyrhythm-sequencer-quantized-to-transport-ticks

thats where you want to continue reading.


mostly 4.1, 4.6, and sometimes 6 & 7, but i consider everything which is not available for max 4 an "third party object" and ignore it. :)

source audio elaborated on [transport] for polyrythm/polymetrics here https://cycling74.com/forums/help-with-polyrhythm-sequencer-quantized-to-transport-ticks thats where you want to continue reading.


if you would be a newbie, i would now recommend you to build your own "metro" patch from more basic objects - and then change it to your liking. great training.

Sustainable transport can save you money, improve your health and reduce your environmental footprint.

Walk for short trips. Walking helps reduce body fat, lower blood pressure and is free. It may also take less time than you think. Studies have shown that most people will underestimate time related to car journeys and overestimate the time it will take to walk. The average walking pace is six kilometres per hour and if you walk you don’t need to find a car bay when you arrive.

Cycle instead. Switching a ten kilometre journey per week from your car to your bike will burn around 300 calories each way and can save over 300 kilograms of greenhouse gas emissions each year.Did you know?
Peak hour city trips up to ten kilometres in length are generally faster by bike than any other form of transport, door to door. A five to ten kilometre ride will take about 15 to 30 minutes.

Plan your journey. Use Transperth’s Journey Planner to check if there is convenient active transport option for a trip you take regularly.

Consider car-pooling. Car-pooling is a great way to share costs of fuel and parking and to break the monotony of your daily commute.

Check your ticket. Tickets for many major sporting and cultural events in Perth include free public transport to and from the event. Skip the hassle of traffic and parking.

Think ahead. Bundle a number of small errands into one trip to save time and fuel. Consider if a phone call, email or letter would do instead.

Have a local adventure. Next time you are planning an outing or holiday, consider having some fun close to home.

Make low emissions a priority. When purchasing a vehicle use the Australian Government's Green Vehicle Guide  to compare the fuel efficiency, greenhouse and safety ratings of the vehicles you are considering.

Enjoy the sunshine. We have an ideal climate for active transport, with on average 3,200 hours of sunlight per year – get out there and enjoy it.

Green Driving. If you can’t avoid using a car reduce your impact by employing these green driving techniques:

Regularly check your tyre pressure. Under-inflated tyres can increase fuel consumption by three per cent and take 10,000 kilometres off the tyre's life.

Service your car regularly. A well-tuned car can use 15 per cent less fuel.

Slow down. Driving at 90 kilometres per hour uses 25 per cent less fuel than travelling at 110 kilometres per hour.

Don't idle. If you are stopping for more than ten seconds, turn your car off.

Drive smoothly. Stopping and starting uses more fuel.

Open your window rather than using your air conditioner when travelling at under 70 kilometres per hour. Air conditioning can increase fuel consumption by ten per cent. At speeds above this, the drag caused by having your window down will use more fuel than the air conditioning.

Screw on your fuel cap firmly to avoid evaporation and leaks when turning corners.

Travel light. Don't use your car to store heavy equipment for long periods of time, an extra 50 kilograms of weight increases fuel consumption by two per cent.

Remove roof racks and anything fixed to the outside of your car when they are not in use to minimise wind resistance.

"i consider everything which is not available for max 4 an "third party object" and ignore it. :)"

I am almost as restrictive, only sometimes one gets forced to use some of this new stuff.

But I would never use translate object for example, just dislike it.

My worst one is that loudspeaker ezdac gibberish

Ha, ha Roman you nailed it -
"i consider everything which is not available for max 4 an "third party object" and ignore it. :)"
I am almost as restrictive, only sometimes one gets forced to use some of this new stuff.
But I would never use translate object for example, just dislike it.
My worst one is that loudspeaker ezdac gibberish


it is both at the same time: my personal filterbubble (why should i use soundfileplayer and transport when i a kind of invented that before c74 had it? or translate or zl.stream - i also have my own) - and at the same time also a philosophy / method (which i could substantiate on request)

to be honest... what i also do is to add 4.6 vanilla externals to MacOS9 where possible (regexp, deferlow, pak(!!!), some 5-10 more)

and of course i am sometimes jealous about the bugfixes in lcd, about the new [cycle] which takes lists now, or mpe & co, things which i could really need but have locked myself out with my downwards compatibilty disorder (not so much about [jit.weirdparticleexplosion] for GL4 and all those sissie objects)

i am cuuuurious for the day when stefan t. manages to get the pace interlok driver installed under 10.15, so that the use of m4 is secured for another year (and possibly hardware generation) more.


it is both at the same time: my personal filterbubble (why should i use soundfileplayer and transport when i a kind of invented that before c74 had it? or translate or zl.stream - i also have my own) - and at the same time also a philosophy / method (which i could substantiate on request)

to be honest... what i also do is to add 4.6 vanilla externals to MacOS9 where possible (regexp, deferlow, pak(!!!), some 5-10 more)

and of course i am sometimes jealous about the bugfixes in lcd, about the new  [cycle] which takes lists now, or mpe & co, things which i could really need but have locked myself out with my  downwards compatibilty disorder (not so much about [jit.weirdparticleexplosion] for GL4 and all those sissie objects)

i am cuuuurious for the day when stefan t. manages to get the pace interlok driver installed under 10.15, so that the use of m4 is secured for another year (and possibly hardware generation) more.


Question about transport , and stopping toggle while transport is playing
