Math to Expr – for the expr experts


tsiwt
Jul 31 2010 | 9:12 pm

I am trying to learn jit.expr Ive gone over the tutorials etc. it might be helpfull seeing how someone transfers a mathematical equation into a expr shape. That I think is the best way to learn.

so, if anyone wants to help here is an equation

x = 2 sin(3 u) / (2 + cos(v))
y = 2 (sin(u) + 2 sin(2 u)) / (2 + cos(v + 2 pi / 3))

z = (cos(u) – 2 cos(2 u)) (2 + cos(v)) (2 + cos(v + 2 pi / 3)) / 4

-pi < = u <= pi
-pi < = v <= p

here is the shape and link where I got the equation

http://local.wasp.uwa.edu.au/~pbourke/geometry/tranguloid/

if anyone is up to it , I think this could help a lot of people that are searching for generating expr shapes.

thanks


seejayjames
Jul 31 2010 | 11:00 pm

my attempt, I don’t know if it’s right. Not an expr expert (say that 10 times fast) and don’t know jit.expr that well. But I think all the bits are accounted for in the three [exprs].

If you want individual control over the u and v in each expression, you can add $f3, $f4, etc., up to $f9. As it is, there’s one u and v float control box for each expr, plus a master one which does all 3 at once. All are restricted to -pi < = value <= pi.

Now I want to hook it up to GL and see if it works!


----------begin_max5_patcher----------
1281.3oc0Z00bahCE8Y2Y5+AML6CIs1TckDRnNsOr+K1ca6rCwljxN1fGCNq
a6r+2W8A9iXavjDajbdHXjDhiN5n68pq3Wu8MCBtqXUZY.5inufFL3WpRFXJ
SWxf0ELHXVxpwSSJMMLXbwrYo4UACqqrJcUkohG2Tz7jpweOK+g+dQ53JauK
wrP7PDHYgRYDAKGhXzvXo5uX0OIgXz2V+34KmkkOMsx79f0kdeQdUdxrTy65
2WjkLMXmGnXY05m.ut3rIl1Vb2+LhRC1seJy9ooenPHlKDRoot+6suQeUcY3
qmMV1FaHDXmxFr9lM9q1XiXpzorQzEhMlkVVl7P5grANjQ43HnUIh98ODQUW
HwwrHhhfrpFJtQBg7rID3XDBeSissr5GySsnJHX6adWxh.gwPDlJdwjUd5+p
d2GxUUn6P22p5gGoYEhPXHmnPQj5N7YTzPNFGIZlitKI+gfgnf6mVjT0.gAJ
U8YmqRWMeA5lwEk27a2C2hFgHgn2gz2a9gtvaUW028djsYjCKQ8KE3jLHlop
7CHVXWzoXyr.KlGRvXLPZcN3LoSie15zWEsqlOUfpcsH2nEY3Mr.PrKZouJA
op4YyTuaUMing.ChjOCspba+jrZc+rW2b.CZUuCqkyMrrWMpjRVj7BxoBJwC
4TF1e4zF8BSPyyTKnosR2Xqy3Hi4TA0v83KsKXRPuYjTMELQ6YVYjqMdfShs
7f9+wjvysSkiZPC6aFz3Vq60pAt7rqFN1ZKxV6UyWjVpjxIUYE46JRAKRnF4
It9eaA0KZg2EQs8NEvnTJscR1t2HhkjwmPqcdbdRZw44EKvkNH3HlYVorO0a
hSq2LSMfHx+0a09fZWvYBSwtcBdrwuJtWDcb+TzYsiP6UQWTf6TOurb3nCt2
rOctS1mNg3U4vgFQbJaz6YzpUsgxDhSYC3Tlv2.P5F.dncbePWwc6hL7oHxC
wmy3w+rUqUDvkDIv56rJNBGxi3h3VSqHErt5Td756zJBQWSoUjwD1zJJ6yzJ
BbuMshlTHdSYVtM4hu2lbQ88aStnNcgMmKwtnKw1r3J4mHHryjjT3aa3lwhs
Y6h3SY6BhulyfHEX9HmdUmUVfaCmRYkDztTE9AmR5.m1PbMqGQR7lQzYZi98
w7Ag6iSGzW9zQ8.xGmMZLdz+n0ULzHmFOJz+mxMPgcys1QTsVu8TRuGLp7ZJ
VTfC1XQi6yXQE9cnn5HOoaOV6Or+wZ2AcG1FkIkER0Y.k1CQbx8s.NAd8wqB
9jminq4XiHwdHixtBOu5UnOiH1E5nk1k30qve71a+Z9OLUa1R5RyFRs6FU0z
m1VSU1S9V+XeM+mpGz7Yxrz7QxX+BYLO1tufl5A8mDitWFoJ3SeFsT+u4Yat
+Qy8aFLSyxSGWrL2LhDssKE75s7pDJw1bKioW5z800yc2hBynY+uWTyXQWwd
ywkEKWLdsRp1gBB1NbljVVkkah6amFweZi9d1jIo4OA9yxlLuHKupFGnu0rv
6YAMbWfFt2gFyegFuKPS5jIT8NAOM1zeYTGm2.2CNcRW7VvE4FrQ6B1zeaVd
K3.oOybNAaz3NsV0MdF1WL0.3hchAXpv2AGzIv0+Sq6a4uAvIbByAcZZUedZ
tvyZmXNvQLG22AGzIv4fEDcxNGIxILGoSdHHR2.tNsZk3FivjNsff3lED6ql
Z.btYyMPmzbfa.WmHtW+jpt.0k+Gq5JLC
-----------end_max5_patcher-----------

tsiwt
Aug 01 2010 | 2:39 am

seejayjames thanks, very interesting how you can change the expr expression by adding different number variables, thanks to your patch I understand how that works much better.

but I also want to hook it up to the gl. that was my initial problem, getting the math equation to fit the particular jitter matrix language
by using norm 0,1 snorm 0,1 in… etc

but Like I said, thank you, your patch is helpful.

,,,,, can anyone help bringing this to the gl world?


tsiwt
Aug 01 2010 | 2:51 am

I managed to get a shape out of this equation , wish is a lot easier.. (don’t know if its correct)
http://local.wasp.uwa.edu.au/~pbourke/geometry/borg

— Pasted Max Patch, click to expand. —

Roman Thilenius
Aug 01 2010 | 7:25 am

i dont use [jit.expr] but [expr] cant do much more than what is noted in the helpfile.

and you have a lot of freedom with the syntax, no particular style is required.^^

z = (cos(u) – 2 cos(2 u)) (2 + cos(v)) (2 + cos(v + 2 pi / 3)) / 4

just reads

[expr (cos($f1) – 2 (cos(2($f1)))) (2 + cos($f2)) (2 + cos(($f2) + 6.28318530718 / 3)) / 4]

-110


seejayjames
Aug 01 2010 | 4:01 pm

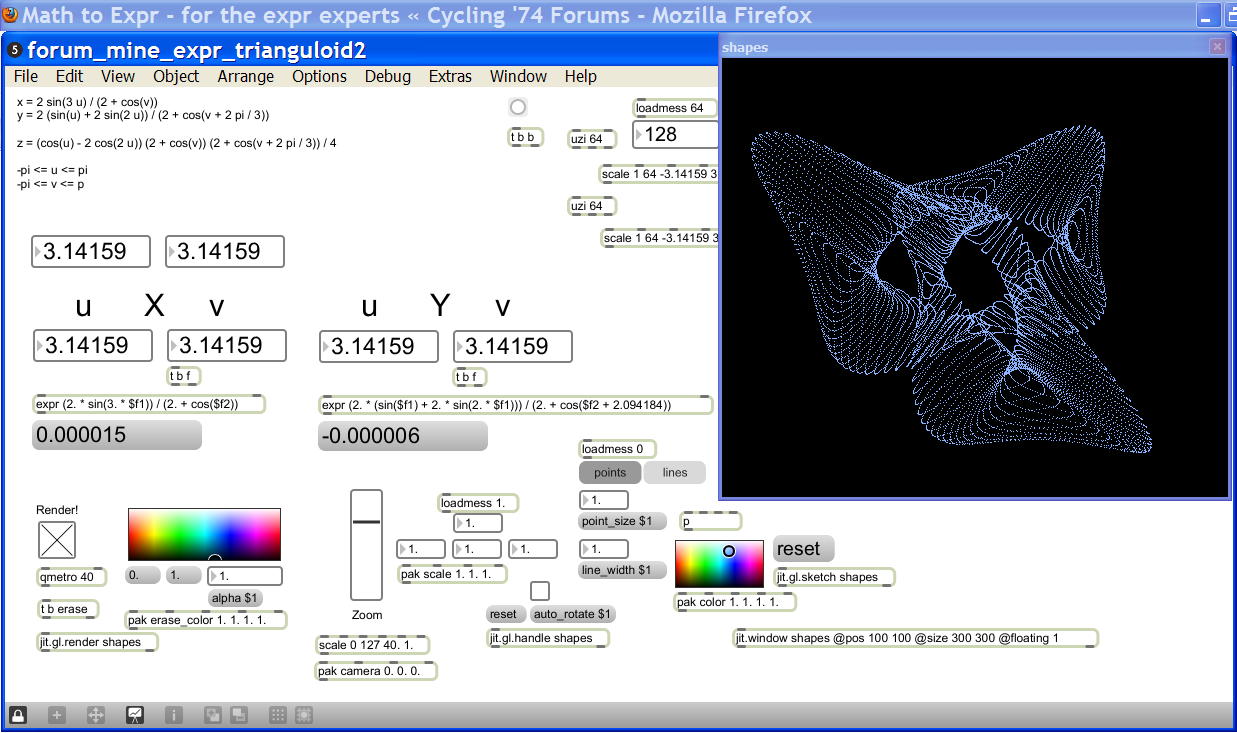

well, sort of working :)

a rough attempt, using two [uzis] to make all the points manually. surely there are much better (and faster!) ways, my computer bogs down pretty soon with higher numbers of points. I imagine putting all the values into a matrix and using jit.gl.mesh would be better, or straight-up jit.expr would probably be best.

Though there are some other fun controls in there, have a go…

-- Pasted Max  Patch, click to expand. --





 [attachment=137898,893]


Attachments:
  1. scr_shot_trianguloid.PNG

tsiwt
Aug 01 2010 | 8:24 pm

very cool!! seejayjames, ill try and pass it to a mesh, and post it if I get it.


tsiwt
Aug 01 2010 | 10:48 pm

grr, Still in need of jit.expr experts to help with this one.

I manage to get some type of shape (nothing like the shape of the math formula)

I tried translating the x and y of seeJames patch into a jit.expr but did not get anything to work so I added my jit.expr interpreation of the x and y to a Sphere and then got some type of shape….

— Pasted Max Patch, click to expand. —

Joshua Kit Clayton
Aug 01 2010 | 11:32 pm

I don’t have time to dig into this completely, however, I believe that you can simply replace u with (snorm[0]*PI), and v with (snorm[1]*PI) for u,v in the range of -pi to pi.

This is essentially what happens in the jsglsurface-example.maxpat and associated JS. Find it in:

examples/jitter-examples/javascript/render/jsglsurface-example.maxpat

It demonstrates the translation of a few equations from Paul Bourke’s website.


Joshua Kit Clayton
Aug 01 2010 | 11:35 pm

Also in your examples, you need to put quotes around each plane’s expression if there are any spaces within the expression.

Please take some time with Andrew Benson’s great expr tutorial:

http://cycling74.com/2010/03/08/demystifying-expressions-in-jitter/


tsiwt
Aug 02 2010 | 12:07 am

Joshua thank you , that is the info i’ve been needing. :)


tsiwt
Aug 02 2010 | 5:10 am

I don’t know what Iam doing wrong, I tried to make the mathematical shape and this is what comes out …. it is better than last one but still lost.

— Pasted Max Patch, click to expand. —

metamax
Nov 26 2013 | 11:35 pm

I know it’s been a while since anyone posted on this thread, but it’s all new to me, so I thought I’d try and figure it out.

It looks like you forgot a single multiplication operator at the beginning of the expression for the second plane. And it’s not clear what those additional snorm functions are between each of the quoted expressions. They don’t appear to be necessary and they keep the whole thing from working properly.

Here’s what I ended up with…

— Pasted Max Patch, click to expand. —
