App Store/Test Flight for MaxMSP 8 apps Chromium Embedded Framework structure problems

MaxMSPbugs/issuesadvanced
richard barber's icon

richard barber

I've been trying to get a MaxMSP app into App Store. I have been successful only in having it submitted to Test Flight for beta distribution. The main error message I had to get past was related to the improper structure of the Chromium Embedded Framework.

Here's the gist of my script:

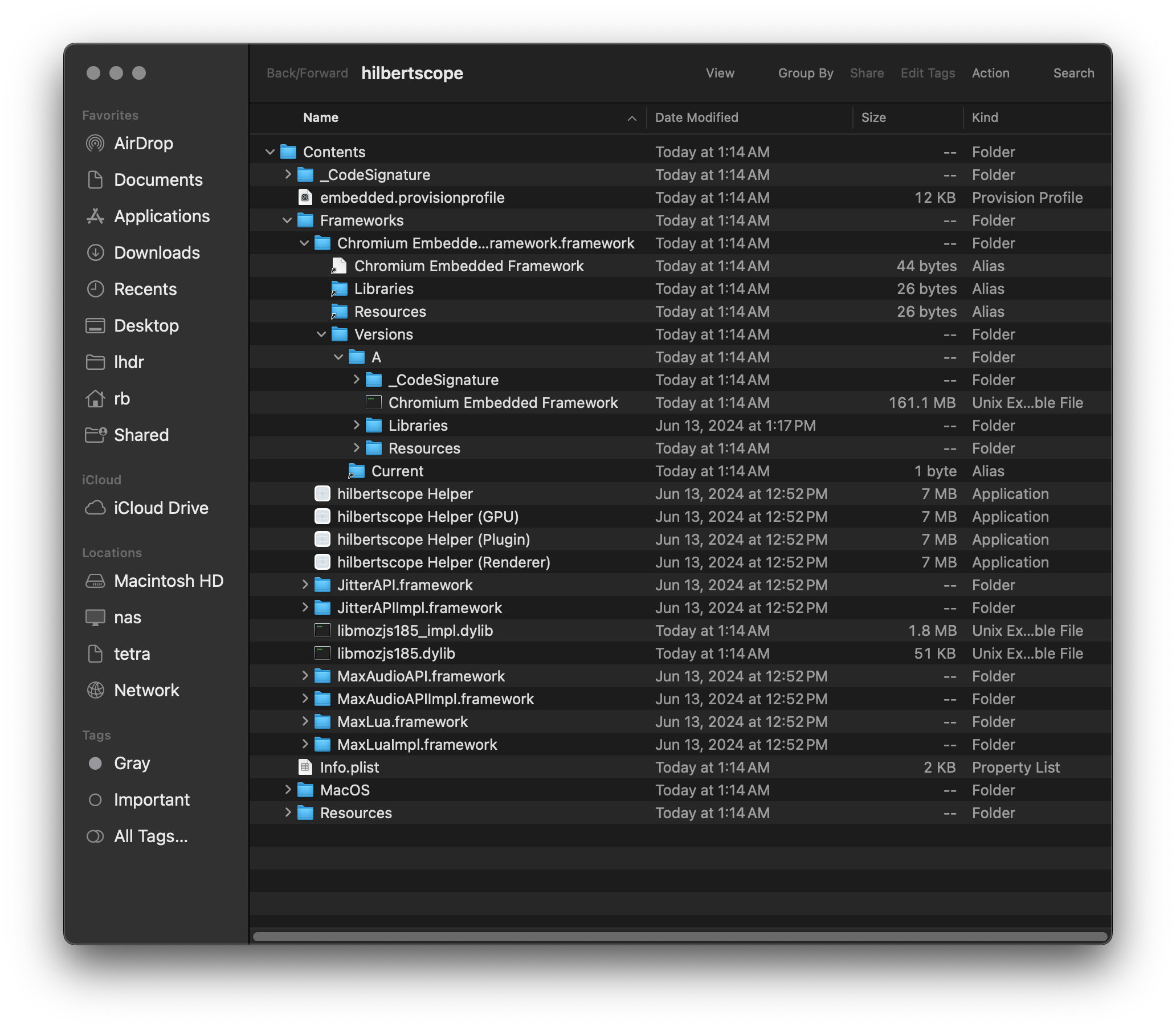

Framework bundle structure allowable for Test Flight

This framework bundle structure for Chromium Embedded Framework is ok for Test Flight, but it the actual framework gets confused beyond fixes with install_name_tool and causes a crash at launch:

Crashed Thread:        16  ThreadPoolSingleThreadForegroundBlocking0

Exception Type:        EXC_BREAKPOINT (SIGTRAP)
Exception Codes:       0x0000000000000001, 0x0000000111e77ce8

Termination Reason:    Namespace SIGNAL, Code 5 Trace/BPT trap: 5
Terminating Process:   exc handler [6676]

...

Thread 16 Crashed:: ThreadPoolSingleThreadForegroundBlocking0
0   Chromium Embedded Framework   	       0x111e77ce8 ChromeAppModeStart_v7 + 5927116
1   Chromium Embedded Framework   	       0x111f29ecc ChromeAppModeStart_v7 + 6656688
2   Chromium Embedded Framework   	       0x111f1e3e0 ChromeAppModeStart_v7 + 6608836
3   Chromium Embedded Framework   	       0x111f1e0c8 ChromeAppModeStart_v7 + 6608044
4   Chromium Embedded Framework   	       0x111f24598 ChromeAppModeStart_v7 + 6633852
5   Chromium Embedded Framework   	       0x110de4e30 cef_time_from_basetime + 34470208
6   Chromium Embedded Framework   	       0x1108ca17c cef_time_from_basetime + 29117580
7   Chromium Embedded Framework   	       0x111ebf77c ChromeAppModeStart_v7 + 6220640
8   Chromium Embedded Framework   	       0x111edff80 ChromeAppModeStart_v7 + 6353764
9   Chromium Embedded Framework   	       0x111ee0474 ChromeAppModeStart_v7 + 6355032
10  Chromium Embedded Framework   	       0x111edf7e0 ChromeAppModeStart_v7 + 6351812
11  Chromium Embedded Framework   	       0x111eedde0 ChromeAppModeStart_v7 + 6410692
12  Chromium Embedded Framework   	       0x111eed9d4 ChromeAppModeStart_v7 + 6409656
13  Chromium Embedded Framework   	       0x111eed8c4 ChromeAppModeStart_v7 + 6409384
14  Chromium Embedded Framework   	       0x111f09528 ChromeAppModeStart_v7 + 6523148
15  libsystem_pthread.dylib       	       0x19a7c62e4 _pthread_start + 136
16  libsystem_pthread.dylib       	       0x19a7c10fc thread_start + 8

The crash is obtained with both the Test Flight beta distribution and the local Developer ID-signed versions. The original app generated by MaxMSP 8 works fine.

Thanks
