Konstantin N

Facing problem with color interpritation on Mac and Pc.

Same patch is showing different results for same basic jpg file.

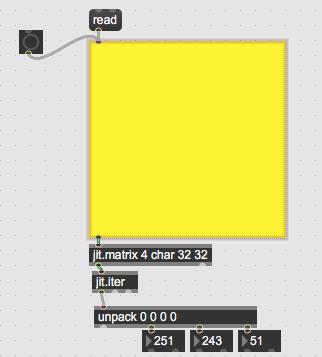

This file was saved as JPEG file without color profile. And this is result of "jit.matrix 4 char 32 32" -> "jit.iter" for same picture on mac:


as you can see, R/G/B information is wrong, 255 -> 251, 242 -> 243, 0 -> 51, no matter what arguments in jit.matrix are.

And the same patch shows correct information on Windows.

It seems to me, that Mac version uses some color profile or LUT settings, but I don't know how to avoid it.

Hello everyone!
Facing problem with color interpritation on Mac and Pc.
Same patch is showing different results for same basic jpg file.
For example:
this color information is in Photoshop:

as you can see, R/G/B information is wrong, 255 -> 251, 242 -> 243, 0 -> 51, no matter what arguments in jit.matrix are.
And the same patch shows correct information on Windows.
It seems to me, that Mac version uses some color profile or LUT settings, but I don't know how to avoid it.
Does anyone knows how to fix it?
Please help!


Hello everyone!
Facing problem with color interpritation on Mac and Pc.
Same patch is showing different results for same basic jpg file.
For

color-profileslut-seems-different-in-jit-matrix-for-mac-and-pc

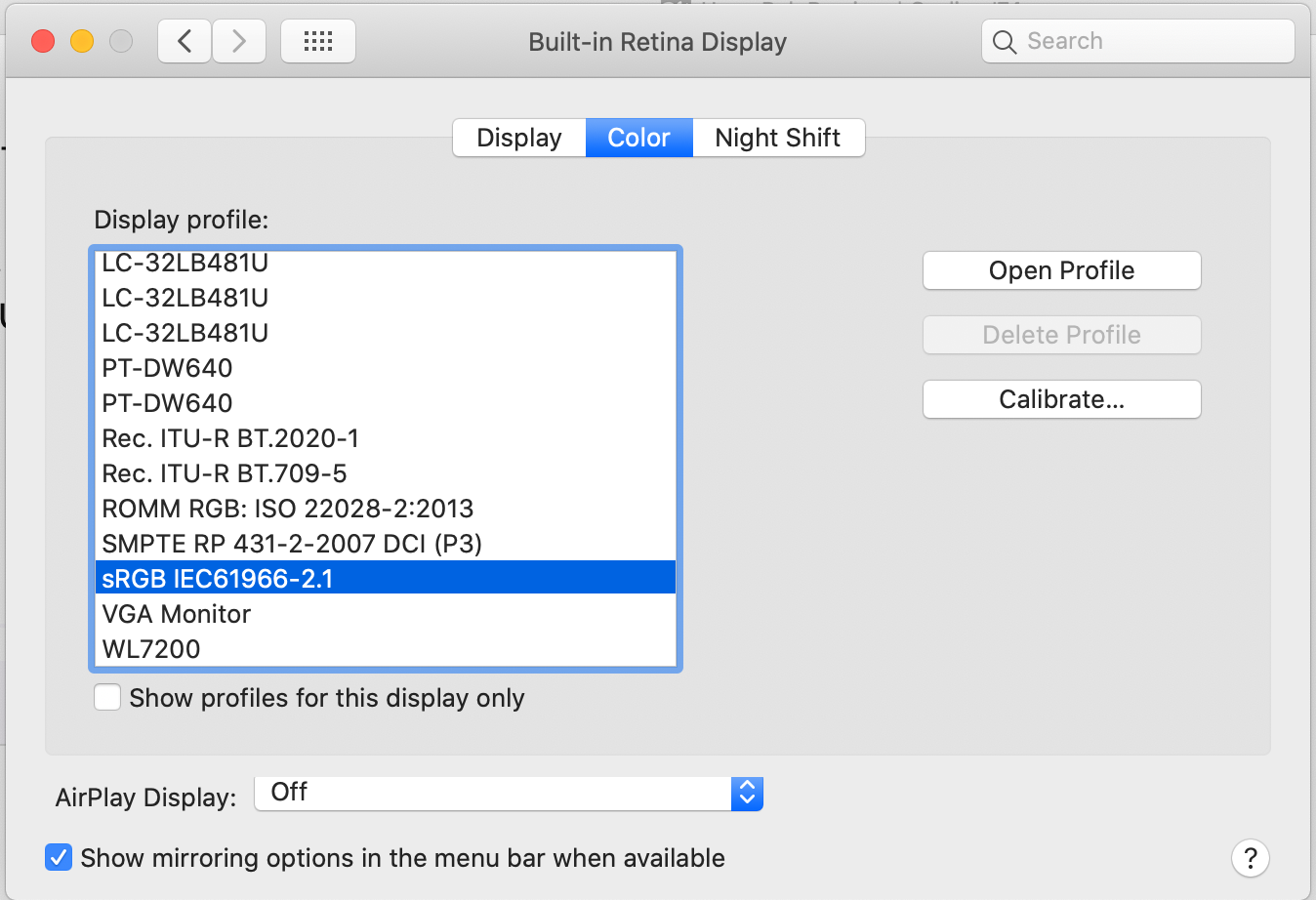

likely due to your Display Profile (System Preferences -> Displays -> Color)

setting it to sRGB IEC(bunch of numbers) should "fix" this. We are investigating alternatives t the current behavior for jitter matrices, but the current behavior is actually "correct" although probably unexpected.

Screen Shot 2021-05-17 at 10.21.47 AM.png

setting it to sRGB IEC(bunch of numbers) should "fix" this.  We are investigating alternatives t the current behavior for jitter matrices, but the current behavior is actually "correct" although probably unexpected.

I figured out that using BMP images fix that behavior, I'm lucky that I didn't need video for that setup.

Wow thanks!
I figured out that using BMP images fix that behavior,  I'm lucky that I didn't need video for that setup.

Color profiles/LUT seems different in jit.matrix for Mac and Pc
