order of execution

lvdw's icon

Probably a known thing / some historical issue. In any case, I'd like to learn more about this behaviour:

Max Patch
Copy patch and select New From Clipboard in Max.

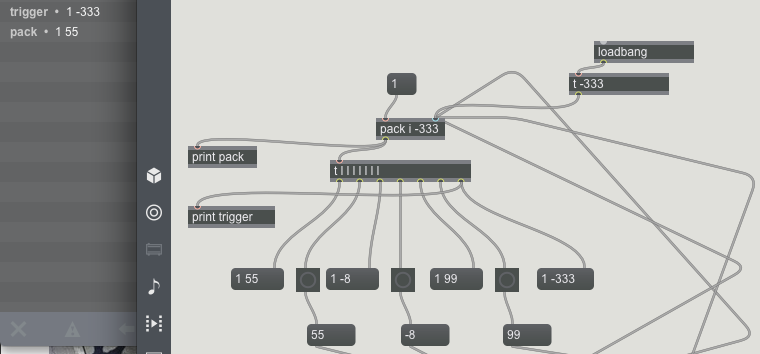

Why doesn't it say 1 -333 in all message boxes after clicking the upper message box?
To be clear: I do understand right to left order and all that. Posting it in the Facebook Max/MSP group didn't give me a satisfying answer.

Thank you.

Roman Thilenius's icon

it shows -333 for the very first time in the leftmost messagebox, but you cant see it because it is overwritten with 99 within less than 1 millisecond.

after that the -333 is no longer present in the pack object. or from where do you expect it to come from, after you willingly replaced it? :)

Roman Thilenius's icon

time for you to dive into the debugger menu!

Andrew Pask's icon

Yes it is an historical behaviour of Max which will not get changed.

The pack object uses a particular method to write its output ( outlet_list)

What you are seeing here is the contents of the output getting rewritten while outlet_list is in use.

( with thanks to Mikey Z )

Max Patch
Copy patch and select New From Clipboard in Max.

mzed's icon

Yeah, I saw this one on facebook.

It is a counter-intuitive behaviour; it breaks the illusion that data is flowing down these patch cords. If Max was a new product, I don't think it would be made like this. But, I understand and agree that it shouldn't change. First, I've never ever seen this in 25 years of patching. Second, somebody might be using this as a feature.

Also, passing around pointers is more efficient than passing around values. I can see why Max was written this way in the 80's. An implementation with a more typical behaviour would involve making a copy of the list that pack would output, and passing around a pointer to that copy. Skipping that copy step is a bit of efficiency that was probably meaningful in the '80s.

FWIW, my favourite Max code smell, deferlow, gives the more expected result:

Max Patch
Copy patch and select New From Clipboard in Max.

mzed's icon

Roman, *you* should follow this through in the debugger. You'll see there's only one message per output.

lvdw's icon

Thanks everyone, I guess that clears it all up. Very nice. (Actually, I think I must have encountered this before, either with my own patching or in someone else's thread or topic or story. But maybe it's some deja vu.)

Raises one more question: are there more objects that behave like this? I.e., where you can't just assume the right-to-left order functions as you would expect?

mzed's icon

I suspect that any object that uses the same outlet_list() method as pack and trigger could be induced to behave like this.

It seems like zl reg behaves differently than pack:

Max Patch
Copy patch and select New From Clipboard in Max.

mzed's icon

join is also exempt:

Max Patch
Copy patch and select New From Clipboard in Max.

I prefer join to my previous, deferlow, workaround. In fact, I might upgrade my teaching to prefer join over pack/pak

lvdw's icon

More funny stuff?

Max Patch
Copy patch and select New From Clipboard in Max.

I would expect the print objects to first output 33 after 1 sec and another second later a list (22 11). And why not? After all, the timeframe argument of thresh prevents a stack overflow. And: adding a [pipe 0] solves it:

Max Patch
Copy patch and select New From Clipboard in Max.

How old is thresh? Never used it for some real stuff, just toying around with some weird objects to see if there's more...

Roman Thilenius's icon

@mzed:
there must be something i am not seeing. in the given example i am getting -333 for the trigger, and what the pack does (e3specially to print) seems to be irrelevant. because from the viewpoint of the trigger this pack patch behaves just like a number patch would, too.

pack trigger order

Roman Thilenius's icon

oh right, i ignored the first three outlets of the trigger.
